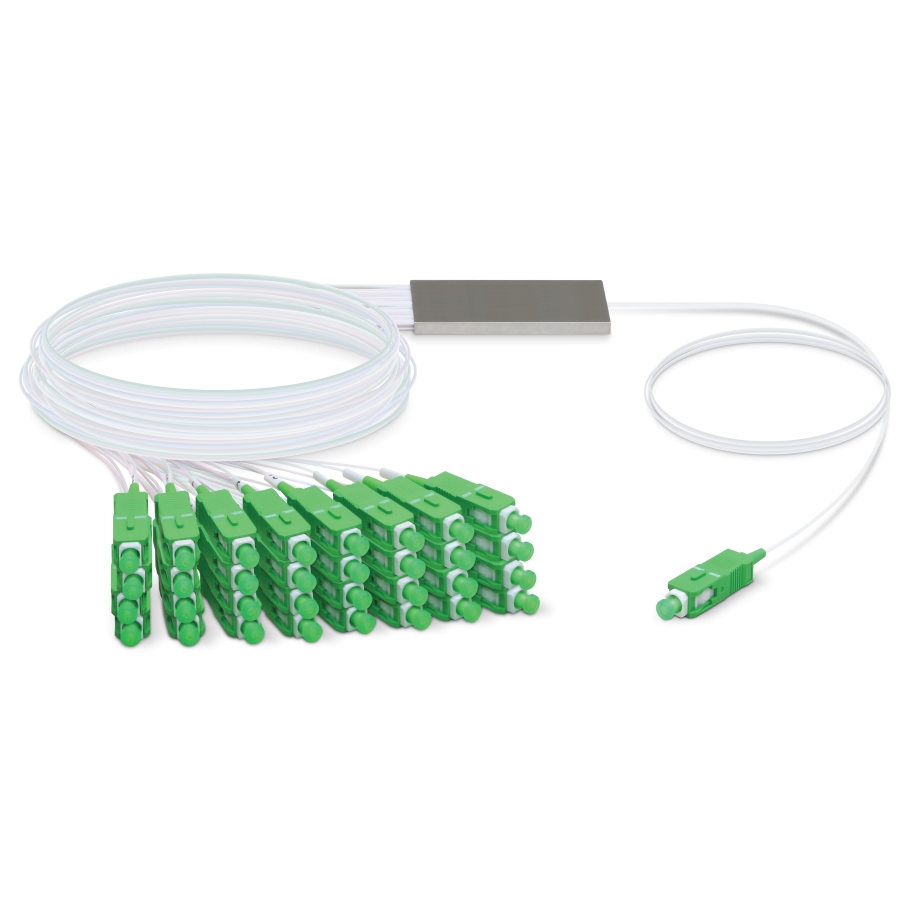

Ubiquiti Fiber Splitter 1:32

Ubiquiti Elite Distributor
In stock
?
38.96
In stock
?
38.96

Brand

Ubiquiti

Manufacturer part number

UF-SPLITTER-32

Warranty
?

12 months

EAN

0817882026833

Detailed description

The UFiber splitter carries data from a UFiber OLT’s long-haul cable and shares it with multiple UFiber ONUs

The UFiber Splitter is engineered based on fiber optic splitting technology, which allows a single optical signal to be split into multiple signals, facilitating the distribution of data to multiple endpoints within a network. This enables cost-effective and efficient utilization of fiber optic infrastructure, making it ideal for applications where signal distribution to multiple locations is required.You can connect up to 128 UF-Nano devices per one OLT GPON Port.
Features:
  • mini-module type, steel tube
  • G.657A1 fiber
  • input/output 0.9 mm
  • 1.5 meter cable length from total length of 4 meters
  • terminated with SC/APC connector
The UFiber Splitter is designed to provide high splitting ratios, allowing the optical signal to be divided into multiple outputs with minimal signal loss. Splitting ratio available in 4, 8, 16 and 32 outputs, this splitter efficiently divides the incoming optical signal into four separate signals, ensuring reliable data transmission to multiple endpoints simultaneously.
Featuring a compact and space-efficient design, the UFiber Splitter is suitable for deployment in various networking environments, including data centers, telecommunications facilities, enterprise networks, and fiber-to-the-home (FTTH) installations. Its compact form factor enables easy integration into existing network infrastructures, optimizing space utilization and minimizing installation footprint.
Engineered with high-quality optical components and precision manufacturing techniques, the UFiber Splitter ensures minimal signal loss and high reliability in signal transmission. By utilizing advanced optical fiber technologies, this splitter minimizes insertion loss and ensures consistent signal quality across all output ports, guaranteeing reliable and efficient data distribution within the network. Supporting a wide wavelength bandwidth from 1260 to 1650 nm, the splitter offers compatibility with various optical signals and networking equipment. It boasts a return loss of 50 dB across all ports and a directivity of 55 dB, ensuring optimal signal reflection and minimal signal leakage for enhanced signal integrity and network performance.
The UFiber Splitter is designed to operate within a wide temperature range, ensuring reliable performance even in challenging environmental conditions. With an operating temperature range typically spanning from -40°C to 85°C (-40°F to 185°F), this splitter is suitable for deployment in both indoor and outdoor environments, providing flexibility and versatility in network installations.
Designed to be compatible with a wide range of fiber optic networking equipment, the UFiber Splitter seamlessly integrates into existing network architectures, allowing for easy deployment and scalability. Whether used in conjunction with Ubiquiti UFiber products or third-party networking equipment, this splitter ensures interoperability and compatibility, enabling seamless integration into diverse network environments.

Compare with similar products


Input
1 x SC/APC
1 x SC/APC
1 x SC/APC
1 x SC/APC
Outputs
32 x SC/APC
4 x SC/APC
8 x SC/APC
16 x SC/APC
Insertion loss with connectors
17.0 dB
7.4 dB
10.5 dB
13.7 dB
Uniformity loss
1.5 dB
0.6 dB
0.8 dB
1.2 dB
Polarization dependent loss
0.3 dB
0.3 dB
0.3 dB
0.3 dB
Wavelength bandwidth
1260-1650 nm
1260-1650 nm
1260-1650 nm
1260-1650 nm
Return loss (All ports)
50 dB
50 dB
50 dB
50 dB
Directivity
55 dB
55 dB
55 dB
55 dB
Fiber type
G657A1
G657A1
G657A1
G657A1
Ambient operating temperature
-40 to 85° C
-40 to 85° C
-40 to 85° C
-40 to 85° C
Total length
4.08 m
4.06 m
4.06 m
4.06 m
Weight
160 g
58 g
62 g
110 g

Input1 x SC/APC
1 x SC/APC
1 x SC/APC
1 x SC/APC
Outputs32 x SC/APC
4 x SC/APC
8 x SC/APC
16 x SC/APC
Insertion loss with connectors17.0 dB
7.4 dB
10.5 dB
13.7 dB
Uniformity loss1.5 dB
0.6 dB
0.8 dB
1.2 dB
Polarization dependent loss0.3 dB
0.3 dB
0.3 dB
0.3 dB
Wavelength bandwidth1260-1650 nm
1260-1650 nm
1260-1650 nm
1260-1650 nm
Return loss (All ports)50 dB
50 dB
50 dB
50 dB
Directivity55 dB
55 dB
55 dB
55 dB
Fiber typeG657A1
G657A1
G657A1
G657A1
Ambient operating temperature-40 to 85° C
-40 to 85° C
-40 to 85° C
-40 to 85° C
Total length4.08 m
4.06 m
4.06 m
4.06 m
Weight160 g
58 g
62 g
110 g
