StarterHorn 30° USMA Sector Antenna | 30° Horn Beam, Zero Side Lobes, 92% Efficiency

Product name

StarterHorn 30° USMA Sector Antenna

Warranty

?
12 months

Manufacturer part number

STH-30-USMA

EAN

0708747439953
  • 30° symmetrical horn beam with circular pattern and 30° azimuth/elevation width at -6 dB for focused sector coverage and cleaner wireless links.
  • Zero side lobes and 92% beam efficiency help reduce interference in crowded 5 GHz networks, improving spectrum use and throughput.
  • Stable performance across U-NII-1 to U-NII-3 bands keeps beam shape and gain consistent when changing channels—ideal for WISP deployments.
  • RP-SMA interface supports easy connection to radios with coaxial output, plus a waveguide port for Ubiquiti IsoStation and PrismStation compatibility.
  • Lightweight aluminium build with stainless-steel M6 nuts offers a compact, durable antenna solution for reliable outdoor sector installations.
-24% 90.38 €
69.00 €
out of stock
?
-24% 90.38 €
69.00 €
out of stock
?

Detailed description

Symmetrical Horn Antenna

The RF elements StarterHorn™ 30° USMA is a symmetrical horn antenna designed for wireless installations with high-density access point clusters and closely located radio equipment. Operating across the 5150–5950 MHz frequency range, it combines 18 dBi gain with a symmetrical radiation pattern that has no side lobes. This design provides effective noise rejection in dense co-location environments, where controlling the direction of wireless coverage is particularly important. The antenna maintains matching horizontal and vertical beam characteristics, with a 30° beam width at -6 dB in both planes. Its symmetrical coverage pattern helps concentrate the antenna's radiation within the intended sector rather than distributing it through unwanted side lobes.
With 92% beam efficiency and a 33 dB front-to-back ratio, the StarterHorn™ 30° USMA offers a focused radiation pattern with strong rejection of signals from behind the antenna. These characteristics complement its symmetrical design, making it particularly relevant for installations where several antennas operate in close proximity. The antenna combines this directional performance with a cost-effective construction, providing an option for building dense wireless deployments without relying on a conventional antenna pattern with side lobes.

Radio and Installation Compatibility

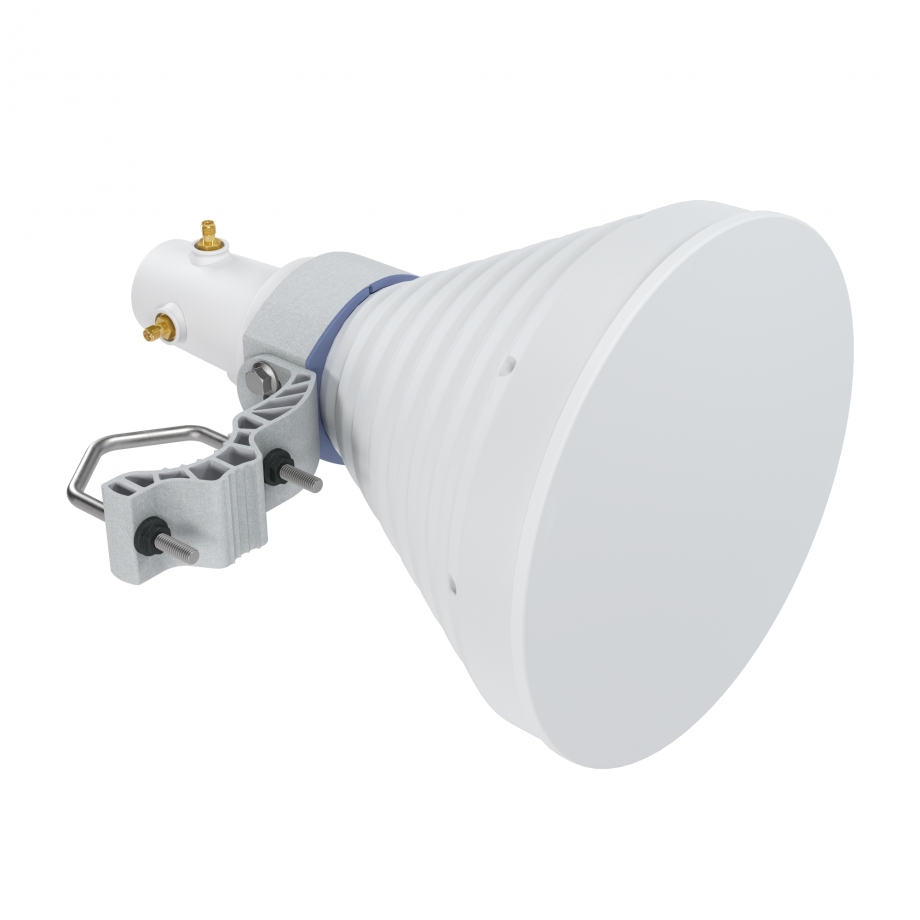

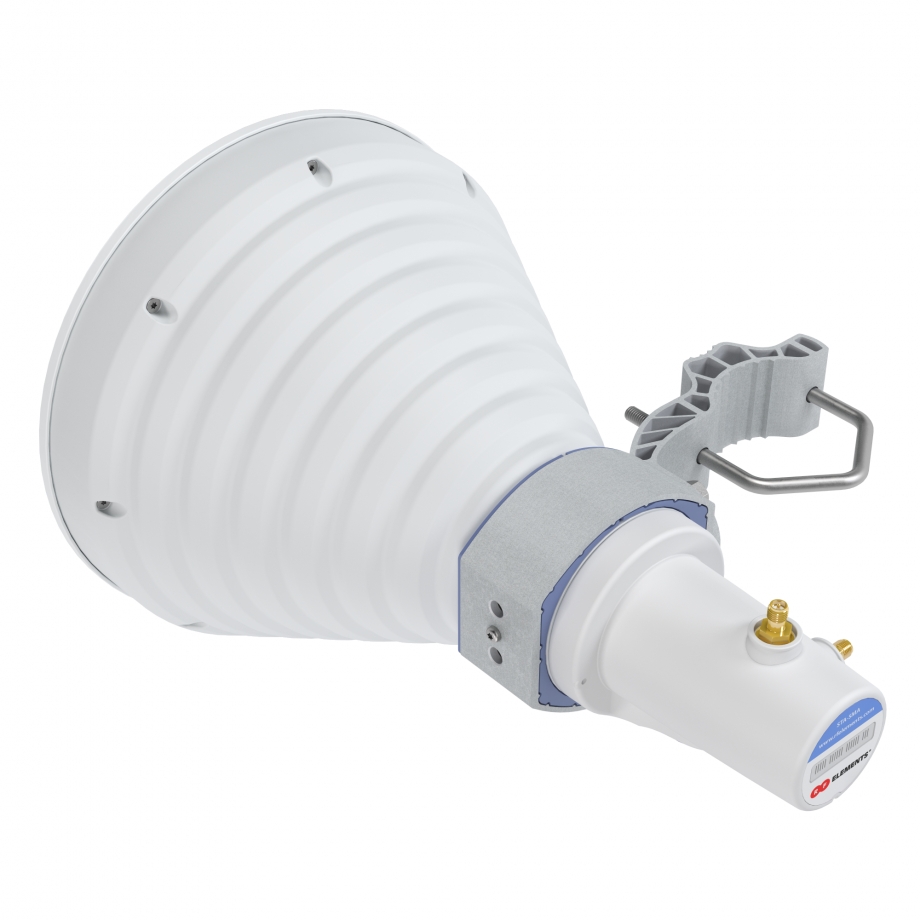

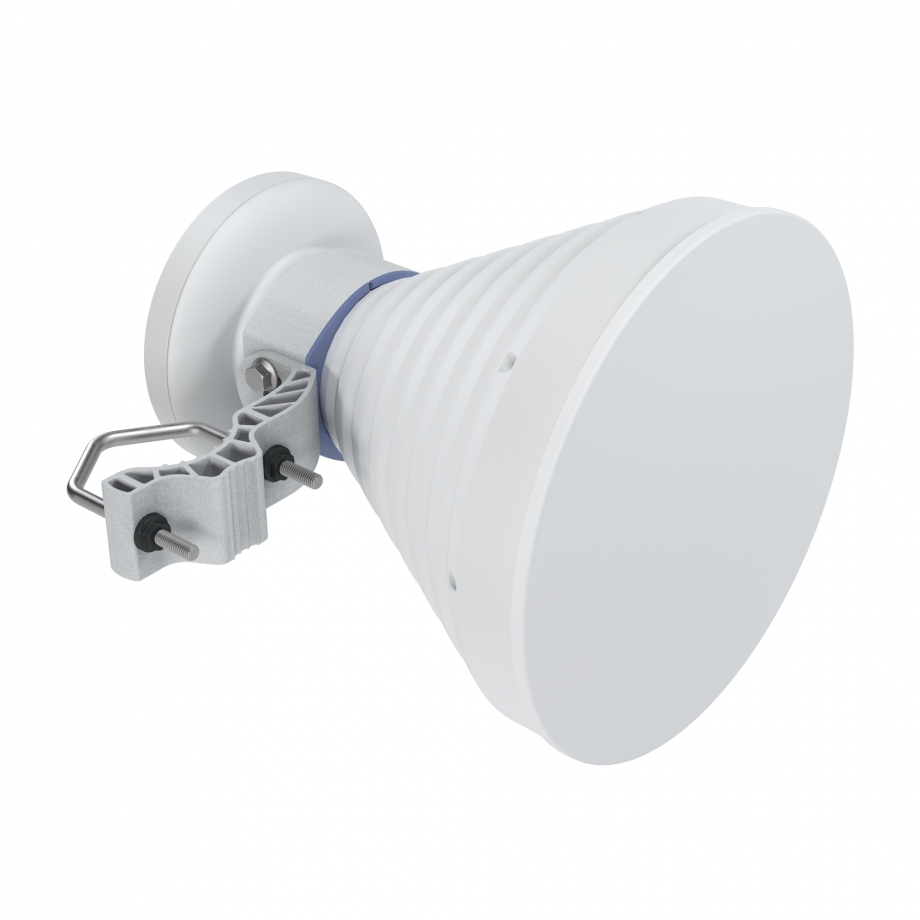

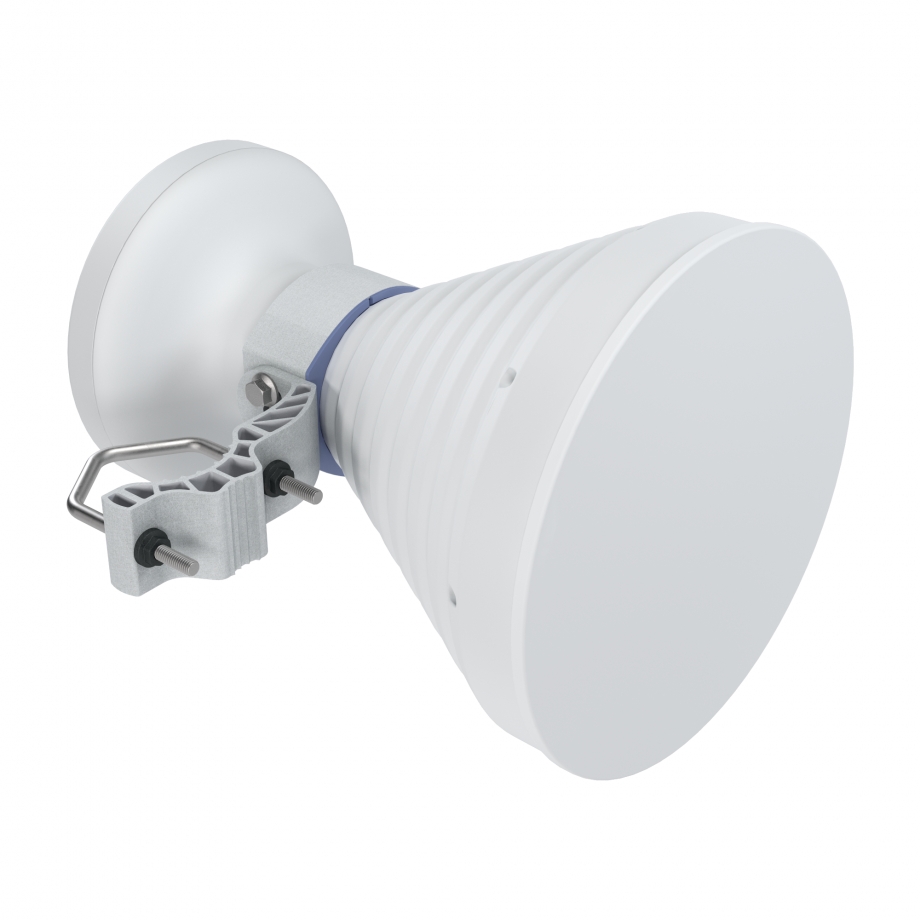

The StarterHorn™ 30° USMA offers two connection methods, allowing it to work with different wireless radio platforms. Separate RP-SMA Female connectors provide interfaces for horizontal and vertical antenna polarizations, enabling connection to third-party radios with coaxial outputs. A waveguide interface allows the antenna to be used with compatible Ubiquiti radios, including PrismStation 5AC, IsoStation 5AC, and IsoStation M5. These connection options allow the same antenna model to be considered for installations using either coaxial radio connections or supported waveguide-based devices, without requiring a different horn antenna design for each connection type.

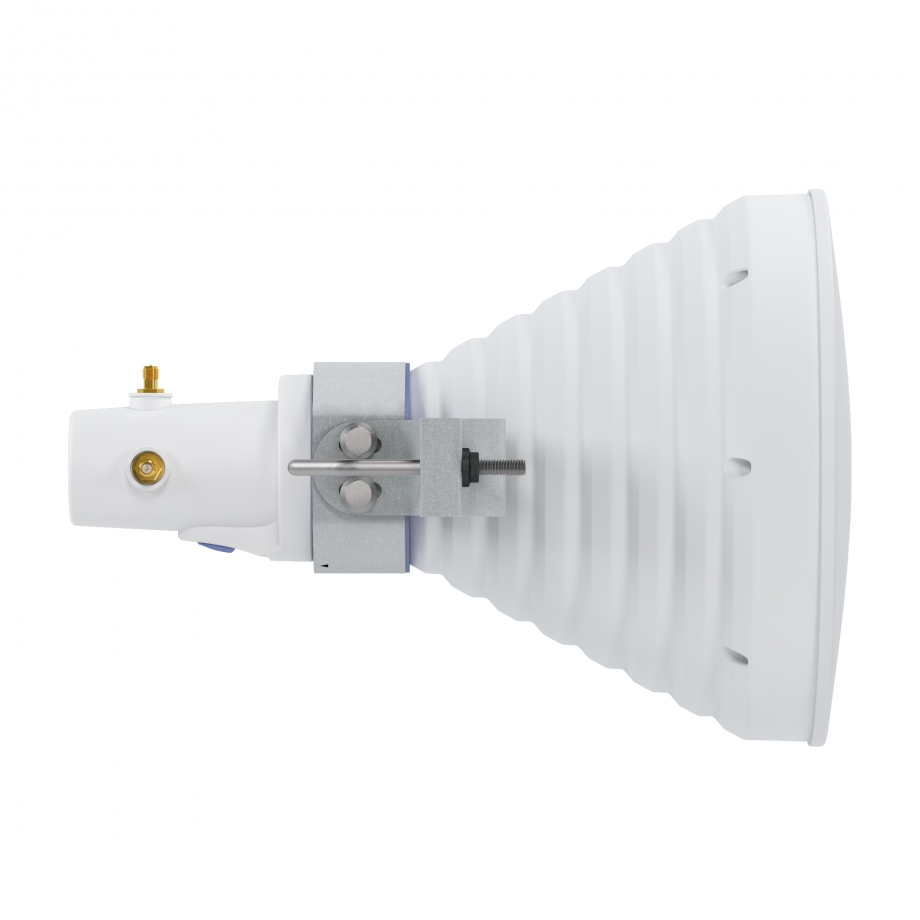

The antenna is designed for pole mounting on supports with diameters from 20 to 55 mm, with installation as close as possible to 55 mm recommended. Its mounting arrangement provides mechanical tilt adjustment of ±30°, allowing the antenna's vertical orientation to be adjusted during installation. The enclosure uses UV-resistant ABS plastic, polyethylene, aluminium, and stainless steel, with an IP55 environmental rating. It operates in temperatures from -30°C to +55°C and is rated to withstand winds up to 160 km/h. Together, these construction and mounting characteristics support outdoor installation while allowing the antenna to be positioned according to the required direction of coverage.
/images/catalogue/description/799/picture1-6af47bb166d06-1701x737.jpg

Specifications

Antenna

Antenna Design

Horn
Wireless Antenna Frequency Range & Gain

5.150 - 5.950 (GHz) 18 (dBi)
Beamwidth

30 ° Vertical, 30 ° Horizontal
F/B ratio

> 33 dB

Connectors

RF Connectors

(2) SMA Female, (1) Waveguide Port

Physical Parameters

Material

Stainless steel, Aluminium, ABS Plastic
Ingress Protection Code

IP55
Dimensions

Ø214 x 301 mm
Weight

1.3 kg
Operating Temperature

-30 °C to 55 °C
Environment

Outdoor
Mounting Method

Rated Wind Velocity

160 km/h
