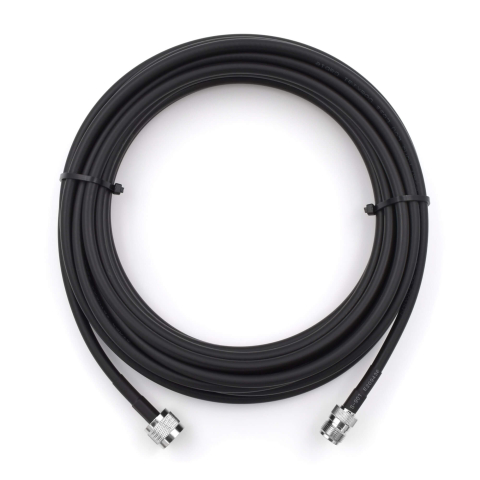

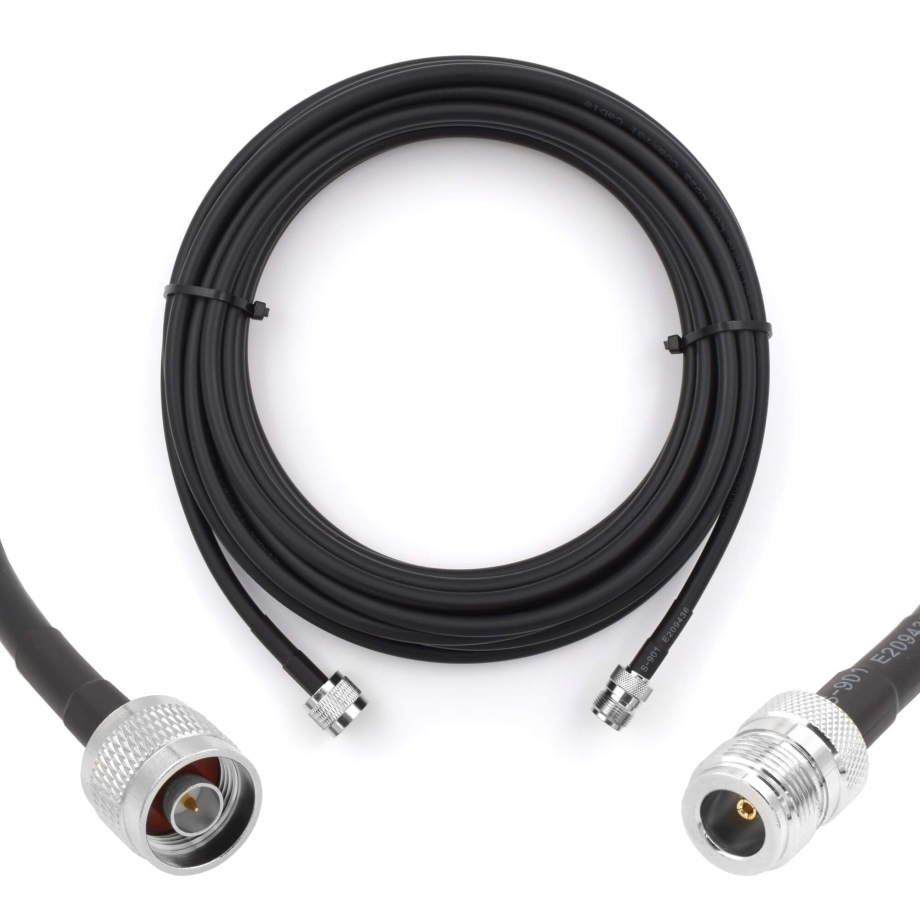

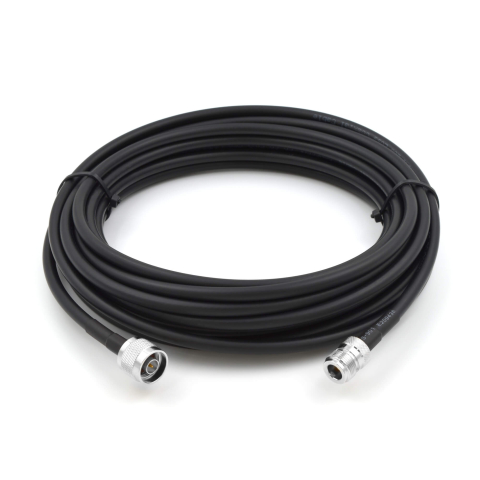

N Male to N Female 10m Coaxial Cable HF300 (LMR300 equivalent)

HF300 Coaxial cable is one of the most popular products within the coaxial cable range. The LMR300 / HF300 is recognized globally as the industry standard ultra low loss, flexible, low cost, lightweight, DC – 6GHz coaxial cable solution for many RF applications.

HF300 is very well know for it’s good flexibility, excellent reliability, and low attenuation. The HF300 cable has much lower attenuation than RG 8, RG 213, RG 214 and 9913 Air-Dielectric type Cables.

The HF300 cable was created to achieve much better flexing abilities than other cables in PE sheath. This has been achieved through the use of a solid copper center conductor and PVC outer jacket. This is an excellent product where extra flexure is required for installations.

This is achieved due to the cable construction specifications. The center conductor uses a high conductivity, solid bare copper conductor material. The dielectric is gas injected, foamed Polyethylene which helps achieve 84% Velocity of Propagation. The Dielectric has a Aluminium foil outer conductor, which is chemically bonded on to it. Due to the cable construction, the attenuation is significantly lower as compared to single shielded coaxial cables: RF shielding of HF300 is > 90 dB as compared to 40 dB for RG8.

HF300 coaxial cable comes with a UV resistant, flexible PVC Jacket. This helps the cable to bend with much less force than that of standard LMR300 with PE or LSZH Jacket.

HF300 is designed to operate excellent from DC up to 6GHz. For any frequency band at VHF and above, HF300 series is the obvious choice.
