Product name
Iskra 5G antenna, 698-3800 MHz, 7.5-10.5 dBi, cable 10m
Warranty
?
12 months
Manufacturer part number
P-60-5G-10
EAN
0708747439151
Iskra 5G MIMO Antenna 698-3800 MHz, 7.5-10.5 dBi, 10 m Cable
- 5G MIMO antenna set with two X-polarity antennas for stronger mobile signal reception and improved LTE/5G performance across a wide 698-3800 MHz range.
- Ultra-wideband coverage from LTE 700 to 5G 3.8 GHz helps support stable connectivity for modern mobile networks in one practical antenna solution.
- Designed for Wi‑Fi routers and MIMO modems, this antenna set is a smart choice for boosting signal reception in home or office installations.
- Includes 2 antennas with identical technical data for upper and lower mounting positions, making setup straightforward and consistent.
- 10 m cable provides flexible placement options, while the 7.5-10.5 dBi gain range supports efficient signal capture in demanding locations.
86.59 €
out of stock
?
86.59 €
out of stock
?
Available alternatives
Detailed description
Antenna set P-60 5G 7003800 MIMO is used for the reception of mobile operators' signals in MIMO technology (two antennas mounted into X polarity). The antenna set covers ultra-wide frequency range from LTE 700 to LTE 5G 3,8 GHz frequency bands. Set is the most suitable for connecting it to Wi-Fi router or MIMO modem. One set contain two antennas (one for upper and one for lower mounting position) with the same technical data.
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Antenna Design
Yagi
Wireless Antenna Frequency Range & Gain
2.400 - 2.495 (GHz) 10 (dBi)
Mobile Antenna Frequency Range & Gain
0.698 - 0.862 (GHz) 10 (dBi), 1.710 - 1.880 (GHz) 10 (dBi), 2.50 - 2.70 (GHz) 10 (dBi), 3.30 - 3.80 (GHz) 8 (dBi)
Mobile Antenna Gain
10 dBi, 8 dBi
Beamwidth
44 ° Vertical, 52 ° Horizontal
Cable Length
10 m
VSWR
< 1.6
Impedance
50 Ω
F/B ratio
> 23 dB
Maximum Input Power
50 W

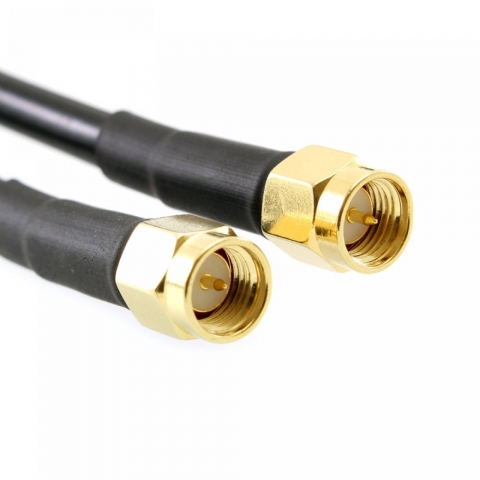

Connectors
RF Connectors
(2) SMA Male
