Ubiquiti Connect Display

The Ubiquiti Connect Display (UC-Display) is a 21.5-inch Full HD touchscreen designed for modern interactive digital signage environments. Built to enhance communication and engagement in offices, retail spaces, hospitality venues, and public areas, this PoE++ powered display combines functionality with a sleek professional appearance. The capacitive multi-touch technology enables smooth and responsive interaction, making it ideal for wayfinding, announcements, booking systems, dashboards, or customer-facing information points. The 1920 x 1080 Full HD resolution with a 16:9 aspect ratio delivers clear visuals, while the typical brightness of 250 nits ensures readability in most indoor lighting conditions.

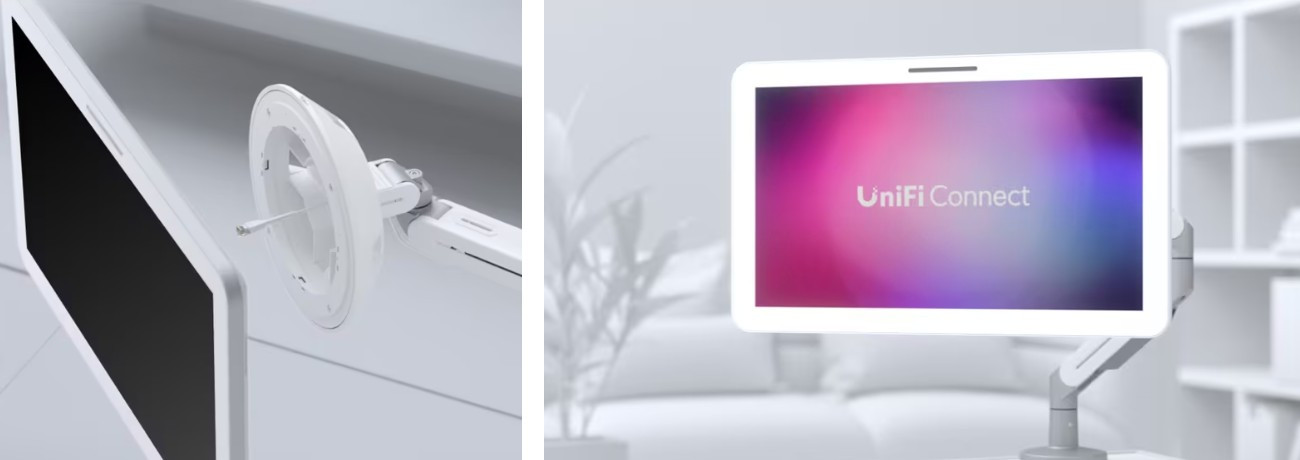

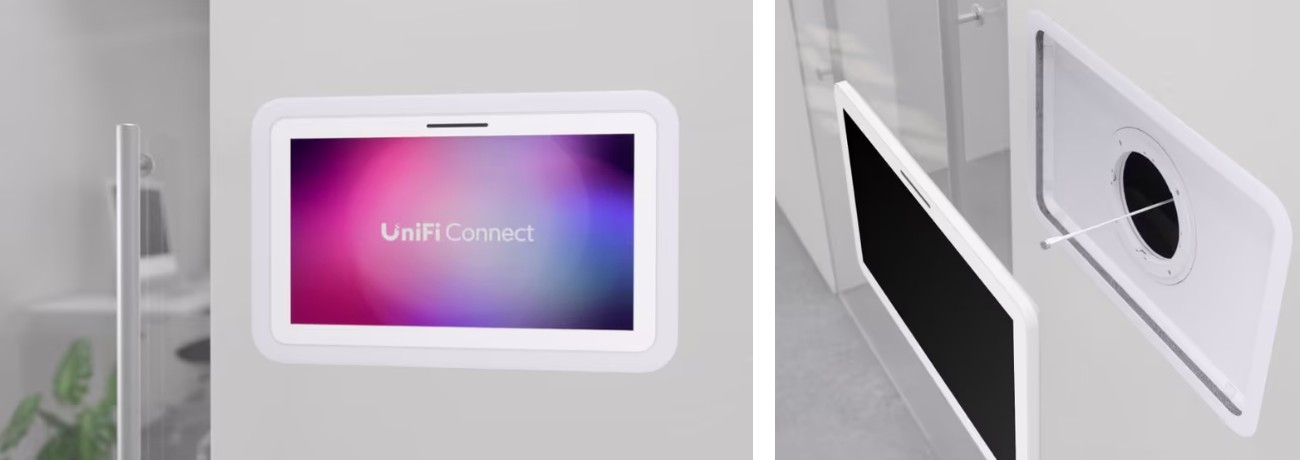

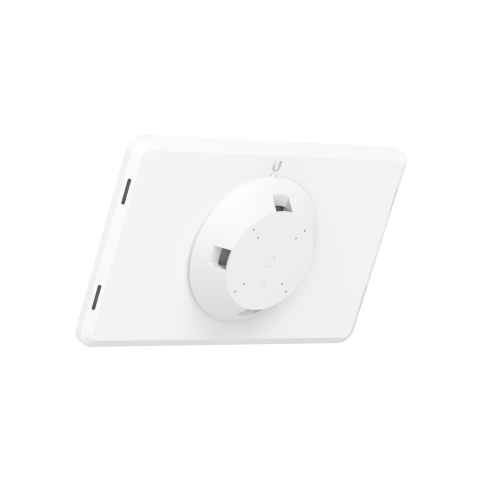

UC-Display is designed for flexible deployment and can be mounted using the included VESA adapter or installed with optional table stand, surface, arm, or flush mounting solutions. The enclosure combines polycarbonate and aluminum materials to balance durability with a modern aesthetic, while maintaining a manageable weight of 4.9 kg. Fully integrated into the UniFi ecosystem, the display works seamlessly with the UniFi Connect application suite, enabling centralized content management and interactive use cases across multiple locations. With its combination of touch interaction, flexible mounting options, and PoE++ power delivery, UC-Display offers a streamlined solution for organizations seeking to deploy interactive digital signage without the complexity of traditional installations.

UC-Display is powered by an octa-core ARM Cortex-A53 processor operating at 2.2 GHz, providing reliable performance for interactive applications and dynamic content delivery. The system is equipped with 3 GB of RAM to support stable multitasking and efficient application performance. In addition, 32 GB of internal storage provides ample space for media files, layouts, and locally stored data, reducing dependence on constant streaming and improving reliability. Power is delivered via PoE++, allowing both data and power to be supplied through a single Ethernet cable. This simplifies installation by eliminating the need for separate power wiring while maintaining a maximum power consumption of 27W. For connectivity, UC-Display features a Gigabit Ethernet RJ45 port that ensures reliable network communication and seamless integration with centralized management systems.

A USB-C port is also included and reserved for future functionality, allowing the platform to evolve with software updates. Built-in Bluetooth 4.2 expands compatibility with peripheral devices and enhances interaction possibilities. The display includes an integrated microphone and speaker, enabling audio-based applications such as announcements, feedback prompts, or voice-assisted interactions. A factory reset button allows quick system recovery if needed. Designed for dependable operation, UC-Display functions within an ambient temperature range of 0 to 40°C and complies with CE, FCC, and IC certification standards. NDAA compliance further supports deployment in regulated environments. Management is handled through UniFi Connect Web or mobile applications, enabling centralized configuration, monitoring, and content updates across deployments.
