Alfa ARS-AS087 Magnetic Antenna Extender N Female to RP-SMA Male with 3m Cable

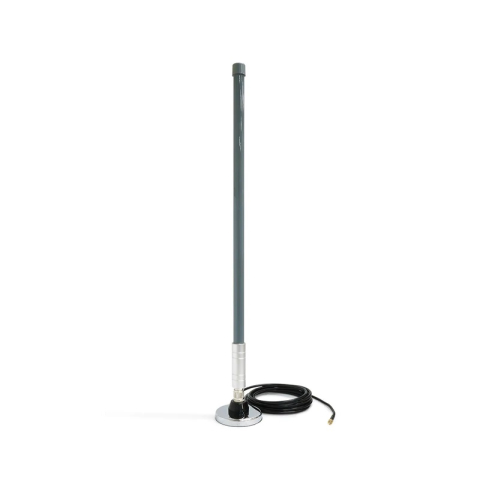

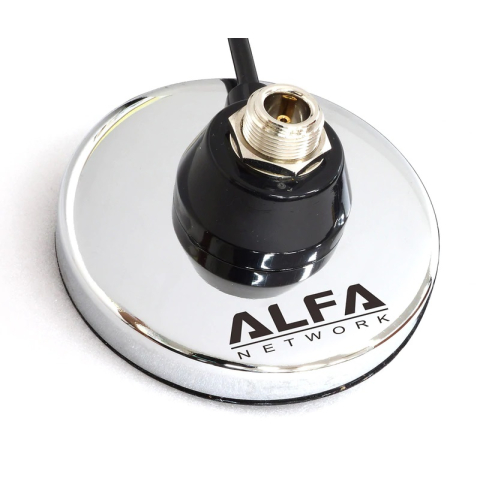

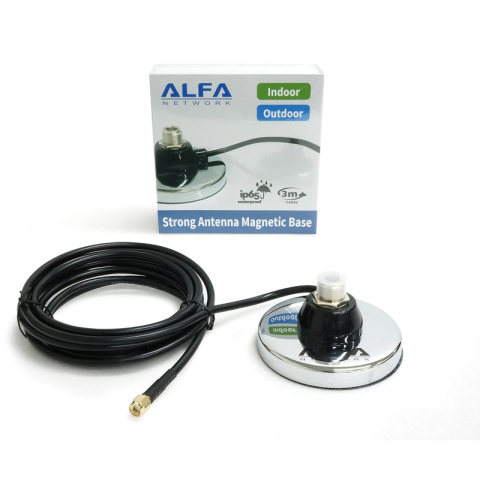

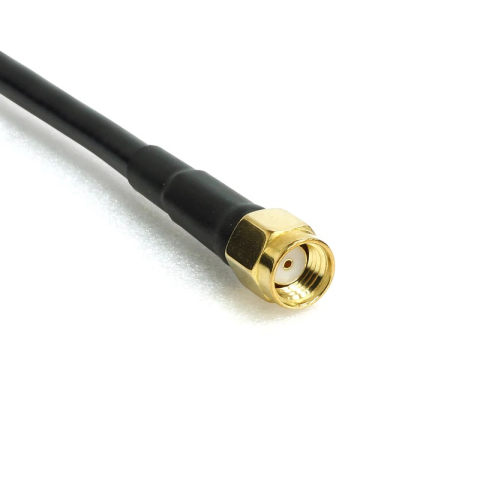

The ALFA Network ARS-AS087 is a Type-N Female to RP-SMA Male antenna extender with a magnetic base, intended for indoor and outdoor applications where antenna portability is required. The base incorporates a heavy-duty magnet and a Type-N Female antenna connector, allowing the antenna connection point to be positioned independently from the connected WiFi equipment. A 3 m LMR®-200 RF cable extends from the magnetic base and terminates in an RP-SMA Male connector, creating a complete connection between the Type-N Female antenna interface and compatible WiFi equipment using the specified RP-SMA Male connection. This arrangement combines the magnetic mounting point, antenna connector, and RF cable into a single assembly for installations where the antenna position may need to be changed.

The extender operates across a frequency range of 0–6 GHz and has a specified impedance of 50 Ω. Its maximum input power is 50 W, defining the electrical limits that should be considered when matching the ARS-AS087 to an antenna installation. The supplied 3 m LMR®-200 cable provides the fixed connection distance between the magnetic base and the RP-SMA Male cable end, while the operating temperature range of −40 °C to 70 °C supports the stated indoor and outdoor application scope. Together, the magnetic mounting base, Type-N Female antenna connection, RP-SMA Male termination, and integrated RF cable define the extender’s role as a portable antenna connection solution for WiFi equipment.
