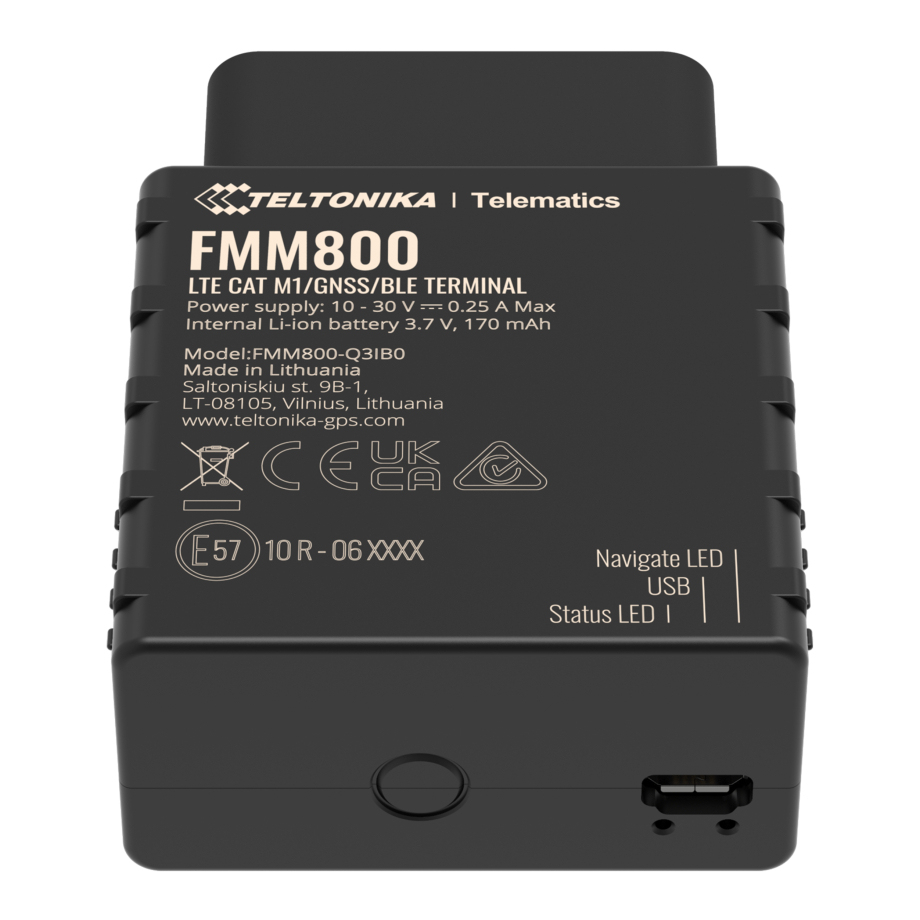

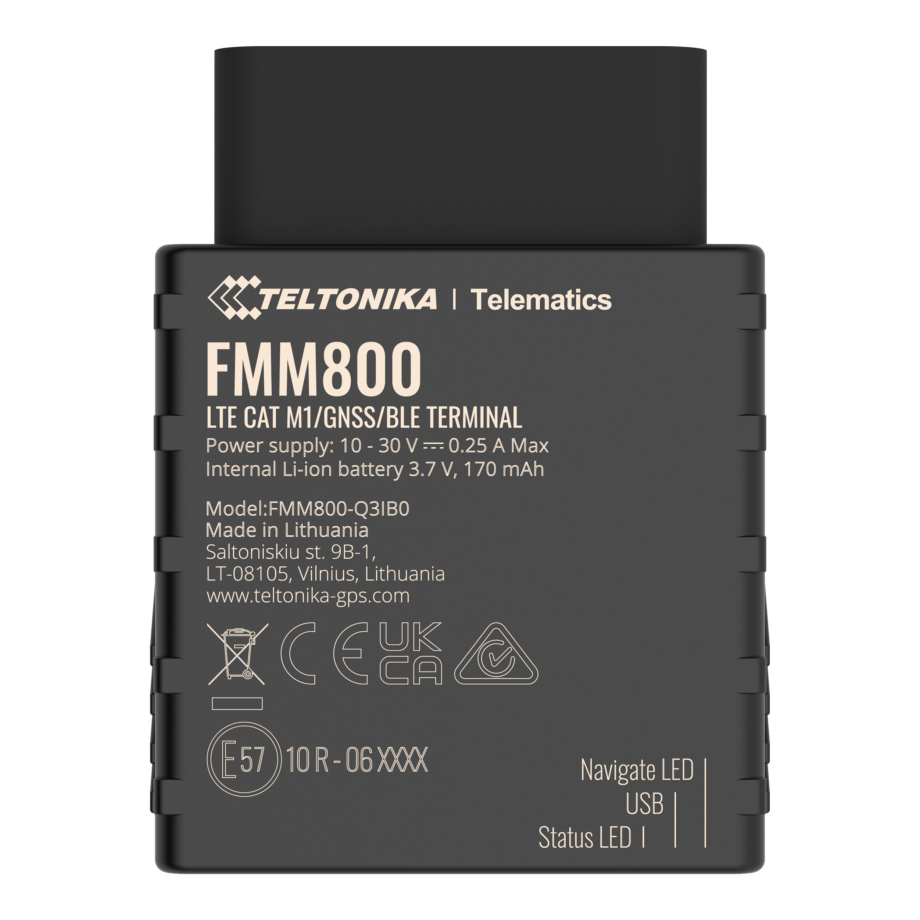

Teltonika FMM800

The Teltonika FMM800 is a true plug-and-play tracker: simply insert it into your vehicle’s OBD-II port and begin tracking immediately. Designed for effortless installation, it doesn’t require additional wiring or external antennas, as everything is built-in for fast deployment. It supports LTE Cat M1 and NB-IoT connectivity, delivering efficient and reliable data transmission over modern cellular networks. The device features an internal high-gain GNSS antenna and supports multiple GNSS systems (GPS, GLONASS, Galileo, BeiDou, QZSS, and AGPS), providing a robust and accurate positioning solution. With tracking sensitivity down to –165 dBm, hot starts of less than 1 second, and position accuracy listed at < 2.5 m CEP, the FMM800 ensures timely and precise telemetry. Built-in scenarios like crash detection, over-speeding, eco-driving, geofencing, towing, and idling monitoring enable you to collect actionable insights about vehicle behavior directly from the device.

Designed for energy efficiency, the FMM800 operates from a 10–30 V DC supply (via the OBD-II port) and includes a 170 mAh Li-Ion backup battery to remain functional even if external power is lost. It also supports Bluetooth 4.0 + LE so you can connect low-energy sensors (temperature, humidity, magnet, etc.) or beacons without extra cabling. To conserve energy, the device offers multiple sleep modes, including GPS Sleep, Online Deep Sleep, Deep Sleep, and Ultra Deep Sleep, which are tailored to reduce current draw when the vehicle is idle. Configuration and firmware updates are managed through Teltonika’s tools: the USB-based Configurator or FOTA Web for remote updating. The FMM800 also supports standard scenarios like green driving, crash detection, geofencing, towing alerts, and trip logging. With two status LEDs, micro-SIM support, and 128 MB of internal flash memory for storage, it’s a complete, compact solution for fleet visibility and vehicle monitoring.
