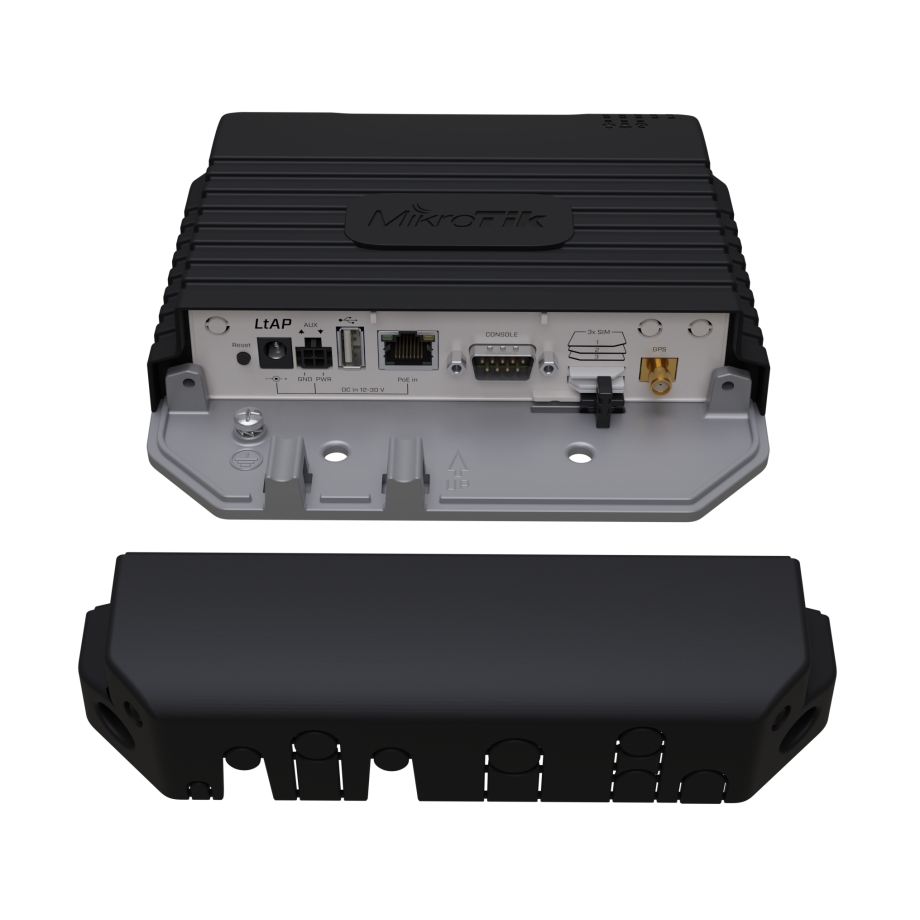

MikroTik LtAP LTE6 kit
This item has been discontinued
We recommend to use the product presented below
MikroTik LtAP LTE6 kit (2023)
LtAP-2HnD&FG621-EA
Available alternatives
Detailed description
LtAP mini Series
The LtAP mini series by MikroTik offers a range of small, weatherproof wireless access points that are designed for various environmental conditions such as rain, snow, wind, and extreme temperatures. These durable devices are encased in a special enclosure that protects their internal components from the elements, making them perfect for outdoor installations in parks, streets, or other public areas, as well as for mobile applications in vehicles.
Integrated GPS Feature
What truly sets the LtAP mini series apart is its integrated GPS feature that allows for real-time tracking of vehicles. This can be utilized for navigation, fleet management, or other location-based applications. The GPS data can also be employed for geofencing, a technology that creates a virtual boundary around a geographic area and can trigger an alert or action when a device enters or exits that area. External GPS antennas are also available for order separately, providing you with even more options for precise location tracking.
Extensive Connectivity Options
The LtAP LTE6 kit is equipped with a built-in CAT6 cellular modem that provides fast 4G (LTE) connectivity with download speeds of up to 300 Mbps, ensuring that you're always connected, no matter where you are. The capabilities of the LtAP LTE6 kit are extensive, featuring three Mini SIM slots that allow you to switch between cellular providers as needed, ensuring optimal connectivity and a failsafe in case of provider interruptions. The device also includes a Gigabit Ethernet port for wired devices, offering quick and reliable data transmission.
Customizable Options
For those looking to expand the device's capabilities, the LtAP LTE6 kit comes with two miniPCI-e slots. One of these slots is already populated with the LTE modem, while the second is available for additional expansions, such as a second LTE modem for redundancy or a 5 GHz interface to support dual concurrent 2.4 GHz / 5 GHz AP + LTE.
The robust and durable case of the LtAP LTE6 kit is designed to withstand even the harshest conditions, from public transportation and logistics operations to extreme weather environments, with an operational temperature range of -40°C to +70°C. The device is also perfect for tracking vehicles in real-time, with a simple tracking application example provided in the RouterOS documentation to get you started.
Robust Hardware Configuration
In terms of hardware, the LtAP LTE6 kit is powered by the MT7621A chipset developed by MediaTek, which supports high-performance networking and Wi-Fi. This chipset is paired with a 2-core, 880 MHz CPU, and 128 MB of RAM, ensuring that the device can handle a range of tasks with ease. Lastly, the LtAP LTE6 kit features several powering options, including a DC jack, POE-in, and automotive, as well as a full-size USB port and RS232 serial port for connecting other devices and console access for debugging.
Compare with similar products
| Ethernet Ports | |||
| 1 x 1 Gbps | 1 x 100 Mbps | 1 x 100 Mbps | |
| USB Ports | |||
| 1 x USB-A 2.0 | 1 x Micro USB | 1 x Micro USB | |
| PCI Express | |||
| 2 x MiniPCI-e | 1 x MiniPCI-e | 1 x MiniPCI-e | |
| Chipset | |||
| MT7621A, 2 core, 880 MHz | QCA9531, 1 core, 650 MHz | QCA9531, 1 core, 650 MHz | |
| RAM | |||
| 128 MB | 64 MB | 64 MB | |
| Storage Memory | |||
| 16 MB | 16 MB | 16 MB | |
| Max Power Consumption | |||
| 24 W | 9 W | 9 W | |
| Environment | |||
| Indoor, Outdoor | Outdoor | Outdoor | |
| SIM Card Slot | |||
| Triple SIM | Dual SIM | Dual SIM | |
| LTE modem | |||
| Ethernet Ports | 1 x 1 Gbps | 1 x 100 Mbps | 1 x 100 Mbps |
| USB Ports | 1 x USB-A 2.0 | 1 x Micro USB | 1 x Micro USB |
| PCI Express | 2 x MiniPCI-e | 1 x MiniPCI-e | 1 x MiniPCI-e |
| Chipset | MT7621A, 2 core, 880 MHz | QCA9531, 1 core, 650 MHz | QCA9531, 1 core, 650 MHz |
| RAM | 128 MB | 64 MB | 64 MB |
| Storage Memory | 16 MB | 16 MB | 16 MB |
| Max Power Consumption | 24 W | 9 W | 9 W |
| Environment | Indoor, Outdoor | Outdoor | Outdoor |
| SIM Card Slot | Triple SIM | Dual SIM | Dual SIM |
| LTE modem |
Compatible products
Specifications
Mobile Network
Mobile Network Generation
2G (GSM), 3G (UMTS), 4G (LTE)
LTE Category
Cat6 - 300Mbps/50Mbps
FDD LTE Frequency Bands
1 (2100MHz), 2 (1900MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 12 (700MHz), 17 (700MHz), 20 (800MHz), 25 (1900MHz), 26 (850MHz)
TDD LTE Frequency Bands
38 (2600MHz), 39 (1900MHz), 40 (2300MHz), 41 (2500MHz)
SIM Card Slot
Triple SIM
Wireless Network
Standards
802.11b/g/n
MIMO
2.4GHz 2x2
2.4GHz Radio Rate
300 Mbps
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
2.4 - 2.4 (GHz) 2.5 (dBi)
Mobile Antenna Frequency Range & Gain
0.850 - 2.600 (GHz) 4 (dBi)
Mobile Antenna Gain
4 dBi
Interfaces
RJ45 Ports
(1) 1 Gbps
USB Ports
(1) USB-A 2.0
Communication Interface
RS232
Management
Ethernet, Wi-Fi
PCI Express
(2) MiniPCI-e
System Specification
Chipset
MT7621A, 2 core, 880 MHz
RAM
128 MB
Storage Memory
16 MB
Tracking
GNSS
GPS
Power
Power Method
AC/DC Adapter, 24V Passive PoE
Power Supply
External AC/DC Adapter
Supported Input Voltage
12 - 30 V DC
Max Power Consumption
24 W
Power Connector
DC Plug 2.1 x 5.5 mm, 4-pin, 3 mm
Physical Parameters
Color
Black
Ingress Protection Code
IP54
Dimensions
170 x 162 x 40 mm
Operating Temperature
-40 °C to 70 °C
Environment
Indoor, Outdoor
Mounting Method
Screw
Form Factor
Embedded
Package Contains
External Power Supply
Included
Software
MikroTik
RouterOS Level 4
