QuMax for RUTX10 – Outdoor Wi‑Fi & Bluetooth Antenna Enclosure, IP67, 12/14 dBi

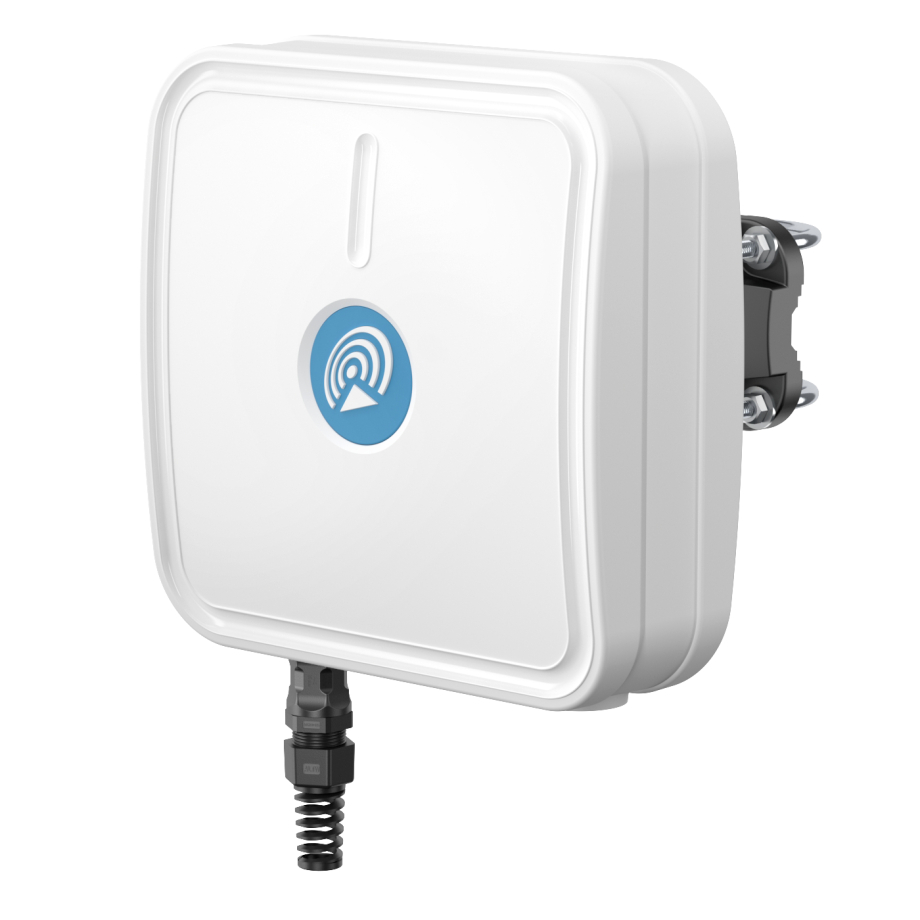

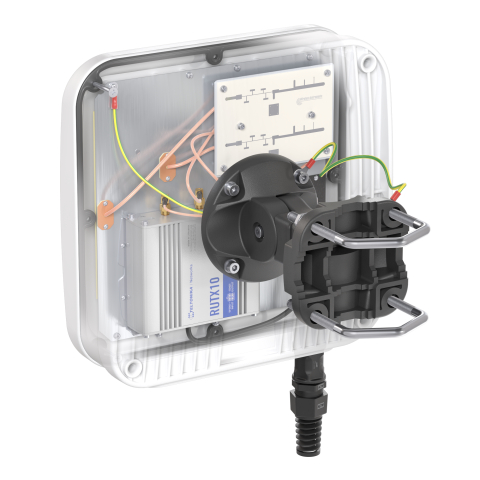

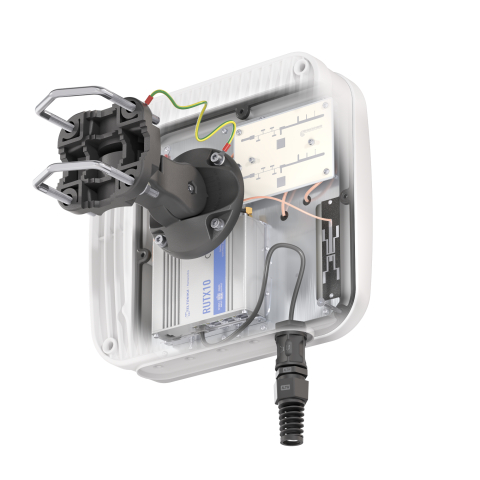

The QuMax for RUTX10 (AX10M) is an all-in-one outdoor networking system designed to house your Teltonika RUTX10 router in a single robust, weatherproof enclosure. Combining high-gain dual-band Wi‑Fi and a dedicated Bluetooth sector antenna, the unit provides a fully integrated solution for professional fixed wireless deployments. Its design simplifies installation by eliminating the need for separate external antennas, reducing cabling complexity while maintaining full functionality of the router. The system is compatible with both RUTX10 and RUTM10 routers; when paired with RUTM10, the Bluetooth antenna is inactive. The enclosure ensures optimal alignment and positioning of antennas for maximum coverage while protecting sensitive electronics from environmental factors. Perfect for hotspots, industrial networks, and public access points, QuMax delivers reliable connectivity and a polished, professional appearance. The snap-on housing allows for quick installation and maintenance, providing both convenience and long-term reliability for network integrators, installers, and service providers.

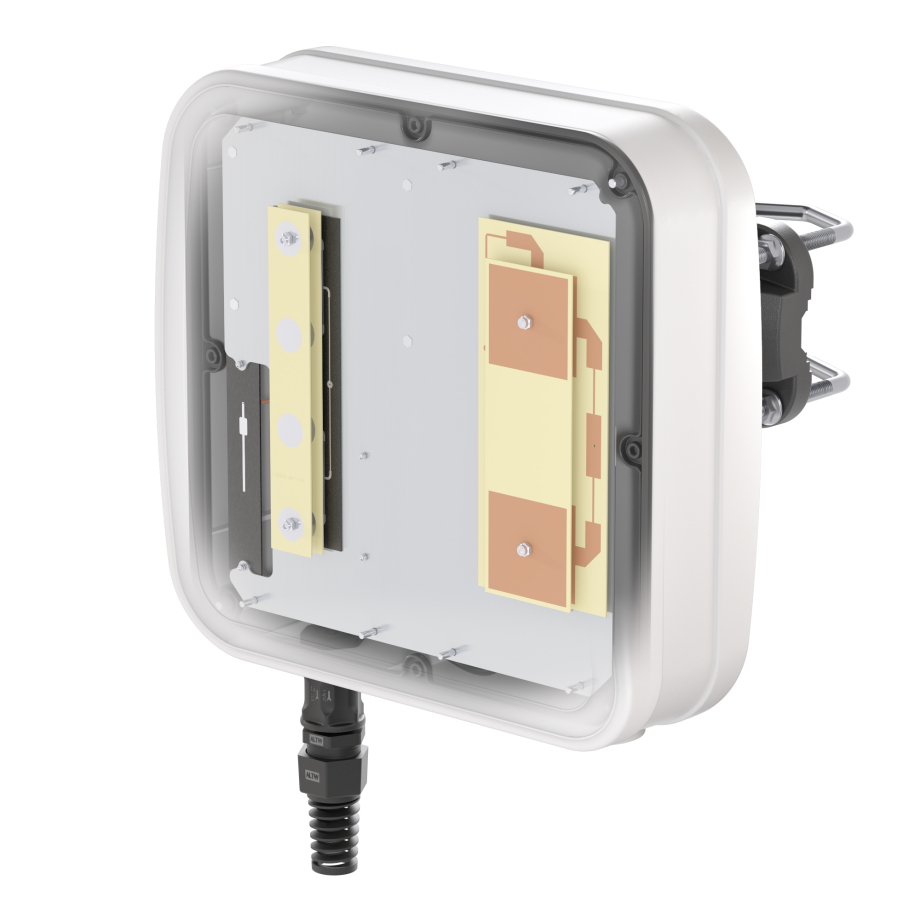

QuMax offers advanced antenna performance for demanding wireless deployments. The dual-band Wi‑Fi antenna covers the 2.4–2.5 GHz range with a 12 dBi gain and the 5.1–7.125 GHz range with a 14 dBi gain, delivering extended coverage and high signal strength. The directional sector design features a 90° horizontal beamwidth, controlling vertical propagation to optimize outdoor signal distribution. Both horizontal and vertical polarization (H&V) ensure stable and reliable connectivity even in complex RF environments. Complementing the Wi‑Fi system, the integrated Bluetooth antenna operates from 2.30–2.60 GHz with a 3 dBi gain and an omnidirectional pattern, allowing simultaneous Wi‑Fi and Bluetooth functionality with RUTX10. QuMax’s antennas are designed for minimal interference, optimal RF matching with a 50 Ω impedance, and high efficiency across all supported frequencies. This combination of high-gain, sector-specific Wi‑Fi and Bluetooth antennas ensures that the unit provides robust coverage, high throughput, and reliable connectivity for outdoor, industrial, and commercial environments.

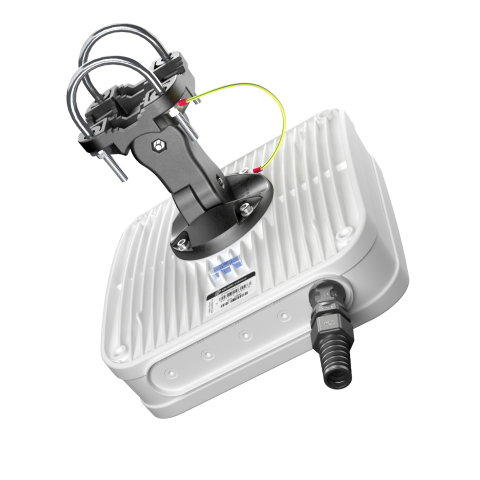

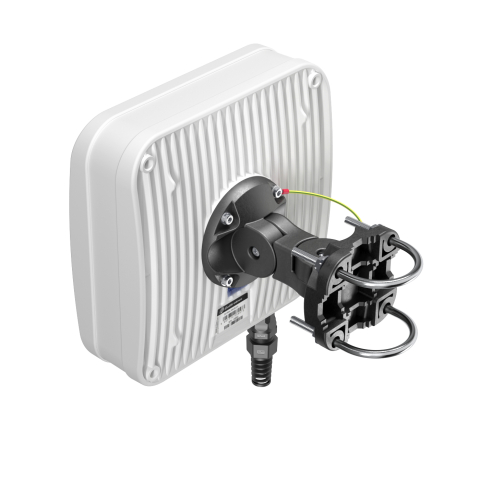

The QuMax housing is built to deliver reliable operation under harsh environmental conditions. Rated IP67, the enclosure protects internal electronics from water, dust, and debris, ensuring continuous operation in outdoor, industrial, or coastal settings. Constructed from high-quality materials including ABS, aluminum, PTFE, and fiberglass, the unit combines strength with lightweight portability. Thanks to its compact dimensions and lightweight design, the device can be installed on masts with a diameter of 25–66 mm. Operating temperatures range from ‑40 °C to +80 °C, supporting a wide variety of climates and geographic locations. The design also prioritizes cable management and antenna alignment, enabling easy maintenance and long-term performance stability. QuMax merges durability, convenience, and professional aesthetics, making it an ideal solution for enterprises, service providers, and public Wi‑Fi projects that require high-performance connectivity, weatherproof protection, and simplified deployment in a single, integrated system.
