MikroTik MTP60-12V50-RS-DC 60W Hot-Swap DC-DC Power Supply for CCR2004, CRS504 & CRS510

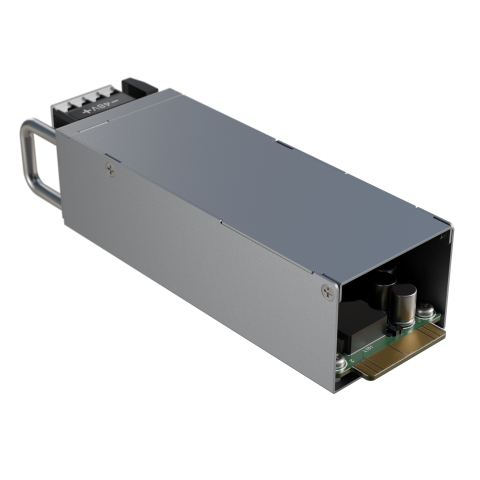

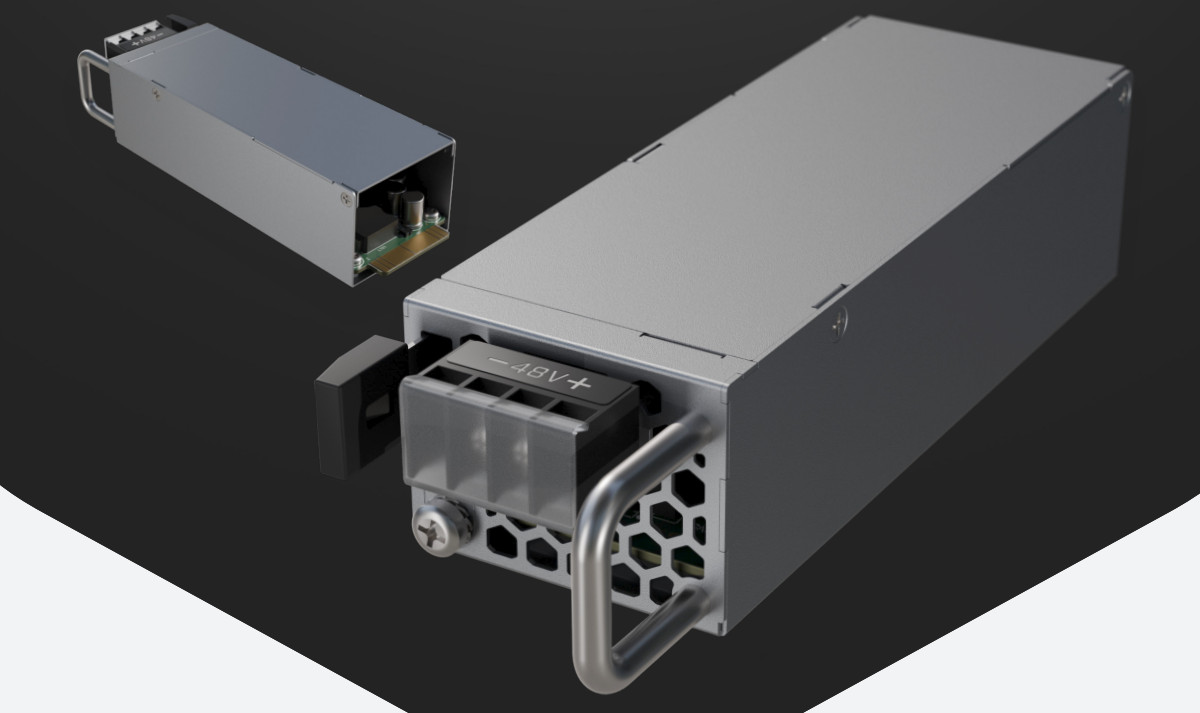

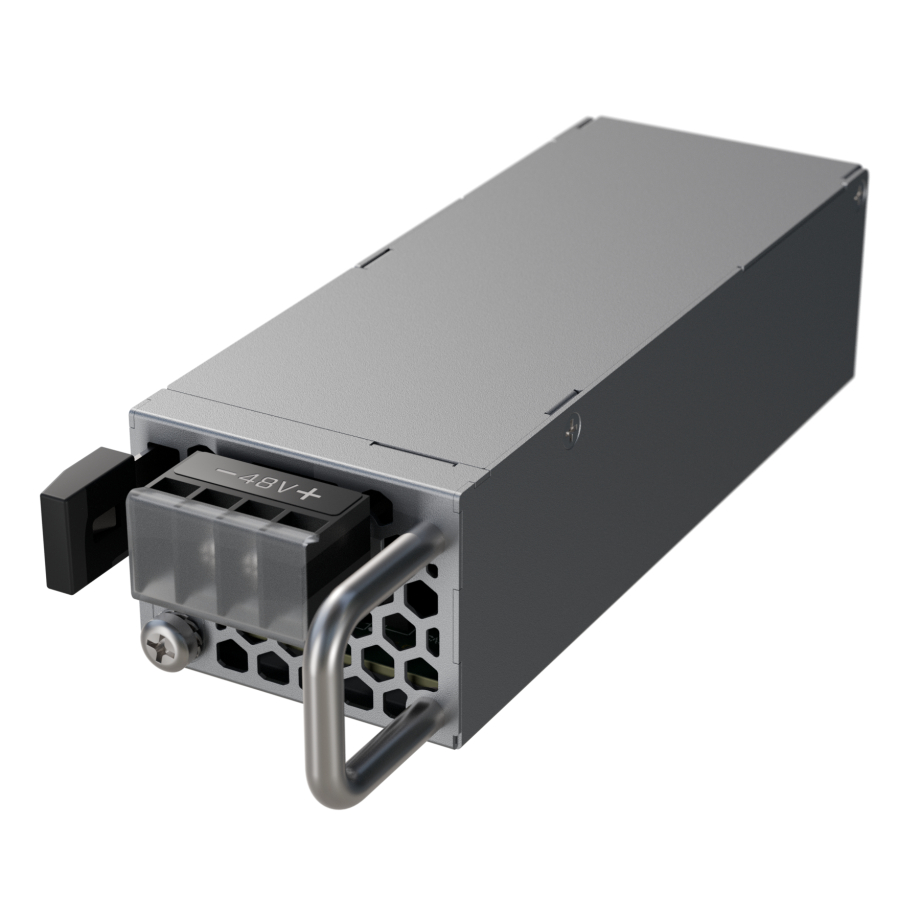

The MikroTik MTP60-12V50-RS-DC is a 60 W DC-DC hot-swap power supply for the CCR2004-16G-2S+, CRS504-4XQ-IN, and CRS510-8XS-2XQ-IN. It is intended for integrating these devices into infrastructure powered by −48 V DC while retaining redundant, hot-swappable power. The module accepts a DC input range of −36 to −57 V and converts it to a 12 V DC output, providing up to 5 A. This makes the power supply a direct part of the supported devices’ DC power arrangement rather than a separate external conversion stage.

Its hot-swap capability is central to the way the module is used in redundant power configurations. A power supply can be replaced without shutting down the device, allowing the supported router or switch to remain powered while the PSU is exchanged. This combines redundancy with serviceability in installations based on −48 V DC infrastructure. The MTP60-12V50-RS-DC therefore provides both the required DC-DC conversion and the ability to maintain device operation during a PSU replacement, making it suitable where uninterrupted power availability is an important part of the installation.
