Manufacturer part number
CCR1016-12S-1S+
Warranty
?
12 months
EAN
4752224001955
MikroTik CCR1016-12S-1S+
This item has been discontinued
We recommend to use the product presented below
MikroTik CCR2004-16G-2S+
CCR2004-16G-2S+
Available alternatives
Detailed description
1U Rackmount, 12xSFP Cage, 1xSFP+ Cage, 16 Cores x 1.2GHz CPU, 2GB RAM, LCD Panel, Dual Power Supplies, RouterOS L6

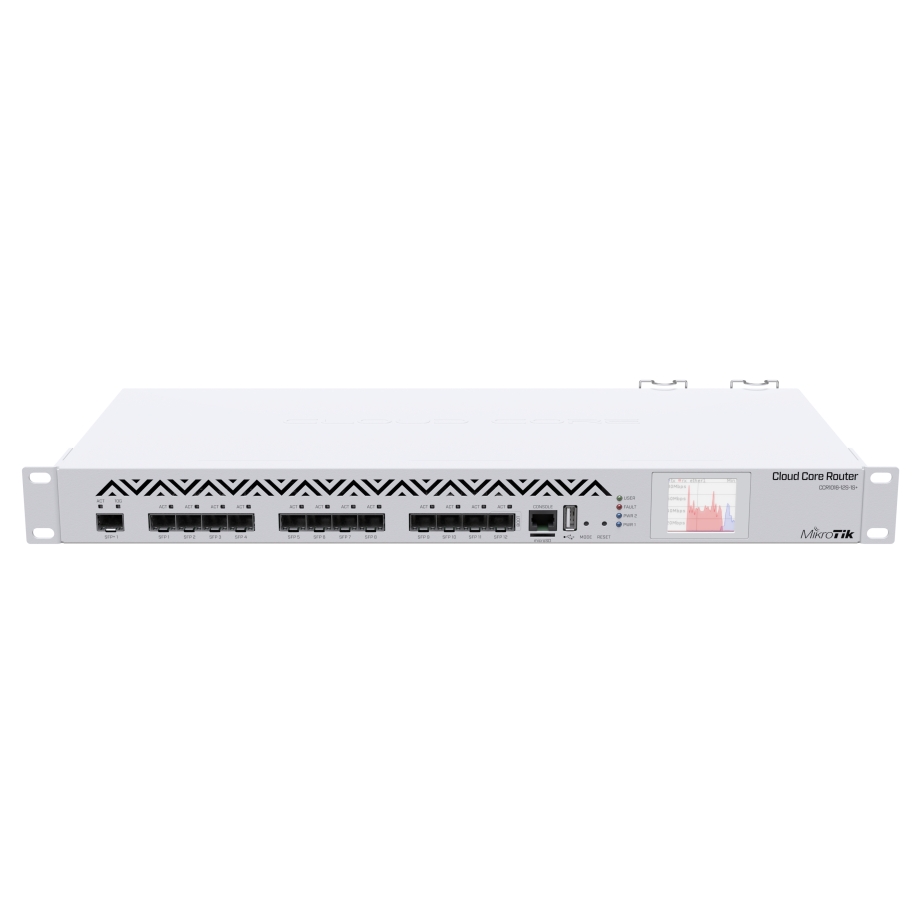

CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.
This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.
Feature
- 12 SFP ports for 1 Gigabit connectivity
- SFP+ port for 10 Gigabit connectivity
- 16 core Tilera CPU, 1.2 GHz clock per core
- 12 Mbytes total on-chip cache
- State of the art TILE GX architecture
- Ports directly connected to CPU
- 1U rackmount case
- Color touchscreen LCD display

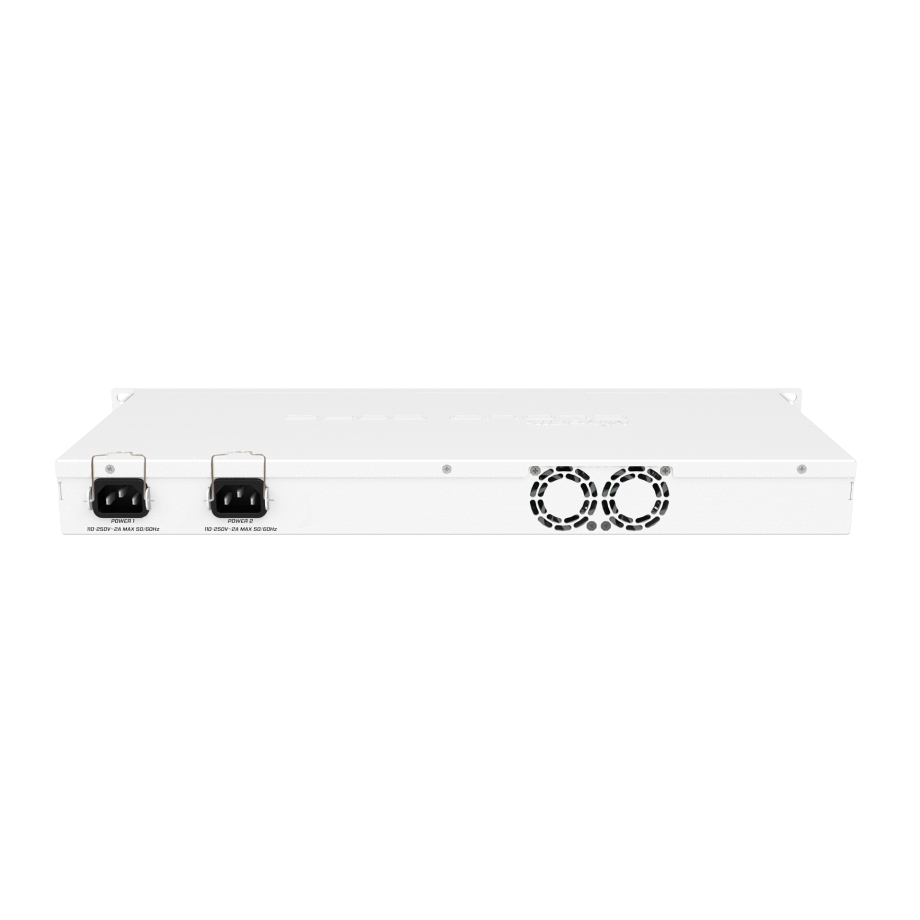

- Two power supplies for redundancy
The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.
Technical Specs / Datasheet
Compatible products
Specifications
Interfaces
SFP Ports
(12) 1G SFP, (1) 10G SFP+
USB Ports
(1) USB-A 2.0
Communication Interface
RJ45
Management
Ethernet
Memory card slots
1 microSD
System Specification
Chipset
TLR4-01680, 16 core, 1.2 GHz
RAM
2 GB
Storage Memory
128 MB
Power
Power Method
AC/DC Adapter
Power Supply
Internal x2 redundant PSU
Supported Input Voltage
100 - 240 V AC
Max Power Consumption
34 W
Physical Parameters
Number of Rack Units
1U
Color
White
Material
Metal
Ingress Protection Code
IP20
Dimensions
443 x 197 x 44 mm
Operating Temperature
-20 °C to 60 °C
Environment
Indoor
Mounting Method
RackMount
Form Factor
Rack-mounted 19"
Software
MikroTik
RouterOS Level 6
