Product name
Alfa 2.4/5GHz Outdoor Antenna 4/6dBi N-Male
Warranty
?
12 months
Manufacturer part number
AOA-2458-46ACM
EAN
4718050307470
Alfa 2.4/5GHz Outdoor Antenna 4/6dBi N-Male
In stock
?
9.96 €
9.96 €
Detailed description

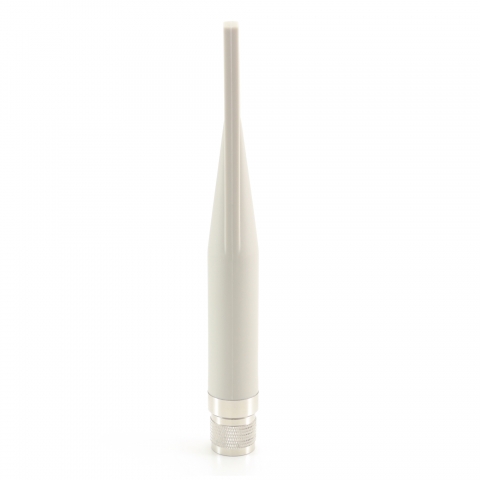

The ALFA AOA-2458-46ACM is a new high quality, low cost dual band 4/6 dBi gain omni-directional 2.4/5 GHz Wi-Fi antenna with N-male connector. The gain is 6 dBi for 5 GHz and 4 dBi for 2.4 GHz. The antenna has weather resistant casing.
VSWR
Frequency Diagram
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
2.400 - 2.483 (GHz) 4 (dBi), 5.150 - 5.875 (GHz) 6 (dBi)
Beamwidth
360 ° Vertical
Polarization
Linear
VSWR
< 2.0
Impedance
50 Ω
Connectors
RF Connectors

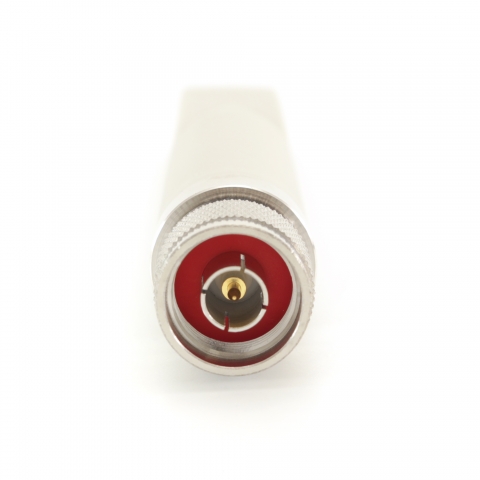

(1) N Male
Physical Parameters
Dimensions
Ø22 x 180 mm
Weight
0.07 kg
Operating Temperature
-40 °C to 85 °C
