Brand
Manufacturer part number
AOA-2409TMA
Warranty
?
12 months
EAN
4718050307395
Alfa 2.4GHz Outdoor Omni Antenna 9dBi N-Male
out of stock
?
13.76 €
13.76 €
Available alternatives
Detailed description

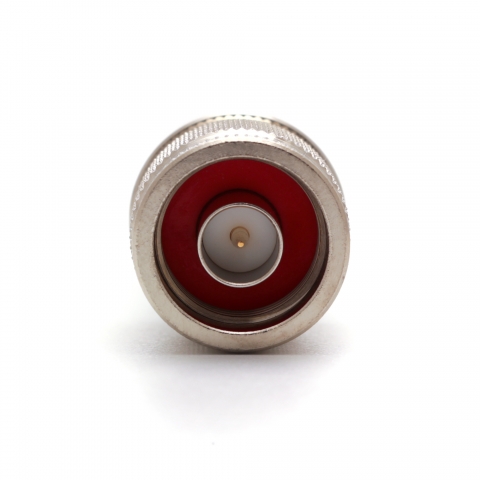

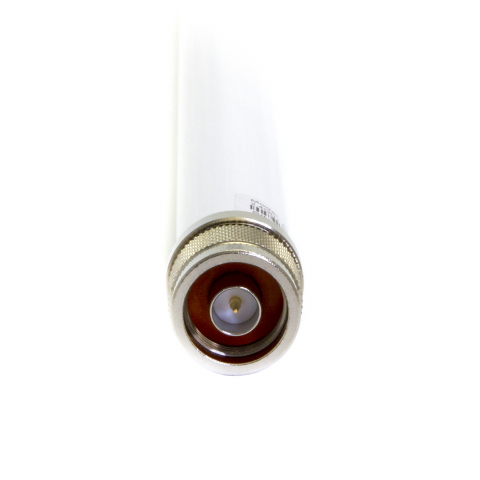

The AOA-2409TMA is an omnidirectional antenna from ALFA Network for outdoor use. Operates in the 2400-2500 MHz frequency range according to the SISO 1x1 standard, with a gain of 9 dBi. Equipped with a waterproof N Male connector.
VSWR
Frequency Diagram
Specifications
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
2.4 - 2.5 (GHz) 9 (dBi)
Beamwidth
360 °
VSWR
< 2.0
Impedance
50 Ω
Connectors
RF Connectors
(1) N Male
Physical Parameters
Dimensions
Ø22 x 418 mm
Weight
0.108 kg
Operating Temperature
-40 °C to 80 °C
