MikroTik SXT LTE6 kit

This item has been discontinued

Brand

MikroTik

Manufacturer part number

RBSXTR&R11e-LTE6

Warranty

12 months

EAN

4752224004550

We recommend to use the product presented below

new product

Available alternatives

QuRouter X09S (Antenna with Intergated Tetltonika RUTX09)

392.03 €292.00 €

-26%

QuRouter X11S (Antenna with Intergated Tetltonika RUTX11)

456.87 €379.00 €

-17%

Detailed description

The evolution of affordable connectivity in remote areas

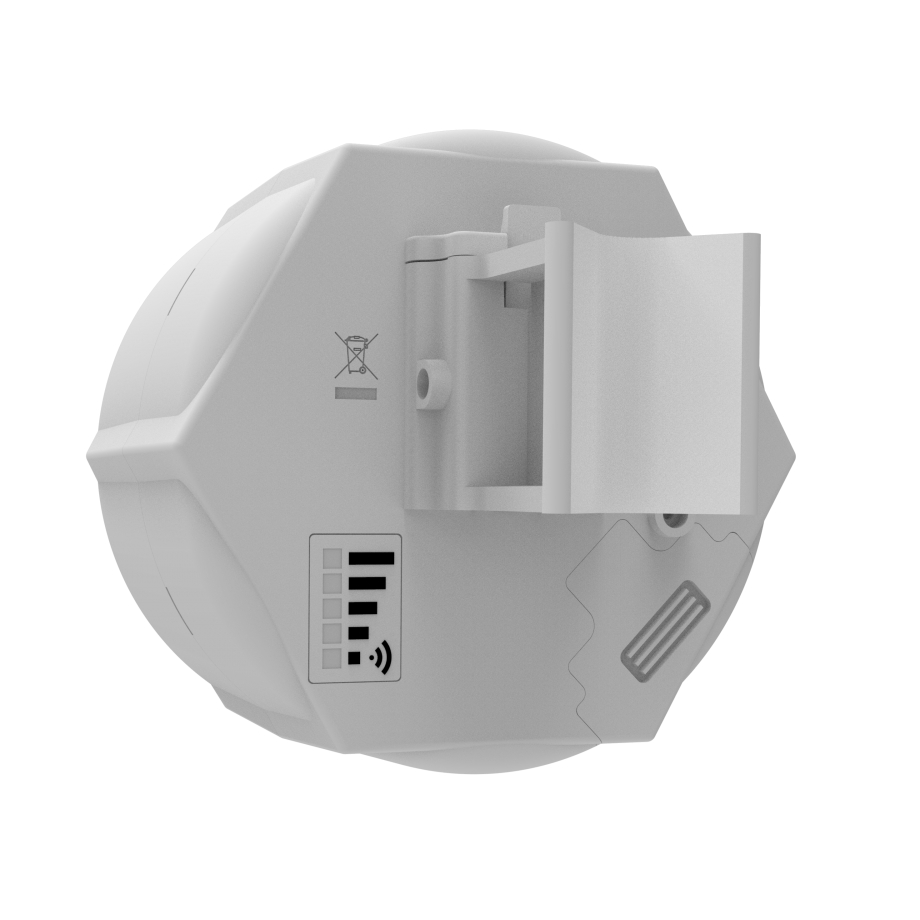

SXT LTE6 kit is a device for remote locations that are within cellular network coverage. Due to its advanced LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones fail.

The new SXT LTE6 features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. The Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. It also has two Micro SIM slots for backup link. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant.

Compare with similar products

	MikroTik SXT LTE6	MikroTik SXT LTE kit
Ethernet Ports

2 x 100 Mbps	2 x 100 Mbps	2 x 100 Mbps
PoE Out Ports

1 x Passive PoE	1 x Passive PoE	1 x Passive PoE
PCI Express

1 x MiniPCI-e		1 x MiniPCI-e
Chipset

QCA9531, 1 core, 650 MHz	QCA9531, 1 core, 650 MHz	QCA9531, 1 core, 650 MHz
RAM

64 MB	64 MB	64 MB
Storage Memory

16 MB	16 MB	16 MB
Max Power Consumption

21 W	22 W	22 W
Environment

Outdoor	Outdoor	Indoor, Outdoor
Mobile Antenna Frequency Range & Gain

0.700 - 2.600 (GHz) 9 (dBi)	0.800 - 2.600 (GHz) 10.5 (dBi)	0.700 - 2.600 (GHz) 9 (dBi)
LTE Category

Cat6 – 300Mbps/50Mbps	Cat4 – 150Mbps/50Mbps	Cat6 – 300Mbps/50Mbps

	MikroTik SXT LTE6	MikroTik SXT LTE kit	MikroTik SXT LTE6 new
Ethernet Ports	2 x 100 Mbps	2 x 100 Mbps	2 x 100 Mbps
PoE Out Ports	1 x Passive PoE	1 x Passive PoE	1 x Passive PoE
PCI Express	1 x MiniPCI-e		1 x MiniPCI-e
Chipset	QCA9531, 1 core, 650 MHz	QCA9531, 1 core, 650 MHz	QCA9531, 1 core, 650 MHz
RAM	64 MB	64 MB	64 MB
Storage Memory	16 MB	16 MB	16 MB
Max Power Consumption	21 W	22 W	22 W
Environment	Outdoor	Outdoor	Indoor, Outdoor
Mobile Antenna Frequency Range & Gain	0.700 - 2.600 (GHz) 9 (dBi)	0.800 - 2.600 (GHz) 10.5 (dBi)	0.700 - 2.600 (GHz) 9 (dBi)
LTE Category	Cat6 – 300Mbps/50Mbps	Cat4 – 150Mbps/50Mbps	Cat6 – 300Mbps/50Mbps

Technical Specs / Datasheet

Technical Specs / Datasheet - MikroTik SXT LTE6 kit

Quick Start Guide - MikroTik SXT LTE6 kit

Compatible products

Specifications

Mobile Network

Mobile Network Generation

2G (GSM), 3G (UMTS), 4G (LTE)

LTE Category

Cat6 - 300Mbps/50Mbps

FDD LTE Frequency Bands

1 (2100MHz), 2 (1900MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 12 (700MHz), 17 (700MHz), 20 (800MHz), 25 (1900MHz), 26 (850MHz)

TDD LTE Frequency Bands

38 (2600MHz), 39 (1900MHz), 40 (2300MHz), 41 (2500MHz)

SIM Card Slot

Dual SIM

Antenna

Antenna Design

Panel

Mobile Antenna Frequency Range & Gain

0.800 - 2.600 (GHz) 9 (dBi)

Mobile Antenna Gain

9 dBi

Beamwidth

60 °

Interfaces

RJ45 Ports

(2) 100 Mbps

Number of PoE Ports

1 pcs

PoE Out Standards

Passive PoE

Management

Ethernet

PCI Express

(1) MiniPCI-e

System Specification

Chipset

QCA9531, 1 core, 650 MHz

RAM

64 MB

Storage Memory

16 MB

Power

Power Method

24V Passive PoE, 48V Passive PoE, 802.3af PoE, 802.3at PoE+

Power Supply

External AC/DC Adapter

Supported Input Voltage

18 - 57 V DC

Max Power Consumption

21 W

PSU / POE adapter

24 V DC 1.2 A

Physical Parameters

Ingress Protection Code

IP54

Dimensions

Ø140 x 103 mm

Operating Temperature

-40 °C to 60 °C

Environment

Outdoor

Mounting Method

Pole Mount

Package Contains

External Power Supply

Included

Software

MikroTik

RouterOS Level 3
