Manufacturer part number
HF240T-SM-SF-12
Warranty
?
12 months
EAN
4752284001520

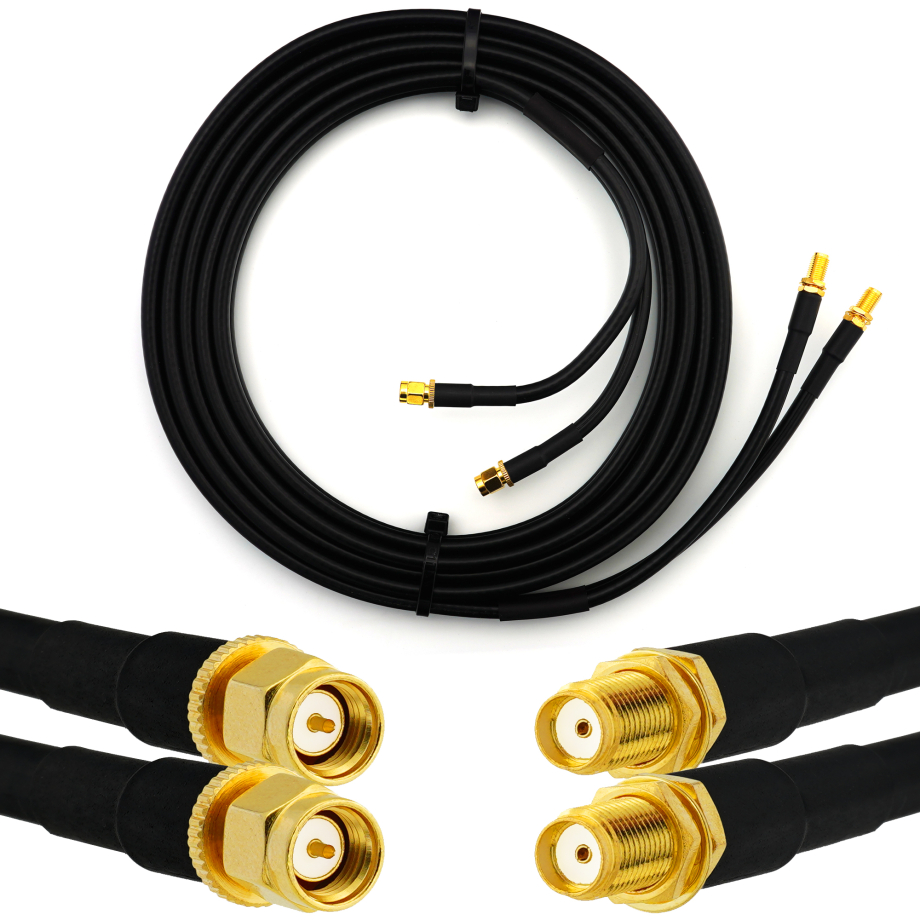

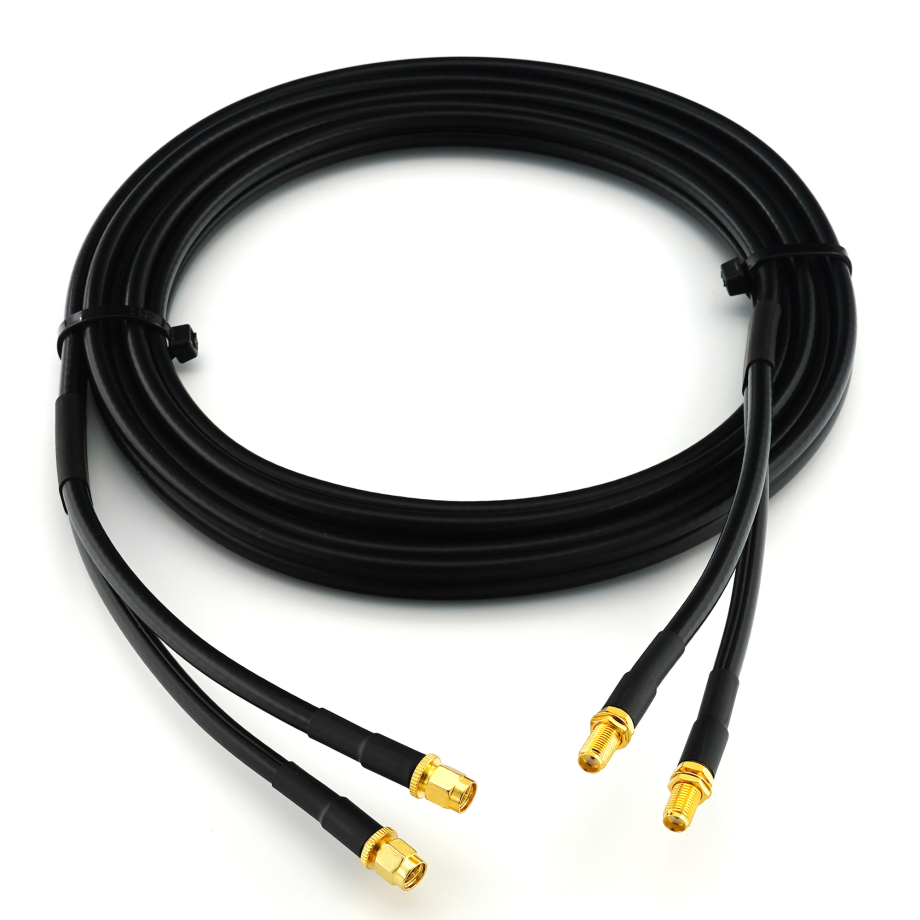

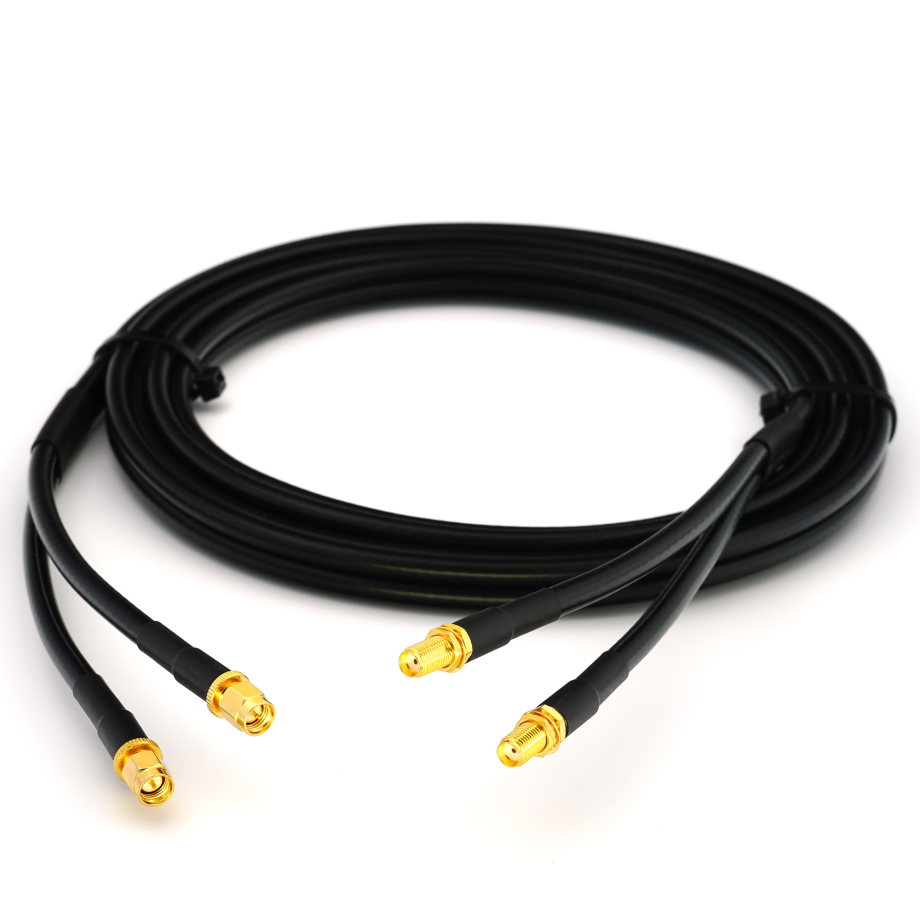

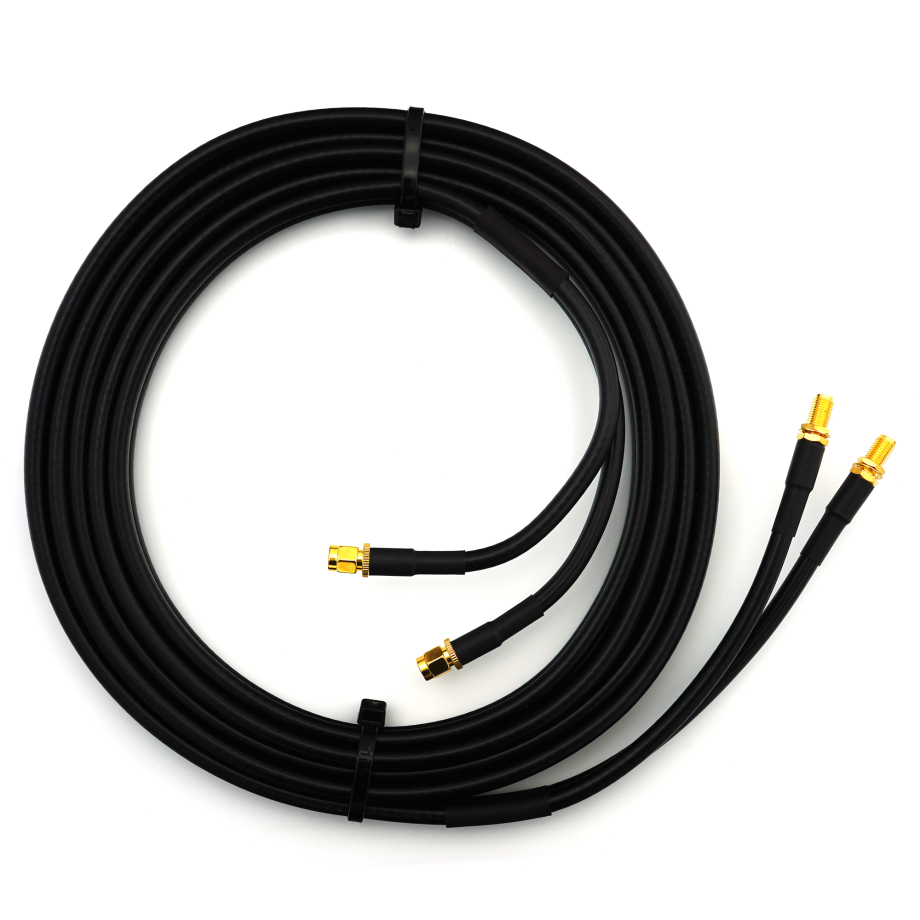

SMA Male to SMA Female 12m Twin Coaxial Cable — HF240 (LMR240 equivalent)
in stock
?
42.69 €
42.69 €
Specifications
Cable & Connector
Connector
(2) SMA Male - (2) SMA Female
Cable Type
LMR240 Twin
Cable Length
12 m
Conductor
Pure Copper
Conductor Diameter
Ø 1,40 mm
Dielectric
PEG
Dielectric Diameter
Ø 3,80 ± 0,10 mm
Shield
Aluminium Foil
Shield Dimensions
Ø 3,90 ± 0,10 mm
Shield Coverage
100 %
Braid
Tinned Copper
Braid Dimensions
Ø 4,30 ± 0,10 mm
Braid Coverage
77 %
Jacket
PVC
Jacket Diameter
Ø 6,10 ± 0,10 mm mm
Physical Parameters
Color
Black
Dimensions
19 x 19 x 5 cm
Operating Temperature
-30 °C to 70 °C
Environment
Indoor, Outdoor
Package Contains
Units
1 pcs
