650MHz CPU, 64MB RAM, 1x 100Mbps, 802.11b/g/n, 2.4GHz dual-chain, 1xSIM slot, 2G/3G/4G(LTE) bands 1/2/3/7/8/20
MikroTik wAP LTE kit
Short description
Brand
MikroTik
Manufacturer part number
RBwAPR-2nD&R11e-LTE
Warranty?
?
12 months
EAN
4752224005014
plug
Stock availability
146 pcs
in stock
Compare
103.44 €
Detailed description

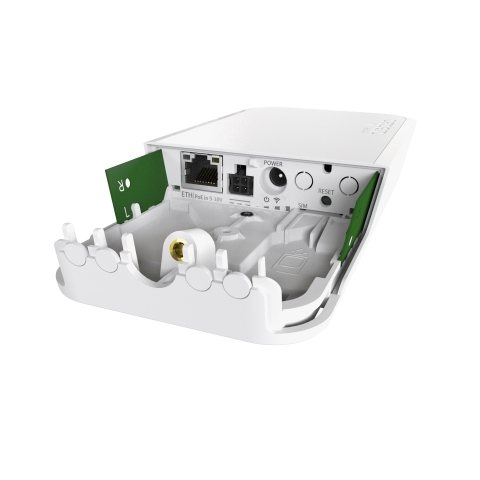

The wAP LTE is a small weatherproof wireless access point with a built-in cellular modem that supports 2G, 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.
This device is weatherproof and can be mounted outside the house, in the vehicle, on the porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand, so you can put it inside the building near a window.
LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options - 9-30 V PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.
Four versions are available:
- RBwAPR-2nD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.
- RBwAPR-2nD&R11e-LTE-US includes LTE modem that supports LTE bands 2,4,5 and 12, mostly used by mobile operators in United States, Canada and Latin America.
- wAP 4G kit (RBwAPR-2nD&R11e-4G) includes LTE modem that supports LTE FDD bands 3, 7, 20 and 31 as well as LTE TDD bands 41n, 42 and 43.
- RBwAPr-2nD is shipped without LTE card installed (empty miniPCI-e slot), so you can use your own LTE card.
Compare with similar products
| Ethernet Ports | ||||
| 1 x 100 Mbps | 1 x 100 Mbps | 2 x 1 Gbps | 2 x 1 Gbps | |
| LTE Category | ||||
| Cat4 – 150Mbps/50Mbps | Cat4 – 150Mbps/50Mbps | Cat6 – 300Mbps/50Mbps | ||
| Wireless Antenna Frequency Range & Gain | ||||
| 2.412 - 2.484 (GHz) 2 (dBi) | 2.412 - 2.484 (GHz) 2 (dBi) | 2.412 - 2.484 (GHz) 2.5 (dBi), 5.150 - 5.875 (GHz) 2.5 (dBi) | 2.412 - 2.484 (GHz) 2.5 (dBi), 5.150 - 5.875 (GHz) 2.5 (dBi) | |
| Mobile Antenna Frequency Range & Gain | ||||
| 0.8 - 2.6 (GHz) 2 (dBi) | 0.45 - 3.7 (GHz) 4 (dBi) | 0.7 - 2.6 (GHz) 4 (dBi) | ||
| Chipset | ||||
| QCA9531, 1 core, 650 MHz | QCA9531, 1 core, 650 MHz | IPQ-4018, 4 core, 716 MHz | IPQ-4018, 4 core, 716 MHz | |
| RAM | ||||
| 64 MB | 64 MB | 128 MB | 128 MB | |
| Storage Memory | ||||
| 16 MB | 16 MB | 16 MB | 16 MB | |
| Max Power Consumption | ||||
| 8 W | 8 W | 14 W | 16 W | |
| Ethernet Ports | 1 x 100 Mbps | 1 x 100 Mbps | 2 x 1 Gbps | 2 x 1 Gbps |
| LTE Category | Cat4 – 150Mbps/50Mbps | Cat4 – 150Mbps/50Mbps | Cat6 – 300Mbps/50Mbps | |
| Wireless Antenna Frequency Range & Gain | 2.412 - 2.484 (GHz) 2 (dBi) | 2.412 - 2.484 (GHz) 2 (dBi) | 2.412 - 2.484 (GHz) 2.5 (dBi), 5.150 - 5.875 (GHz) 2.5 (dBi) | 2.412 - 2.484 (GHz) 2.5 (dBi), 5.150 - 5.875 (GHz) 2.5 (dBi) |
| Mobile Antenna Frequency Range & Gain | 0.8 - 2.6 (GHz) 2 (dBi) | 0.45 - 3.7 (GHz) 4 (dBi) | 0.7 - 2.6 (GHz) 4 (dBi) | |
| Chipset | QCA9531, 1 core, 650 MHz | QCA9531, 1 core, 650 MHz | IPQ-4018, 4 core, 716 MHz | IPQ-4018, 4 core, 716 MHz |
| RAM | 64 MB | 64 MB | 128 MB | 128 MB |
| Storage Memory | 16 MB | 16 MB | 16 MB | 16 MB |
| Max Power Consumption | 8 W | 8 W | 14 W | 16 W |
