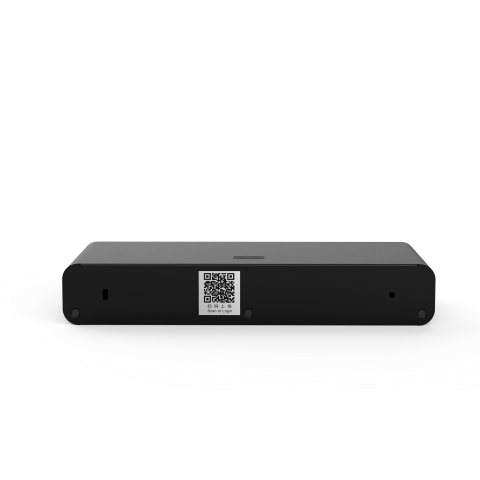

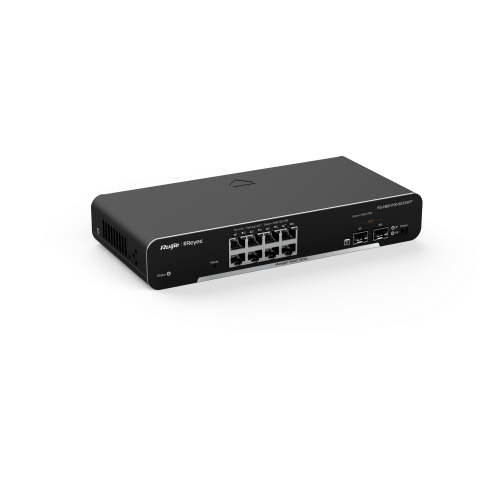

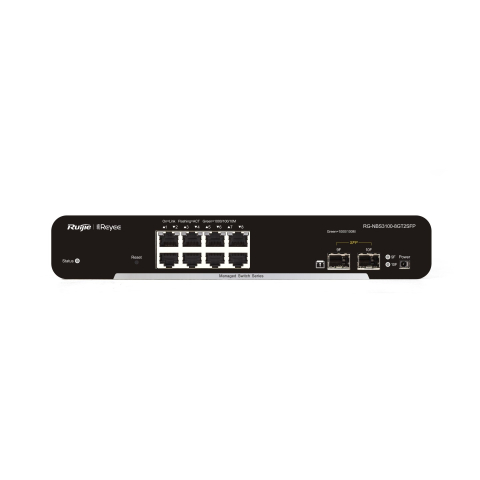

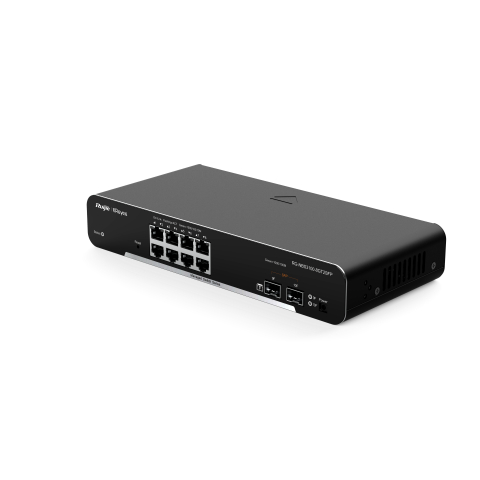

Reyee 10-Port Gigabit Layer 2 Managed PoE Switch

In stock
?
238.61
In stock
?
238.61

plug

Brand

Ruijie

Manufacturer part number

RG-NBS3100-8GT2SFP-P

Warranty
?

36 months

EAN

6971693270916

Detailed description

The Power of Reyee PoE Switches

The Reyee PoE Switch series is a revolutionary range of network switches explicitly designed for Power over Ethernet (PoE) applications. They provide high-speed, reliable and secure data transmission, while simultaneously powering up PoE-enabled devices like cameras, wireless access points, VoIP phones and other connected devices. Reyee switches are available in different versions, giving you the opportunity to choose the model with the features that will best meet your requirements.

Exceptional Performance and Reliability

Reyee PoE Switches provide an incredibly reliable and efficient network performance, making them ideal for applications across many industries and sectors. The RG-NBS3100 series offers switches with up to 8/24/48 ports and 2-4 SFP ports. Reyee PoE Switches provide robust performance with features such as port security, loop guard and storm control, making them a safe and secure choice for PoE applications.

Advanced Features for Increased Productivity

Reyee PoE Switches are packed with advanced features to ensure optimal performance and increased productivity. The RG-NBS3100 series supports PoE scheduling, PoE Auto Recovery and PoE port setting, as well as PoE surge protection and IEEE802.3at/af detection. By providing these advanced features, Reyee PoE Switches help to reduce network downtime and improve the overall user experience.

Multiple Security Policies Protect Your Network

Compare with similar products


Ethernet Ports
8 x 1 Gbps
24 x 1 Gbps
24 x 1 Gbps
48 x 1 Gbps
PoE Out Ports
8 x 802.3af (PoE), 802.3at (PoE+)
24 x 802.3af (PoE), 802.3at (PoE+)
24 x 802.3af (PoE), 802.3at (PoE+)
48 x 802.3af (PoE), 802.3at (PoE+)
SFP ports
2 x 1G SFP
4 x 10G SFP+
4 x 1G SFP
4 x 10G SFP+
Switching capacity
20 Gbps
128 Gbps
56 Gbps
176 Gbps
Forwarding rate
14.88 Mpps
95.24 Mpps
41.67 Mpps
130.95 Mpps
MAC address table
8000
16000
8000
16000
Link Aggregation Group (LAG)
8
16
8
16
ACL
1200
1900
1200
1900
Max Power Consumption
145 W
432 W
443 W
448 W
Dimensions
330 x 220 x 43.6 mm
440 x 357.6 x 43.6 mm
440 x 293 x 44 mm
440 x 358 x 44 mm
Weight
2 kg
4.75 kg
4.5 kg
5.4 kg

Ethernet Ports 8 x 1 Gbps
24 x 1 Gbps
24 x 1 Gbps
48 x 1 Gbps
PoE Out Ports 8 x 802.3af (PoE), 802.3at (PoE+)
24 x 802.3af (PoE), 802.3at (PoE+)
24 x 802.3af (PoE), 802.3at (PoE+)
48 x 802.3af (PoE), 802.3at (PoE+)
SFP ports2 x 1G SFP
4 x 10G SFP+
4 x 1G SFP
4 x 10G SFP+
Switching capacity20 Gbps
128 Gbps
56 Gbps
176 Gbps
Forwarding rate14.88 Mpps
95.24 Mpps
41.67 Mpps
130.95 Mpps
MAC address table8000
16000
8000
16000
Link Aggregation Group (LAG)8
16
8
16
ACL1200
1900
1200
1900
Max Power Consumption 145 W
432 W
443 W
448 W
Dimensions 330 x 220 x 43.6 mm
440 x 357.6 x 43.6 mm
440 x 293 x 44 mm
440 x 358 x 44 mm
Weight 2 kg
4.75 kg
4.5 kg
5.4 kg
