Manufacturer part number
B525s-23ab
Warranty
?
12 months
EAN
6901443155910

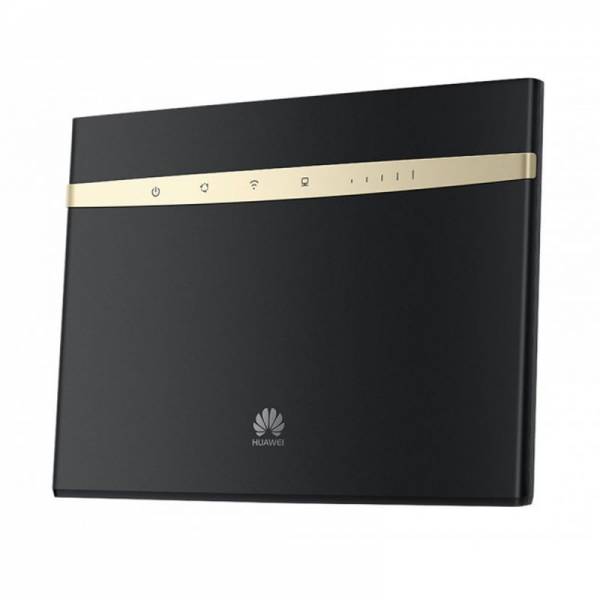

Huawei B525s-23a Black
This item has been discontinued
We recommend to use the product presented below
Huawei B535-235a LTE7 Mobile WiFi White
B535-235a-W
Available alternatives
Detailed description
Technical Specs / Datasheet
Specifications
Mobile Network
Mobile Network Generation
2G (GSM), 3G (UMTS), 4G (LTE)
LTE Category
Cat6 - 300Mbps/50Mbps
FDD LTE Frequency Bands
1 (2100MHz), 3 (1800MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 32 (1400MHz)
TDD LTE Frequency Bands
38 (2600MHz)
SIM Card Slot
Micro-SIM
Wireless Network
Standards
802.11a/b/g/n/ac
2.4GHz Radio Rate
300 Mbps
5GHz Radio Rate
1.3 Gbps
Antenna
Antenna Design
Omni
Wireless Antenna Frequency Range & Gain
2.402 - 2.472 (GHz) 1 (dBi), 5.150 - 5.725 (GHz) 1 (dBi)
Mobile Antenna Frequency Range & Gain
0.703 - 2.690 (GHz) 1 (dBi)
Mobile Antenna Gain
1 dBi
Polarization
Linear
VSWR
< 3
Impedance
50 Ω

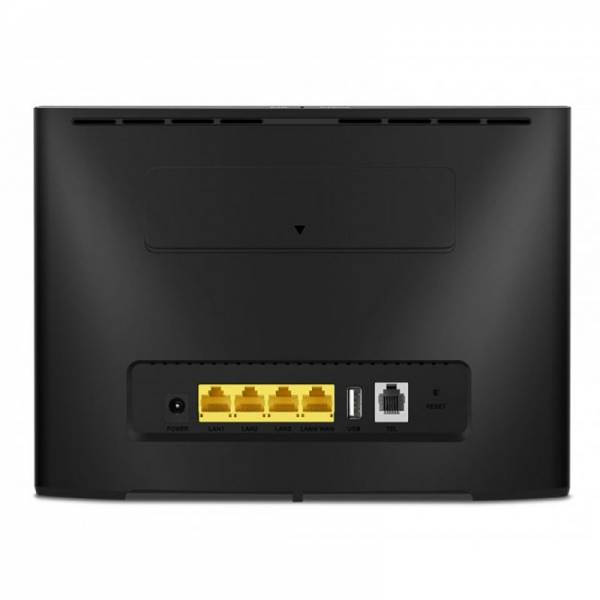

Interfaces
RJ45 Ports
(4) 1 Gbps
USB Ports
(1) USB-A 2.0
RJ11 Ports
x1
Power
Power Method
AC/DC Adapter
Power Supply
External AC/DC Adapter
Max Power Consumption
20 W
Power Connector
DC Plug 2.1 x 5.5 mm
Physical Parameters
Color
Black
Dimensions
226 x 163 x 52 mm
Weight
0.370 kg
Operating Temperature
0 °C to 40 °C
Environment
Indoor
Mounting Method
Tabletop
Package Contains
External Power Supply
Included
