Product name
Connection box Cat6a FTP IP65
Warranty
?
12 months
Manufacturer part number
COUPL-STP6A-CR-IP
EAN
0708747440973

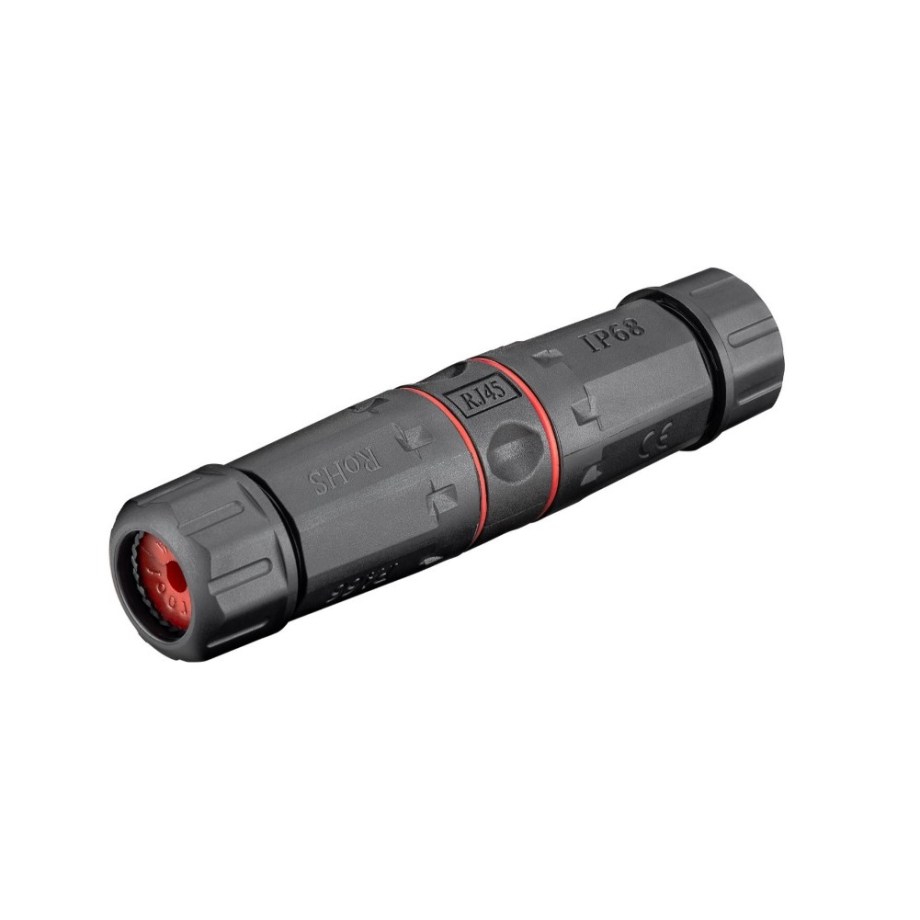

Cat6a FTP IP65 Connection Box – Waterproof Tool-Free Ethernet Coupler for Outdoor & Industrial Use, PoE+
- Cat.6a FTP connection box for fast, tool-free cable joining; ideal for repairing broken or damaged network cables in outdoor and industrial installations.
- IP68 sealed design helps protect against dirt, dust and moisture, making this Ethernet connector a reliable choice for harsh environments.
- Supports PoE+ (IEEE 802.3at) for power and data over one cable, with no active components inside the box.
- Very thin connection module with waterproof cable gland; fits cables 4.0–8.0 mm in diameter and conductors 0.48–0.65 mm (AWG 22–26).
- Designed for foiled Cat.6a cables (FTP), this sealed junction box offers quick clamped installation for secure, stable network connections.
6.96 €
In stock
?
6.96 €
In stock
?
Detailed description

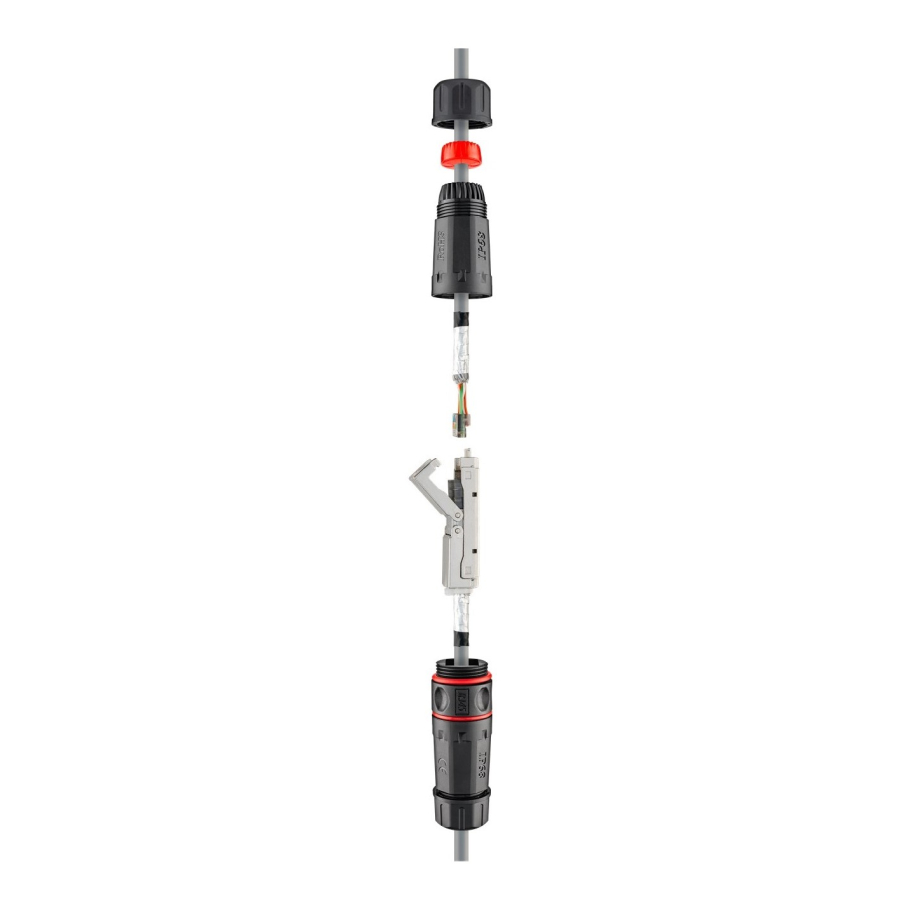

Sealed switch connector for connecting Cat.6a foiled cables (FTP). Quick and easy installation – clamped without tools. Cable connector for outdoor and industrial use provides protection against dirt, dust and moisture (protection class IP68). It is an ideal solution for connecting broken or damaged cables. The box does not contain any active elements.
Features:
- Very thin connection module with waterproof cable gland
- Conductor thickness from 0.48 to 0.65 mm (AWG 22 to 26)
- Suitable for cables with a diameter of 4.0 to 8.0 mm
- Supports PoE+ (IEEE 802.3at)
Specifications
Cable & Connector
Cable Type
Cat 6A
Physical Parameters
Color
Black
Ingress Protection Code
IP68
Environment
Outdoor
