Product name
30° Asymmetrical Beam Antenna, TwistPort
Warranty
?
12 months
Manufacturer part number
AH2030-TP
EAN
0708747435726
30° Asymmetrical Horn Antenna with TwistPort™ | High-Gain, Zero-Sidelobe Beam
- High-gain 30° asymmetrical horn antenna delivers very high beam efficiency with zero side lobes for focused coverage and strong noise rejection in dense, co-location deployments.
- TwistPort™ twist-and-lock waveguide port supports connectivity to a wide range of third-party radios via TwistPort™ Adaptors for flexible wireless network integration.
- BeamSwitch™ allows 90° rotation by swapping the handle and bracket, giving a 20° azimuth and 30° elevation beamwidth option for deployment flexibility.
- Stable gain and radiation pattern across the useful bandwidth help maintain consistent coverage and reliable performance throughout the antenna’s operating range.
- Extruded aluminium ring adds structural strength to the antenna attachment and makes BeamSwitch™ flipping quick and easy for efficient installation.
-40% 328.99 €
199.00 €
out of stock
?
-40% 328.99 €
199.00 €
out of stock
?
Expected arrival?
?
arrival date unknown
Available alternatives
Detailed description

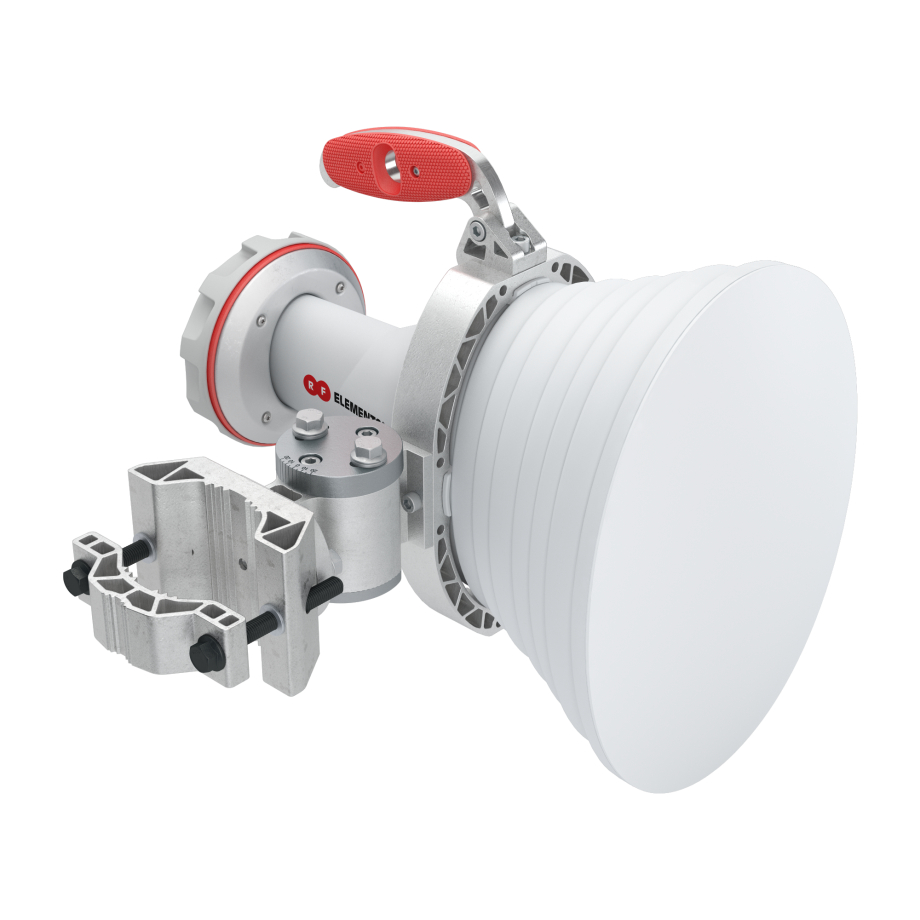

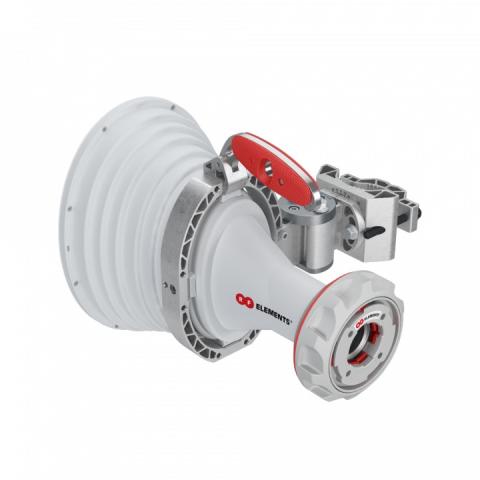

Horn Antenna with TwistPort™ Connector
30° Asymmetrical Horn TP Antenna has high gain and zero side lobes, meaning very high beam efficiency. Its radiation pattern is wide in the azimuth and narrow in the elevation plane. The stability of gain, radiation pattern, and resulting coverage is excellent across the whole useful bandwidth. These properties and outstanding noise rejection favor 30° Asymmetrical Horn TP Antenna to be used in high customer density and co-location sites. TwistPort™ - our revolutionary patent-pending twist-and-lock waveguide port enables connectivity to a wide range of third-party radios using TwistPort™ Adaptors.
BeamSwitch™ feature enables mounting of the antenna with 90° rotation by swapping the position of the handle and the bracket. AH2030-TP thus can provide 20° azimuth and 30° elevation beamwidth option. The extruded aluminium ring improves the structural strength of the antenna attachment and makes the BeamSwitch™ flip easy and fast.
Specifications
Antenna
Antenna Design
Horn
Wireless Antenna Frequency Range & Gain
5.18 - 6 (GHz) 20.5 (dBi)
Beamwidth
30 ° Vertical, 30 ° Horizontal
Polarization
Dual Linear
F/B ratio
> 35 dB
Connectors
RF Connectors
(1) TwistPort
Physical Parameters
Ingress Protection Code
IP55
Dimensions
483 x 334 x 235 mm
Weight
4.2 kg
Operating Temperature
-35 °C to 60 °C
Environment
Outdoor
Mounting Method
Rated Wind Velocity
160 km/h
