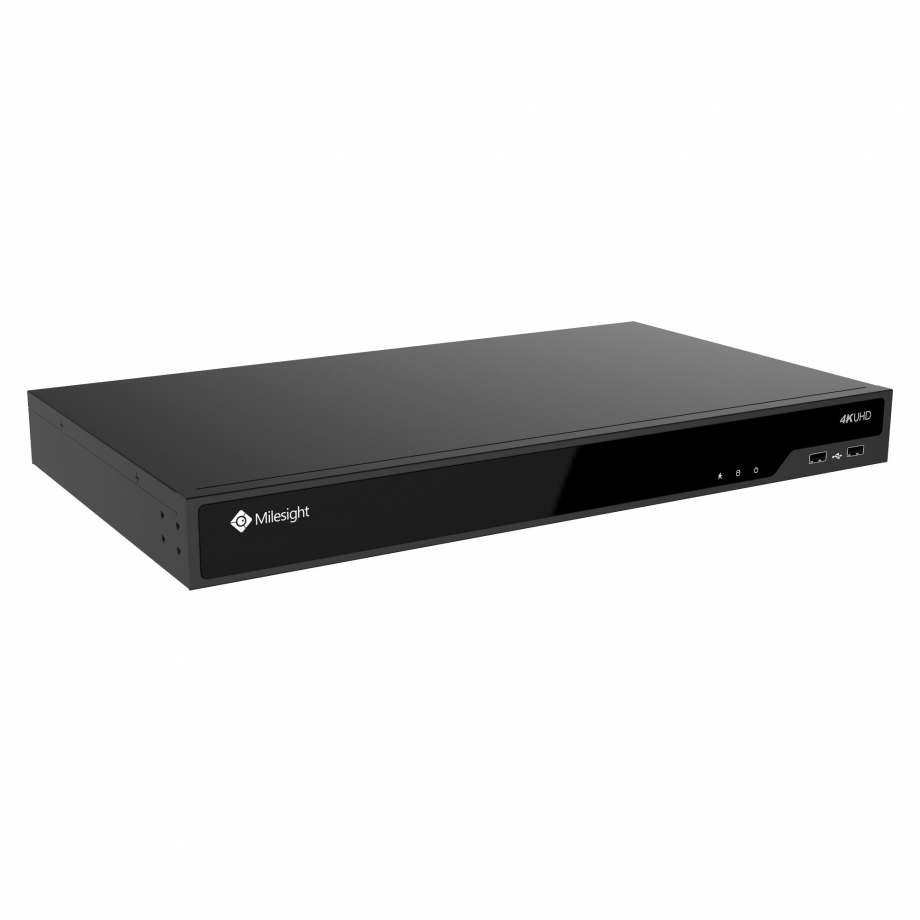

16-Channel PoE Pro NVR 5000
This item has been discontinued
We recommend to use the product presented below
16-Channel 4K H.265 Pro NVR 5000
MS-N5016-NE
This item has been discontinued
We recommend to use the product presented below
16-Channel 4K H.265 Pro NVR 5000
MS-N5016-NE
Available alternatives
Detailed description
Technical Specs / Datasheet
Specifications
NVR
Supported Video Formats
H.264, H.264+, H.265, H.265+
IP Video Input
16 channels
Max Recording Resolution
8 MP
Interfaces
RJ45 Ports
(16) 100 Mbps, (1) 1 Gbps
Number of PoE Ports
16 pcs
PoE Out Standards
802.3af (PoE), 802.3at (PoE+)
USB Ports
(2) USB-A 2.0
Video Ports
HDMI, VGA
Audio Ports
1 Input Line, 1 Output Line
System Specification
Hard Drive Bay
(2) 3.5" SATA
Hard Drive
Not Included
Max Capacity for Each HDD
10 TB
Power
Power Method
AC/DC Adapter
Power Supply
Internal PSU
Supported Input Voltage
100 - 240 V AC
Max Power Consumption
215 W
Physical Parameters
Color
Black
Number of Rack Units
1U
Dimensions
440 x 251 x 44.4 mm
Weight
3.5 kg
Operating Temperature
-10 °C to 55 °C
Environment
Indoor
Mounting Method
RackMount
Form Factor
Rack-mounted 19"
