Ubiquiti Fail-Safe Strike Lock 8mm

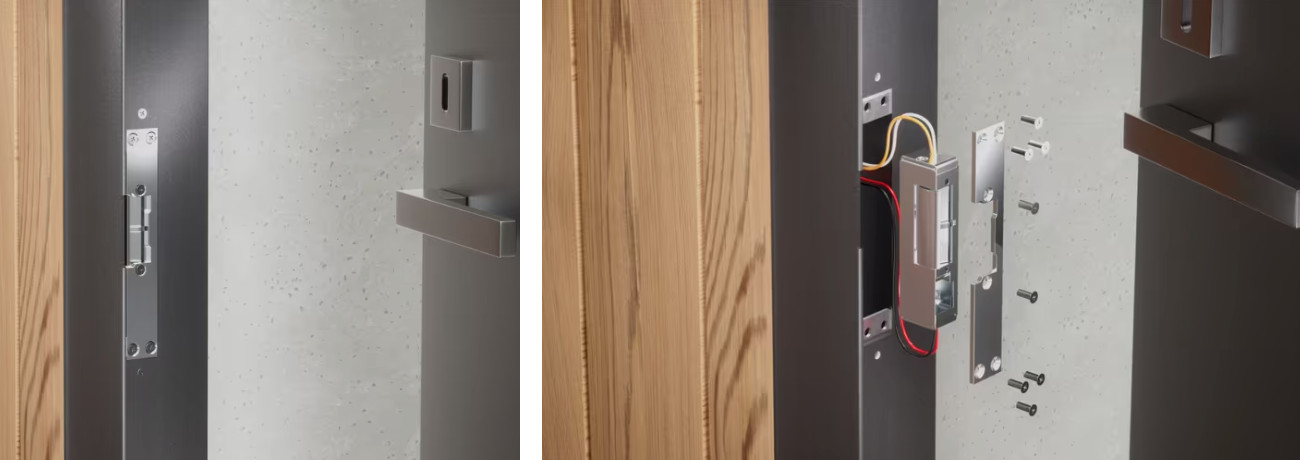

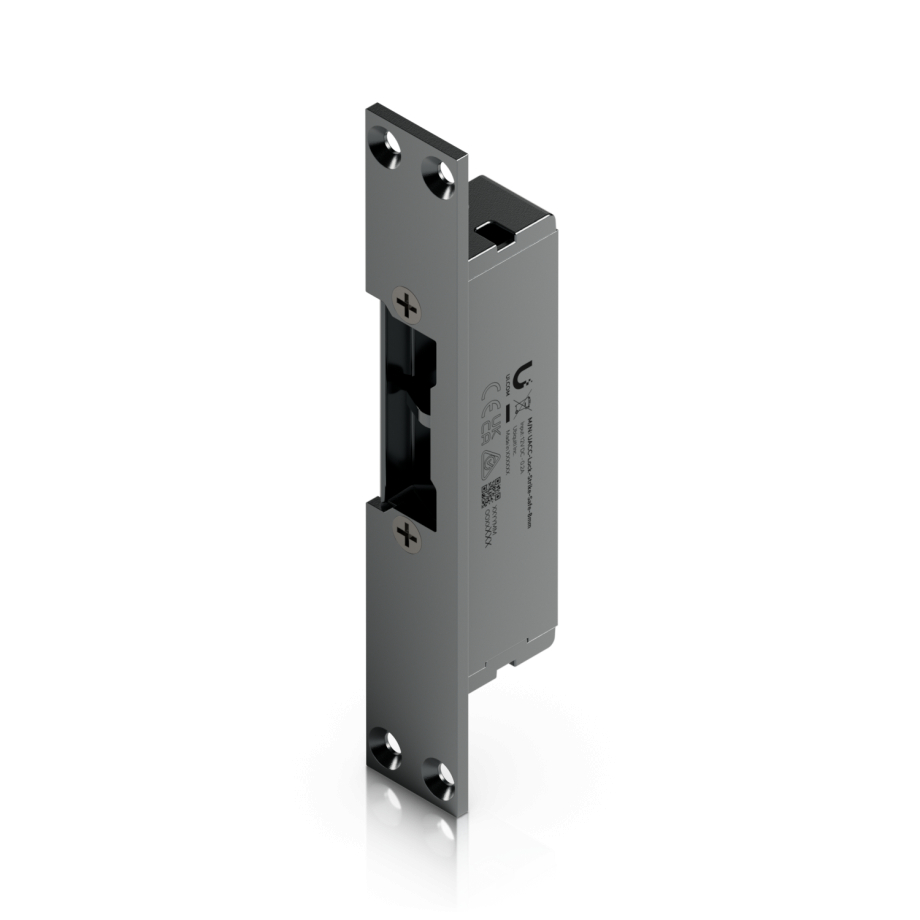

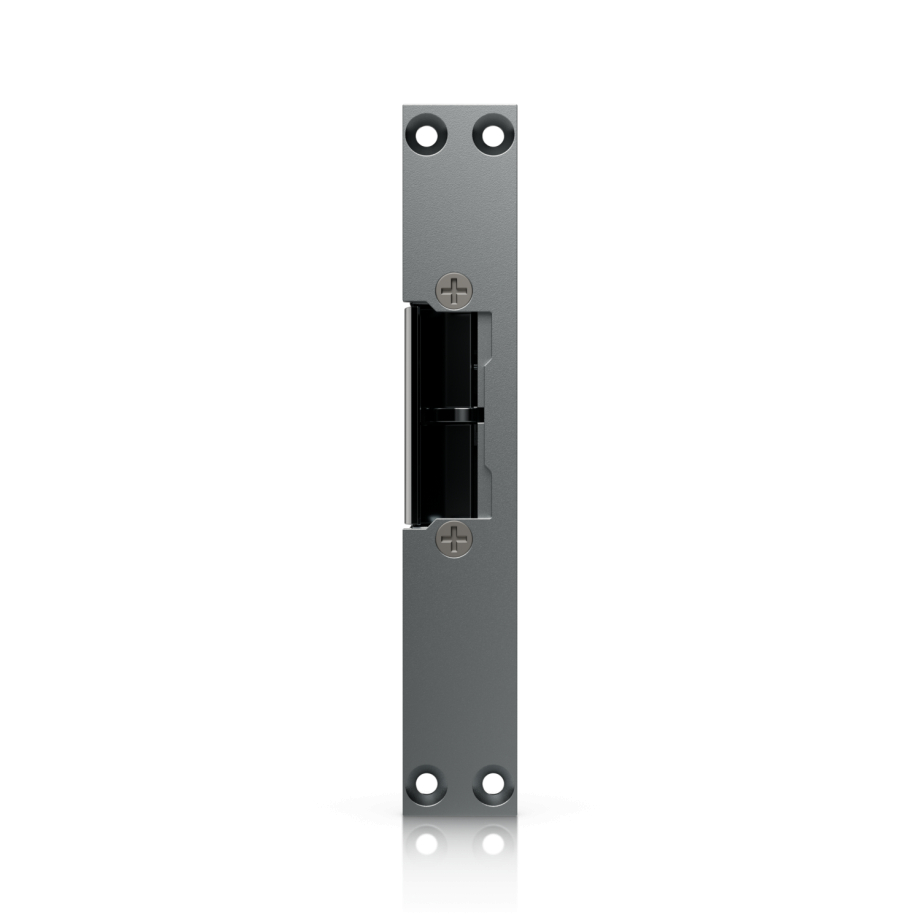

The Ubiquiti Fail-Safe Strike Lock 8mm is a professional electronic locking solution designed for secure and efficient access control in commercial, office, and industrial environments. Featuring a fail-safe locking mechanism, the lock automatically unlocks during power loss, helping ensure safe emergency exit access while maintaining compatibility with modern security systems. With a holding force of 227 kg (500 lb), the strike lock provides dependable door retention for controlled entry points and high-traffic installations. The device is compatible with single wooden and metal doors, making it suitable for a wide range of access control projects. Its compact lock body dimensions of 112 x 21 x 28 mm allow discreet installation within recessed door frames, while the included short and long stainless steel front plates provide additional mounting flexibility.

The lock body is constructed from durable zinc alloy, while the front plates and latches use stainless steel for long-term mechanical reliability and resistance to daily wear. Designed for efficient operation, the lock supports a 12V DC ±10% input voltage and operates with 200mA ±10% current consumption. The fail-safe configuration makes the lock ideal for buildings that prioritize emergency egress and safety compliance. Combined with professional-grade construction and reliable electrical operation, the UACC Lock Strike Safe 8mm is a dependable solution for modern access control installations.

The Ubiquiti Fail-Safe Strike Lock 8mm is engineered for seamless integration with professional access control and monitoring systems. The lock includes dedicated wiring connections for both locking control and door status monitoring, simplifying installation and improving compatibility with electronic security infrastructure. The wiring configuration features Lock 12V/NC, Lock 12V/COM, DPS/-, and DPS/+ connections, enabling stable communication between the strike lock and compatible controllers. A built-in Door Position Sensor (DPS) provides real-time monitoring of door activity using dry contact logic. When the door is open, the DPS/+ and DPS/- contacts remain open, while a closed door creates a short connection between the terminals. This functionality allows connected systems to accurately monitor entry status, automate alerts, and improve overall access management efficiency.

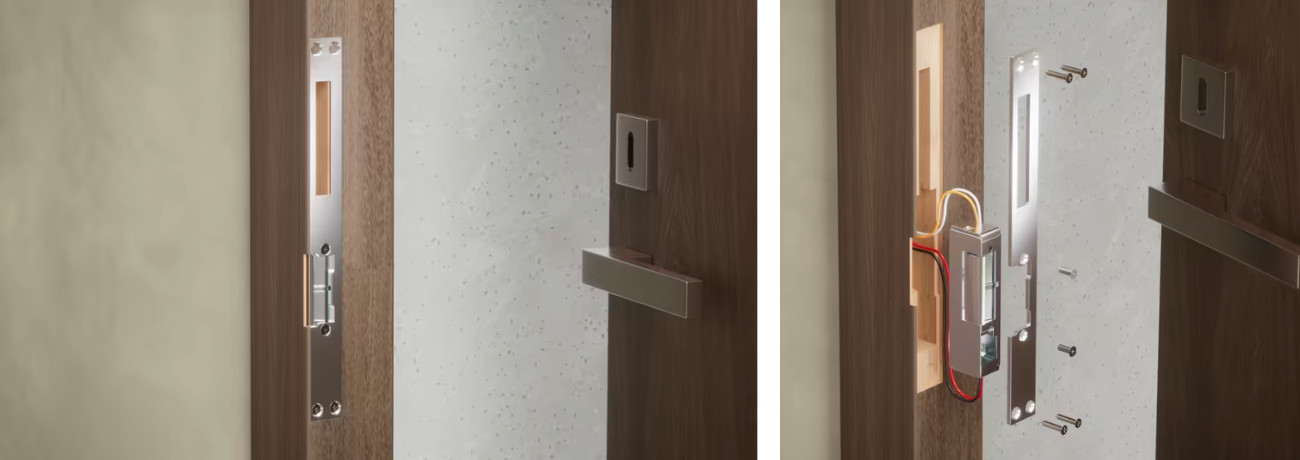

The door status contact supports ratings up to 30V DC and 0.1A, ensuring compatibility with a broad range of professional monitoring systems. The fail-safe operation mode ensures that the door unlocks automatically when power is interrupted, making the lock suitable for installations where safe evacuation and emergency access are priorities. The recessed mounting design supports clean and secure installation within door frames while maintaining a professional appearance. Combining advanced monitoring functionality with dependable electrical integration, the UACC Lock Strike Safe 8mm is well suited for modern building security and controlled access applications.

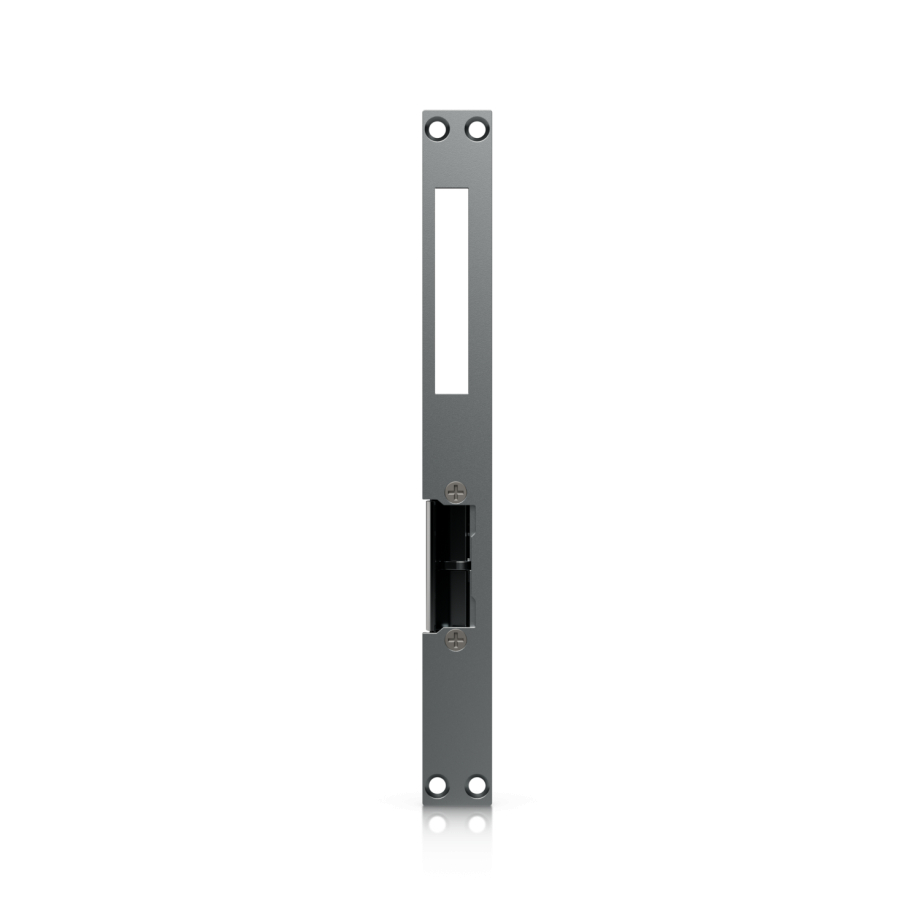

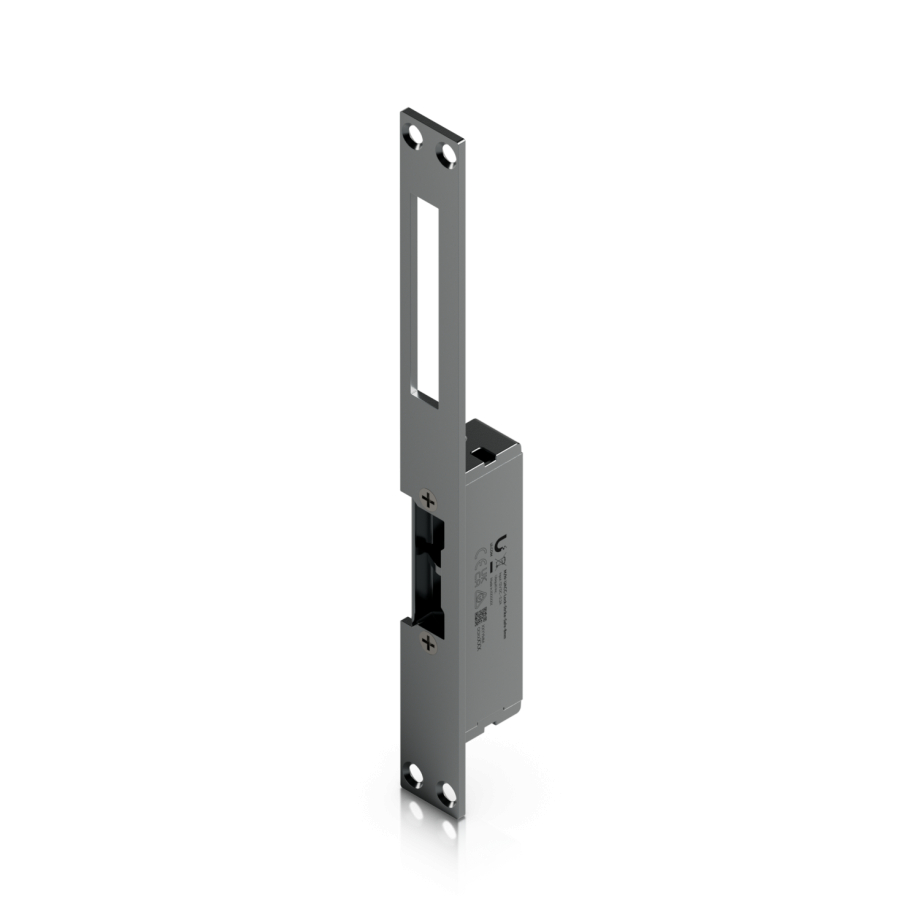

Designed for long-term reliability, the Ubiquiti Fail-Safe Strike Lock 8mm combines compact dimensions with durable construction for demanding security environments. The lock body weighs 200 g, while the included stainless steel front plates weigh 62 g for the short plate and 97 g for the long plate. This balanced construction provides strength and durability without adding unnecessary installation complexity. The low-profile design allows discreet integration into recessed door frames while maintaining professional installation aesthetics. The strike lock is built to operate reliably across a wide range of environmental conditions. It supports operating temperatures from -10 to 60 °C and storage temperatures from -20 to 70 °C, allowing stable performance in both indoor and challenging industrial environments.

The device also supports operating humidity levels from 5% to 90% non-condensing, helping maintain dependable functionality in varying climate conditions. For professional deployment requirements, the lock is NDAA compliant and certified according to FCC, IC, and CE standards. These certifications support use in commercial security systems where regulatory compliance and trusted hardware are essential. The combination of durable zinc alloy construction, stainless steel components, environmental resilience, and industry certifications makes the UACC Lock Strike Safe 8mm a reliable solution for secure access control systems requiring dependable long-term operation.
