Teltonika DAP142 RS232 Wireless Access Point

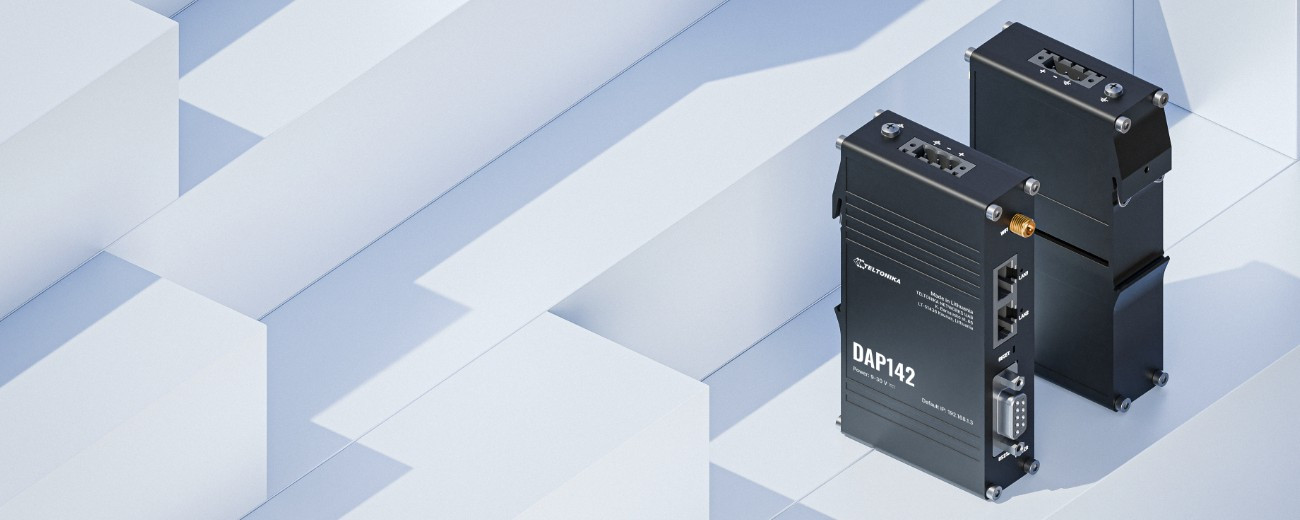

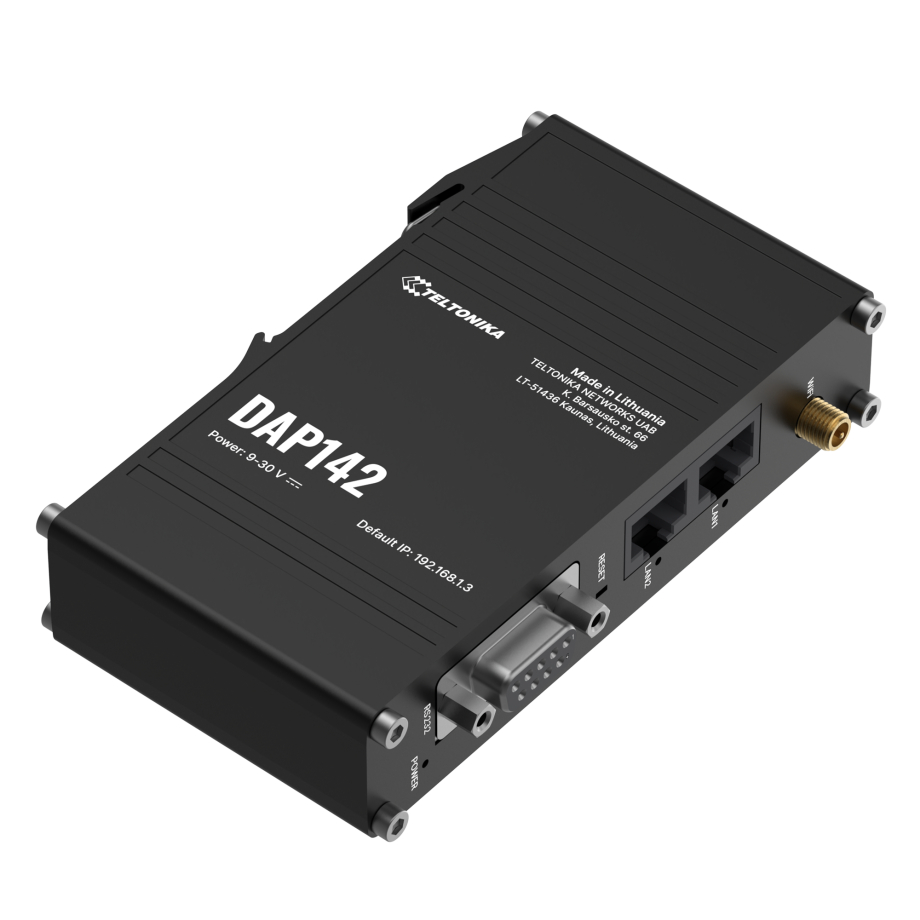

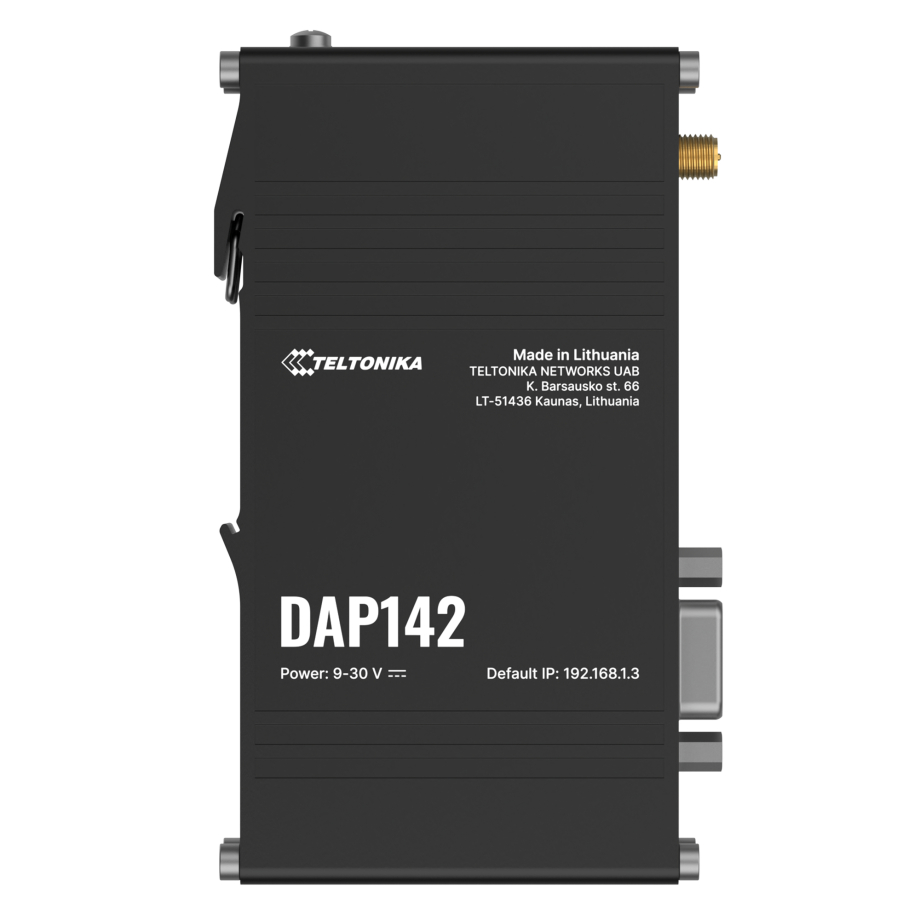

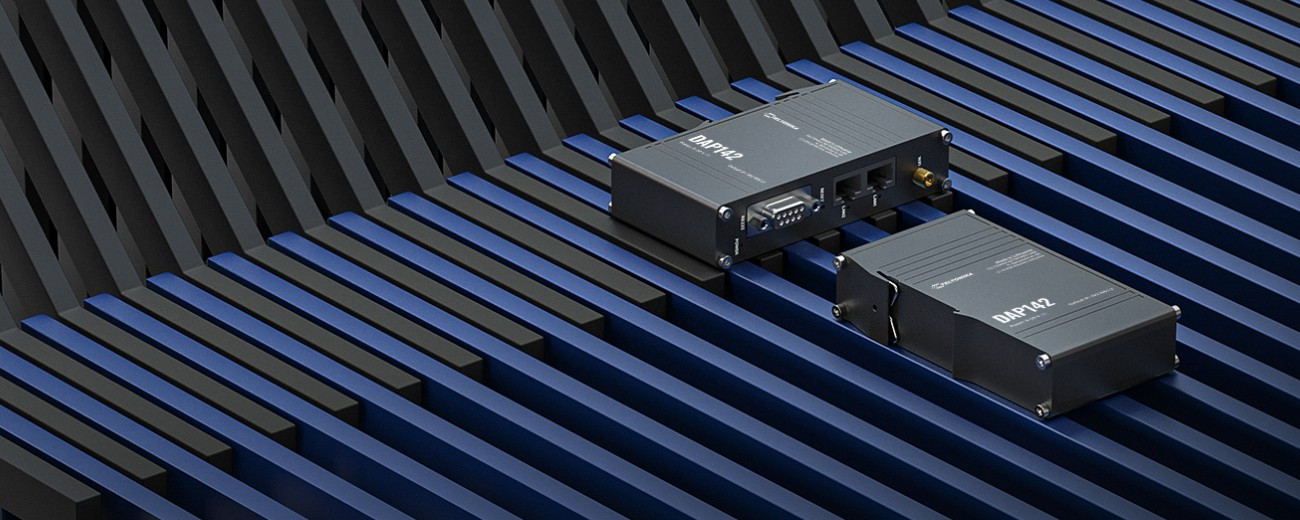

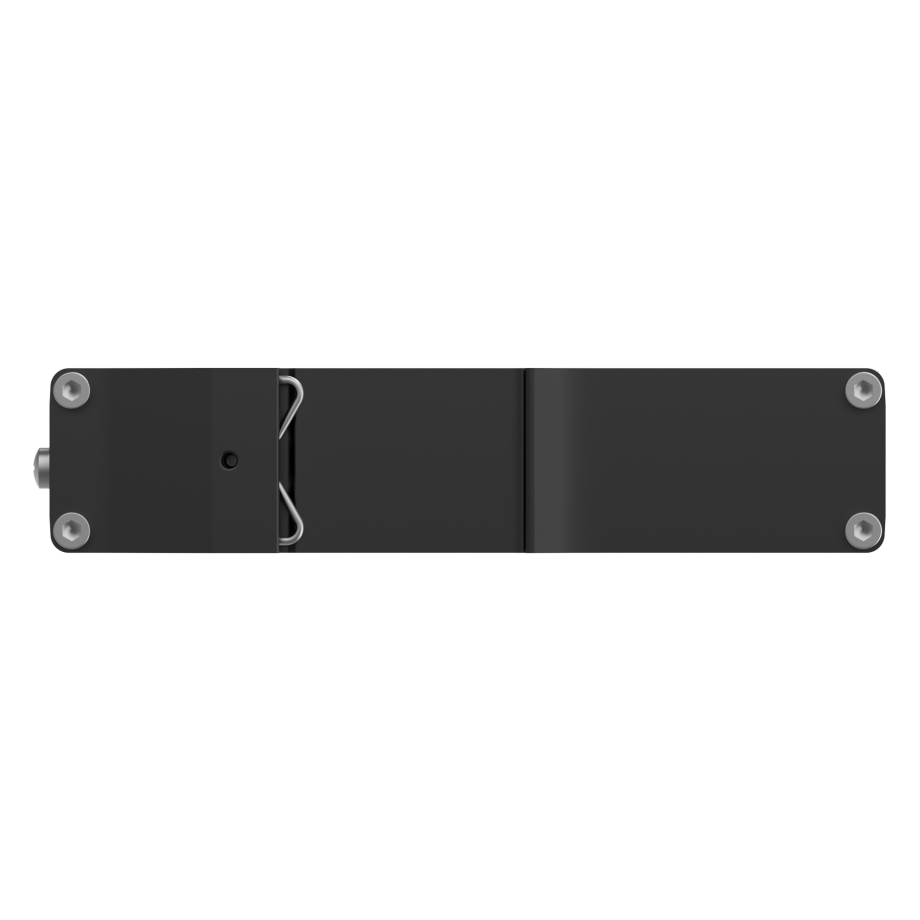

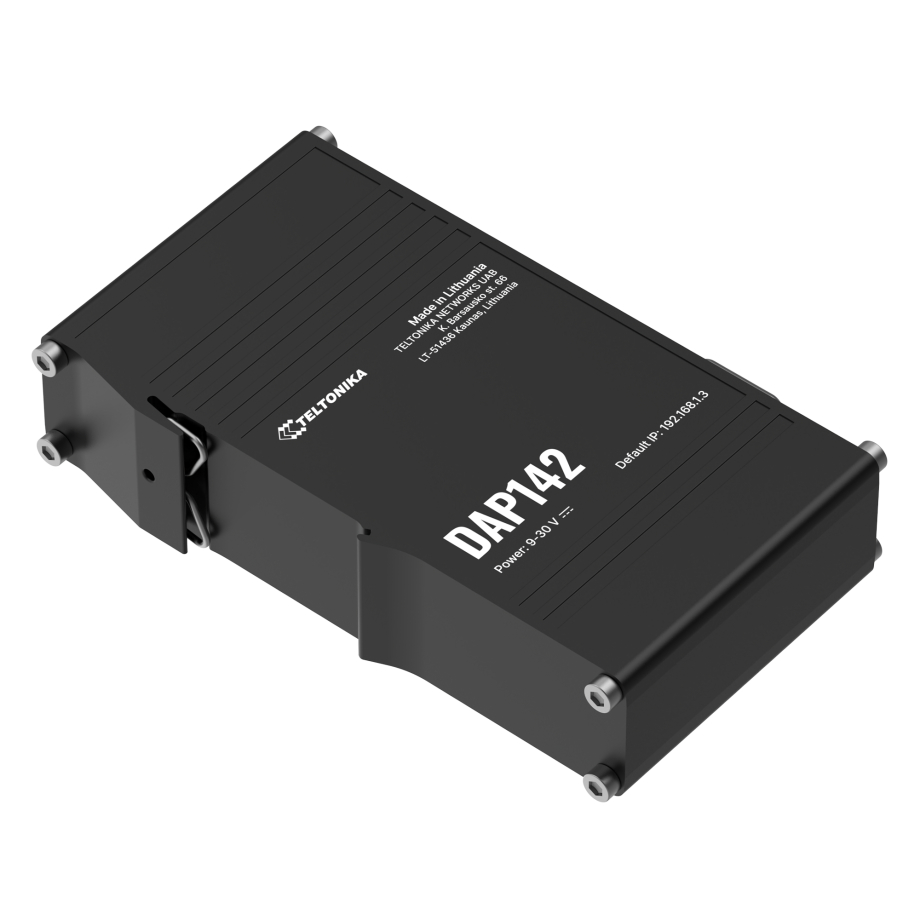

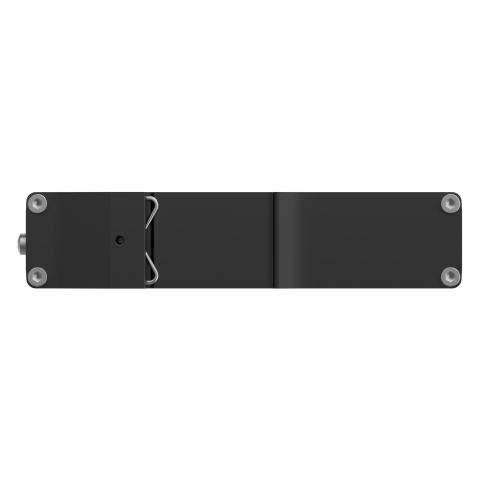

The Teltonika DAP142 is purpose-built to perform reliably in challenging industrial environments. Housed in a robust aluminium casing, it offers high durability and protection, meeting IP30 standards to guard against dust and small debris. The DAP142 is equipped with an integrated DIN rail mounting bracket for efficient installation in standard industrial enclosures or control panels. Support for wall and flat surface mounting is also available via optional accessory kits, which must be purchased separately. The compact dimensions and lightweight design make it a space-efficient and manageable solution, ideal for confined or structured industrial settings. With a wide operating range of –40 °C to +75 °C, the device delivers reliable performance in extreme temperatures. This combination of rugged build quality, mounting flexibility, and temperature resistance makes the DAP142 ideal for various sectors, including manufacturing, logistics, energy, and transportation, where reliability and ease of integration are essential.

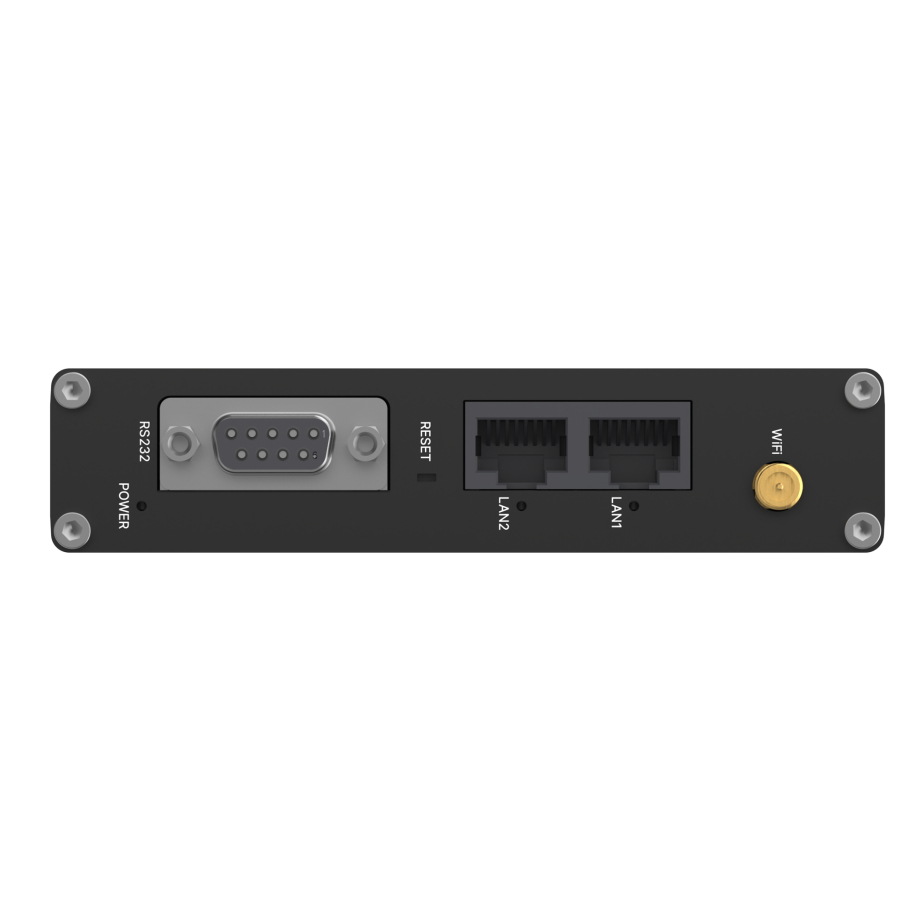

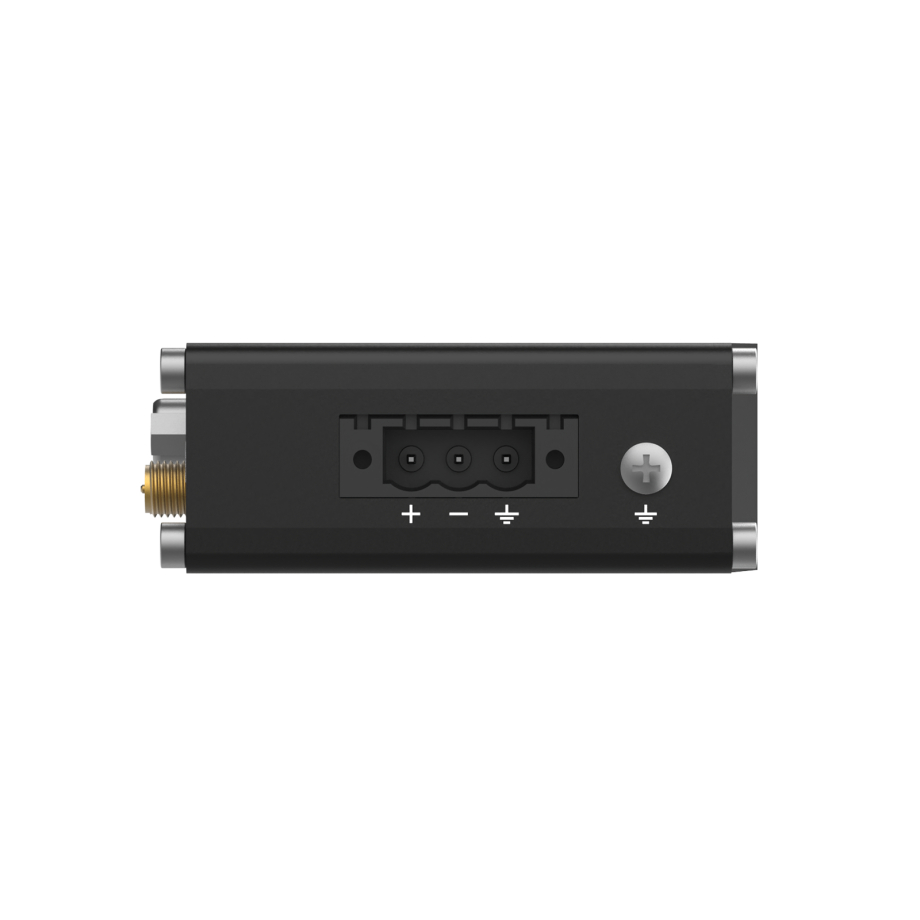

DAP142 is equipped with powerful wireless and wired connectivity to ensure fast, stable, and seamless communication. Supporting Wi‑Fi 4 (IEEE 802.11b/g/n), it enables high-speed wireless performance and includes Mesh networking support for flexible topologies and improved coverage. With Fast Roaming capability, connected devices can switch access points smoothly without interruption, that is perfect for mobile equipment or large-scale deployments. The access point supports up to 50 simultaneous Wi-Fi clients, making it suitable for high-density industrial use. It features two 10/100 Mbps Ethernet ports with auto MDI/MDIX functionality, allowing automatic detection of cable types. Additionally, a DB9 RS-232 serial port supports integration with legacy industrial equipment. Power can be supplied either through the dedicated 3-pin DC connector or via Passive PoE using the RJ45 Ethernet port, offering flexible installation options and simplified cabling.

The Teltonika DAP142 offers comprehensive security features to ensure safe and reliable wireless networking in industrial environments. It supports WPA, WPA2, and WPA3 encryption standards, including WPA3-SAE/EAP and Opportunistic Wireless Encryption (OWE), providing protection against modern cybersecurity threats. Additional features such as MAC address filtering, hidden SSID mode, and QR-code onboarding further enhance network control and simplify access management. The device supports a wide range of networking protocols and functionalities, including VPNs, SSH, SNMP, and firewall options, along with routing protocols like BGP, RIP, and OSPF. These capabilities ensure it can integrate seamlessly into complex and segmented network infrastructures. Its power consumption of under 2 W during operation and less than 1 W in idle mode ensures exceptional energy efficiency. A grounding screw and physical reset button are included to ensure electrical safety and quick troubleshooting. Altogether, DAP142 delivers enterprise-grade performance in a compact, install-friendly form.
