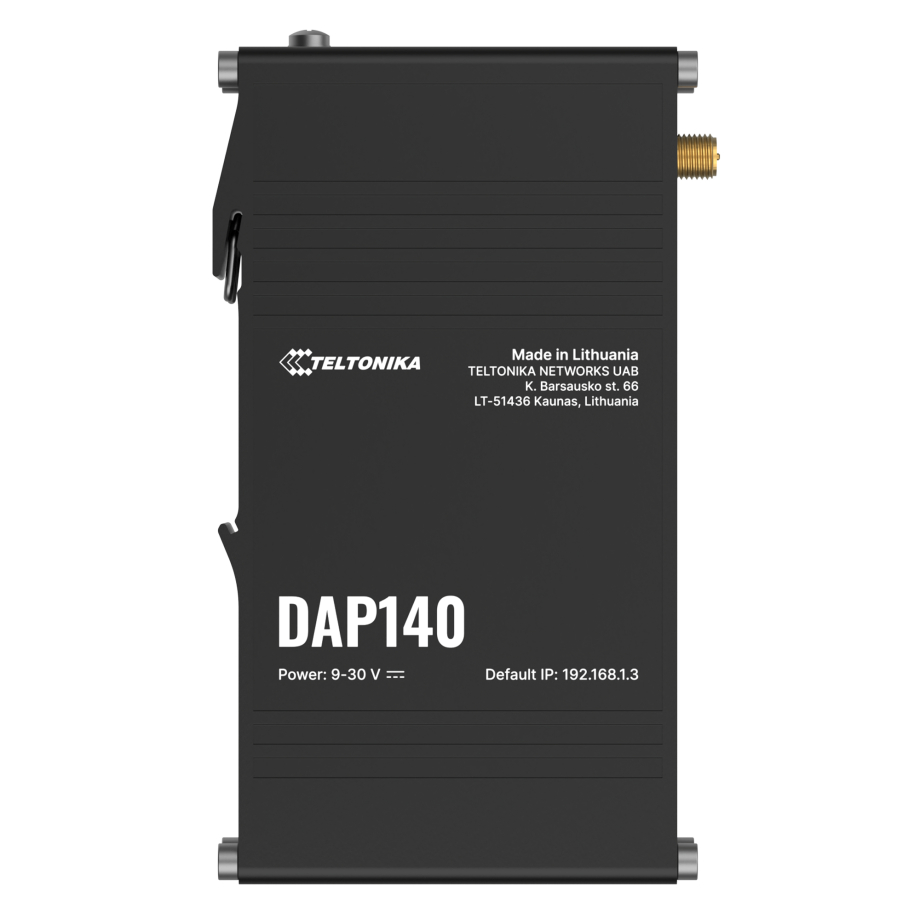

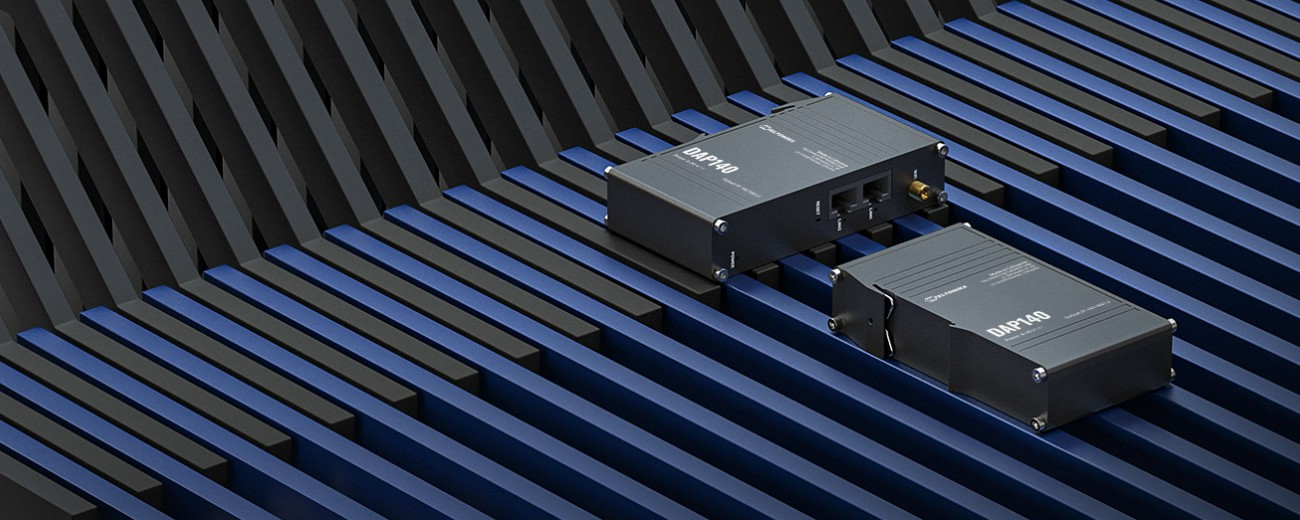

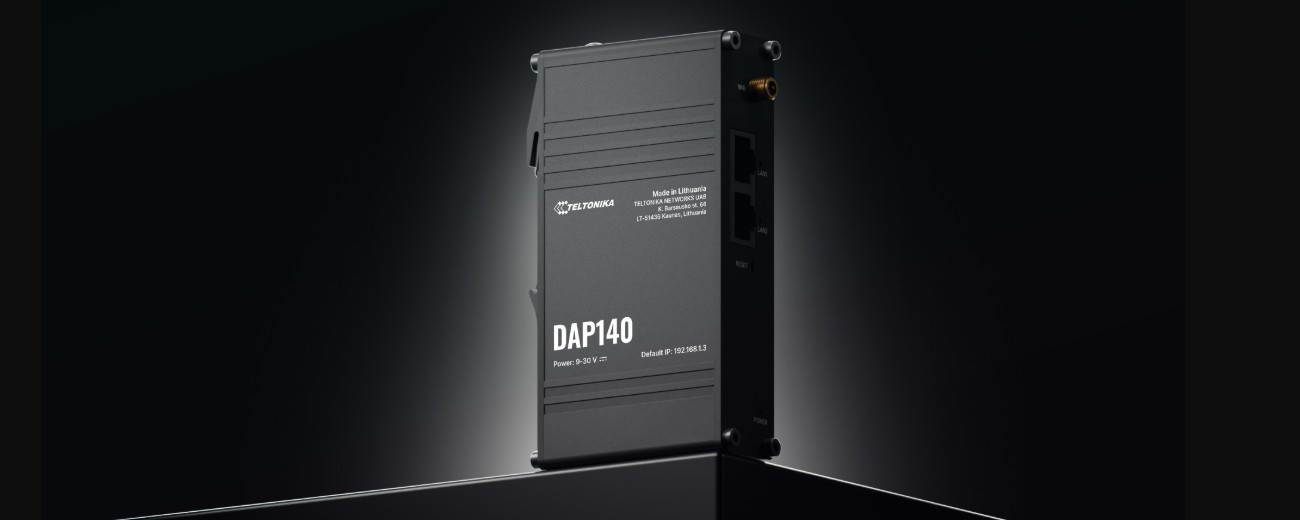

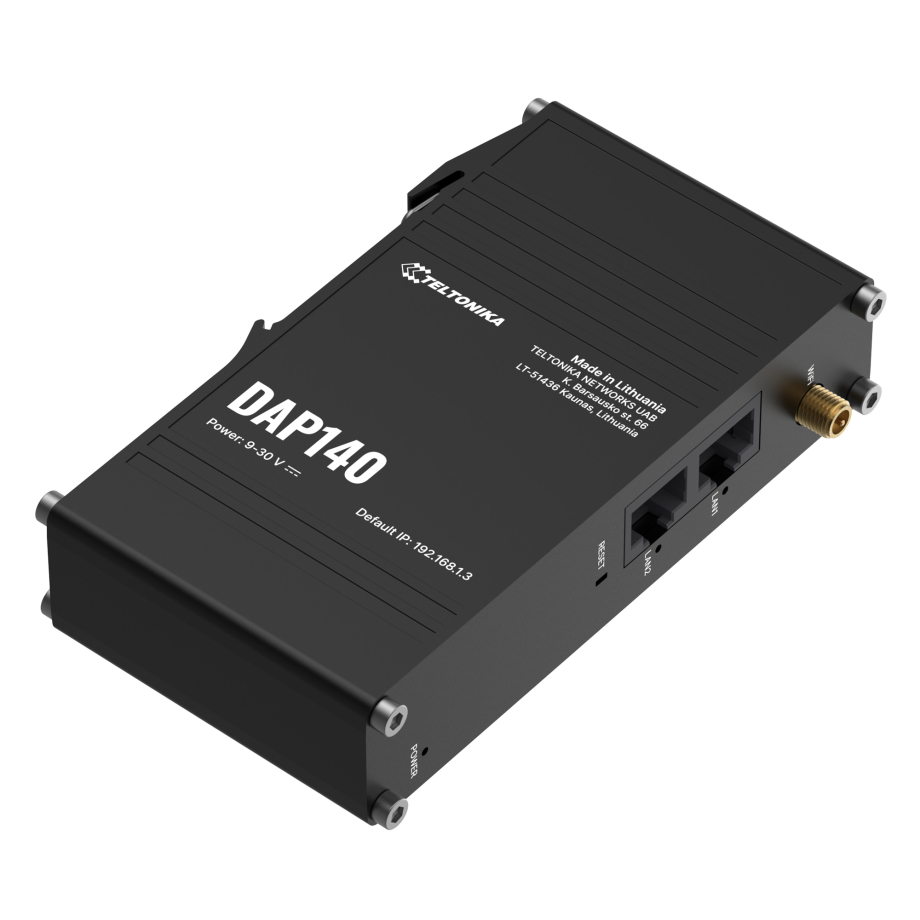

Teltonika DAP140 Wireless Access Point

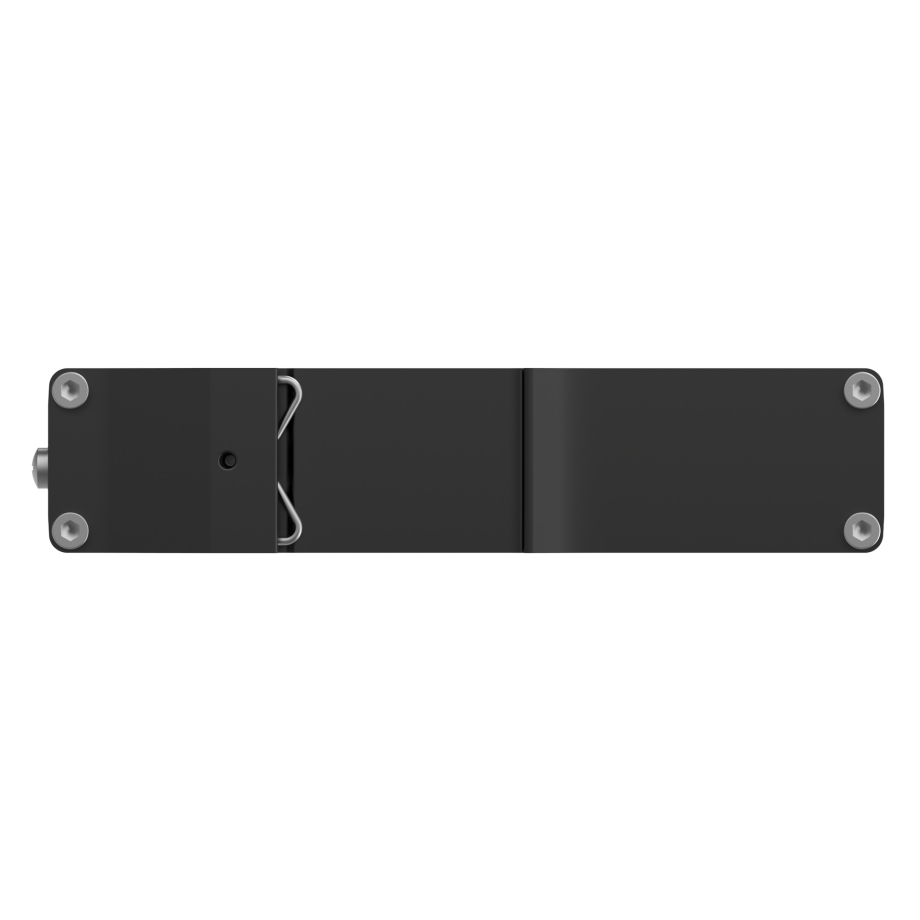

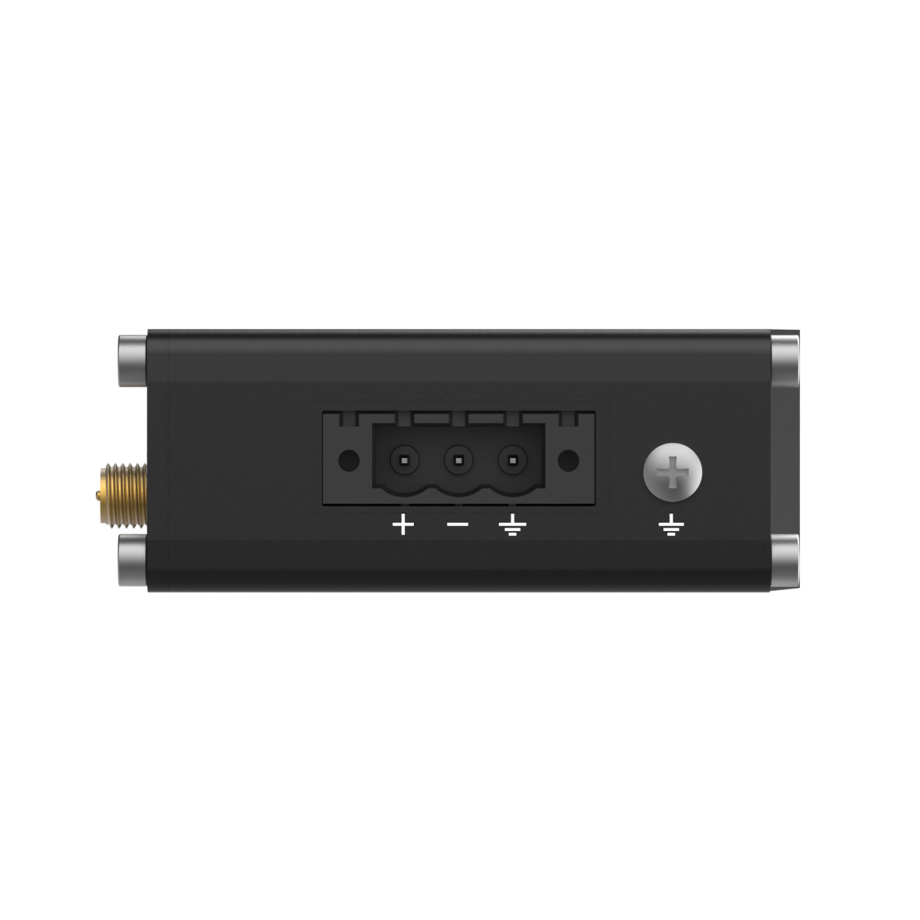

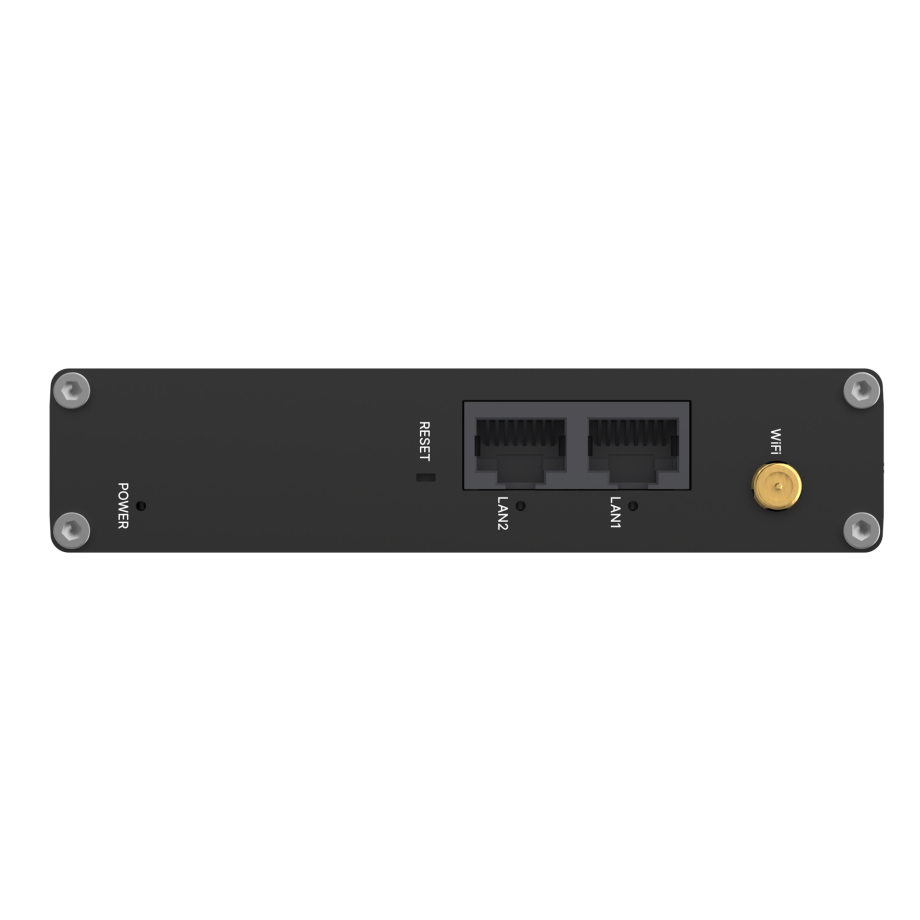

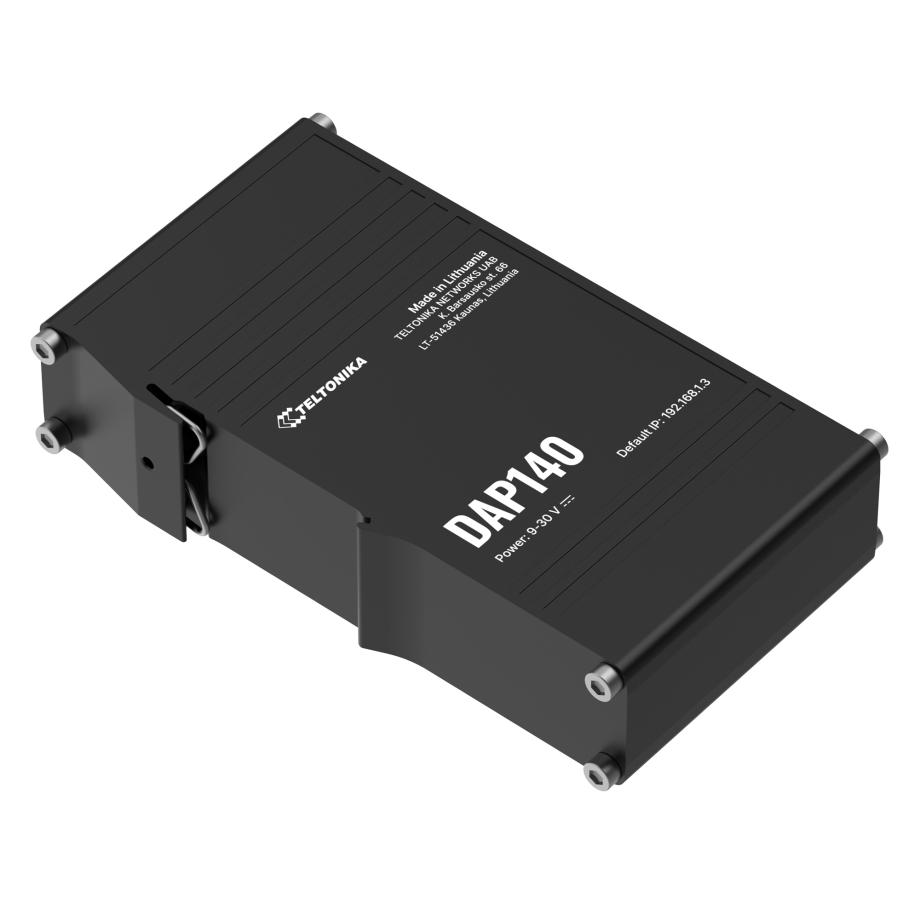

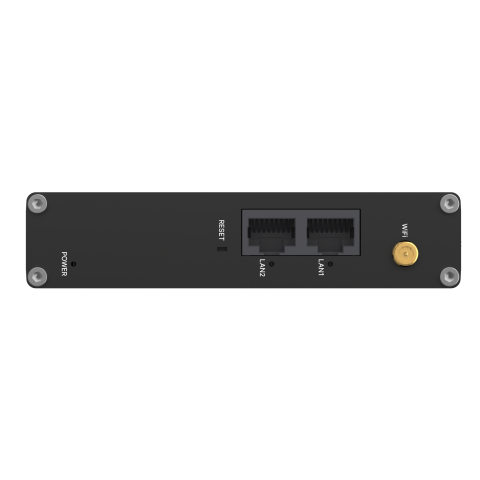

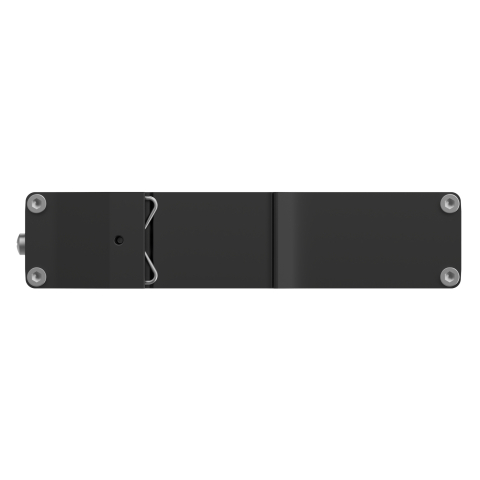

Teltonika DAP140 is a reliable industrial access point built to deliver stable and extended Wi-Fi coverage in mission-critical environments. Featuring Wi-Fi 4 (802.11b/g/n) with Mesh support and Fast Roaming, it ensures seamless wireless transitions and consistent performance. The rugged aluminium housing and DIN rail bracket make it ideal for factories, warehouses, and control cabinets. It supports up to 50 simultaneous wireless clients and includes two 10/100 Mbps Ethernet ports with auto MDI/MDIX. The device supports flexible power options: it can be powered either through a 3-pin industrial connector or via passive PoE using spare pairs on the LAN2 port. With a wide input voltage range of 9 to 30 VDC, it easily adapts to various industrial power systems. Designed to withstand demanding conditions, the DAP140 offers a robust solution for industrial networking where reliability and connectivity are non-negotiable.

DAP140 supports various wireless modes, including Access Point, Client, Mesh (802.11s), and Multi AP, making it adaptable to complex topologies. The device features enterprise-grade Wi-Fi security protocols such as WPA2-EAP, WPA3-SAE, and OWE for strong, flexible protection. Advanced Layer 3 routing support includes Static, RIP, OSPF, BGP, EIGRP, and Policy-Based Routing, enabling precise traffic management and efficient network segmentation. Firewall features include NAT, DMZ, port forwarding, and fully customizable rules through both WebUI and CLI. Protocol support includes IPv4, IPv6, DNS, SNMP, SSH, MQTT, and Wake-on-LAN. With high compatibility and scalability, DAP140 can be integrated into modern or legacy network environments. It’s an excellent choice for industrial-grade wireless deployment with strong focus on control, visibility, and security.

With a 580 MHz Mediatek MIPS 24KEc processor, 128 MB of DDR2 RAM, and 16 MB of NOR flash memory, the DAP140 is well-equipped to manage demanding network tasks with stability and speed. It offers flexible powering options via a 3-pin terminal block or passive PoE, though not compatible with IEEE 802.3af/at/bt standards. Its fanless aluminium design ensures silent operation while resisting industrial stressors like dust and vibration. With fast installation via DIN rail and high compatibility with existing systems, DAP140 simplifies industrial wireless deployments. The built-in hardware is optimized for 24/7 operation in harsh conditions, ensuring uptime and efficiency. With support for up to 50 clients and essential industrial protocols, Teltonika DAP140 is the practical choice for extending Wi-Fi in production lines, logistics hubs, or remote facilities.
