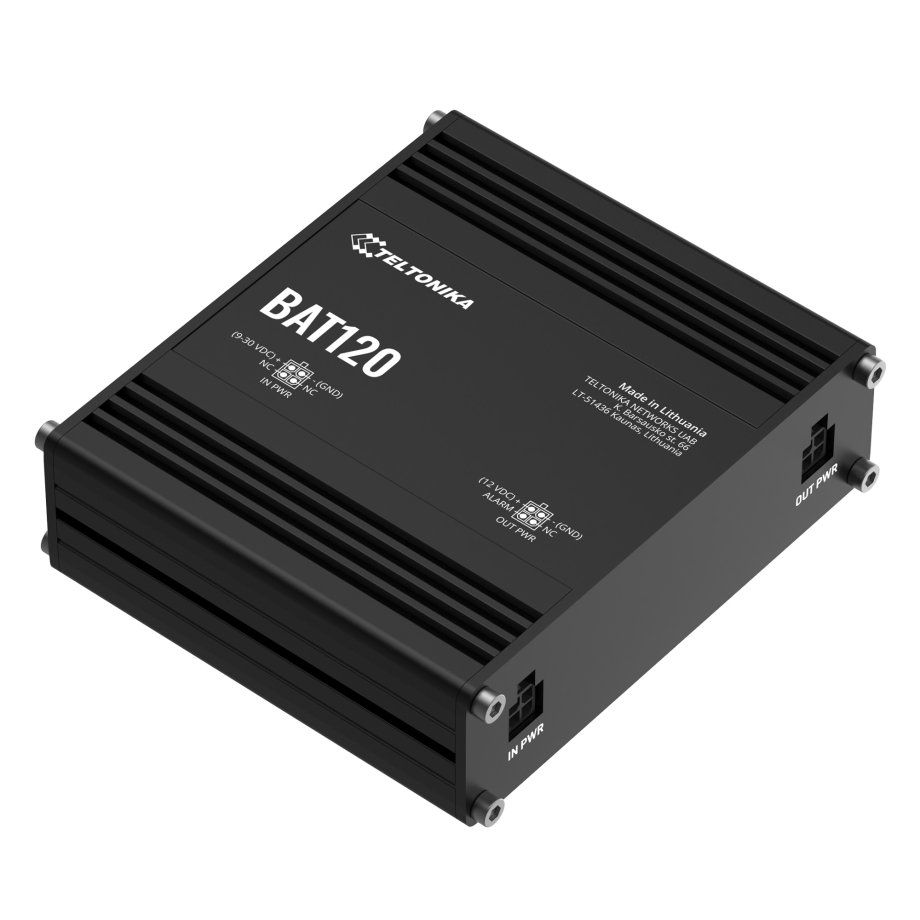

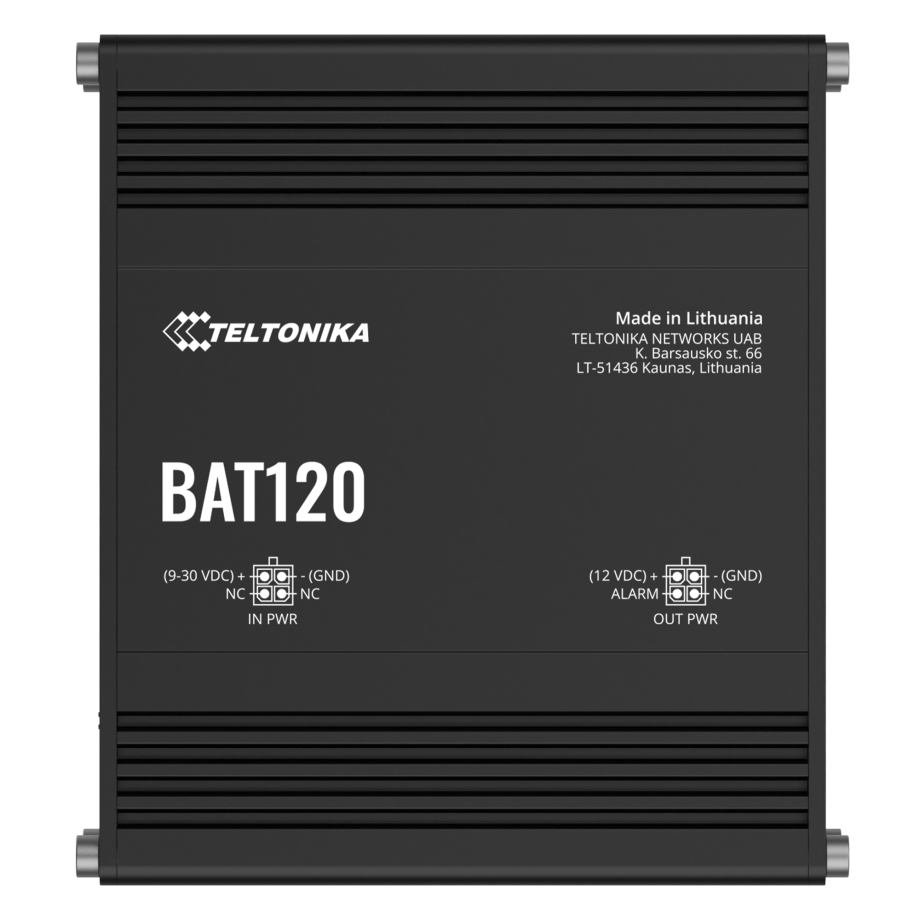

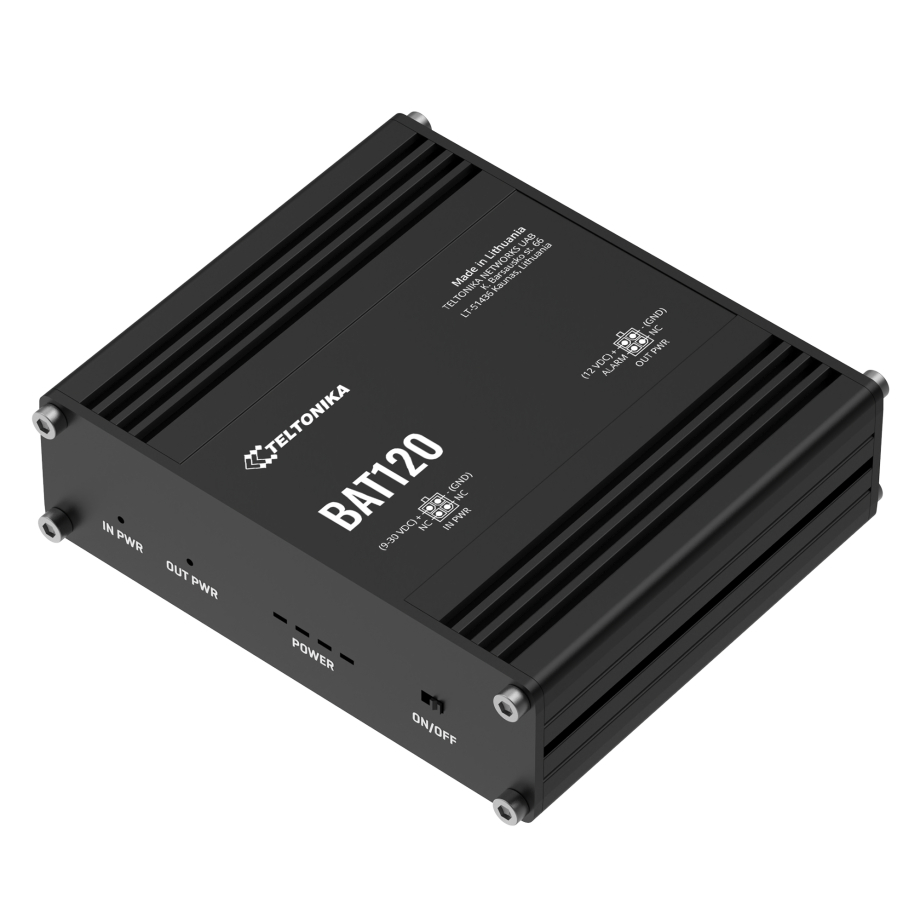

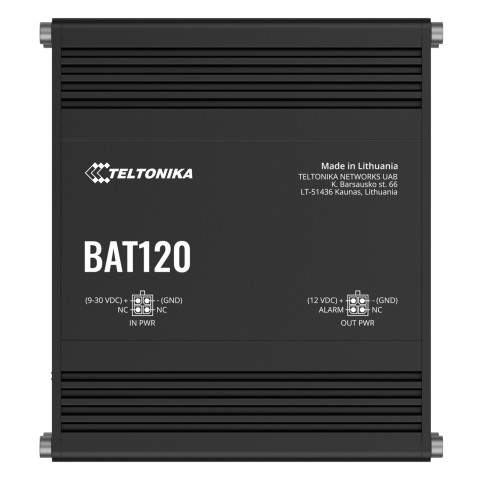

Teltonika BAT120 Uninterruptable Power Supply

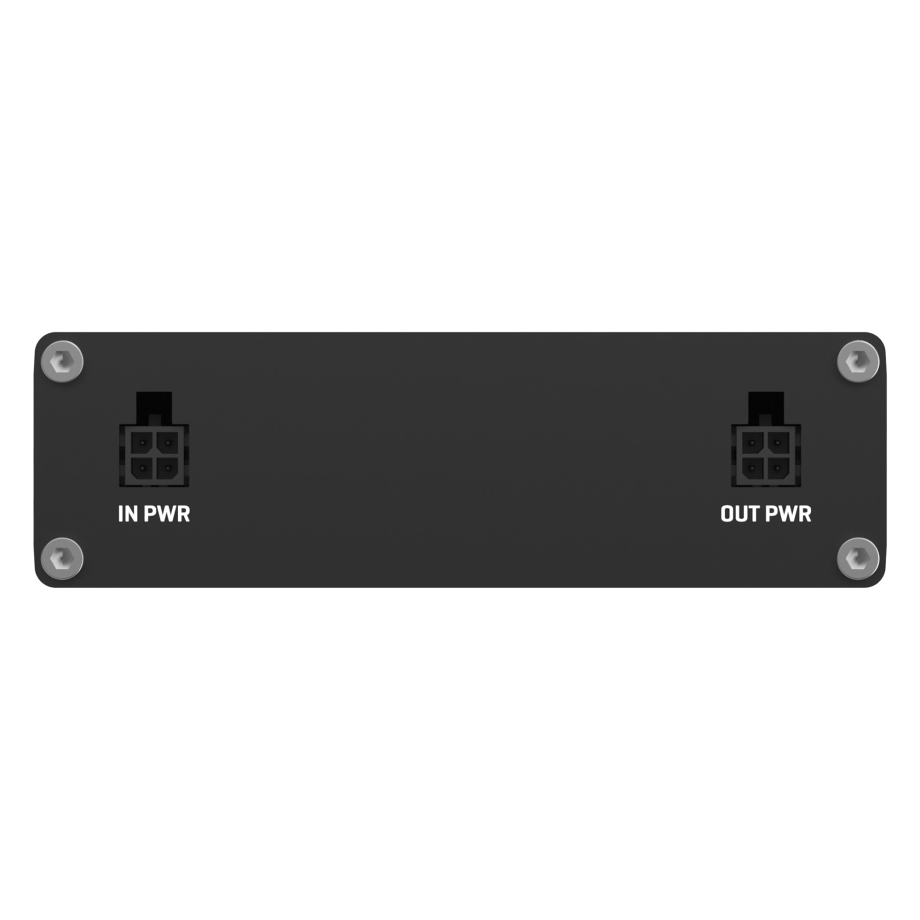

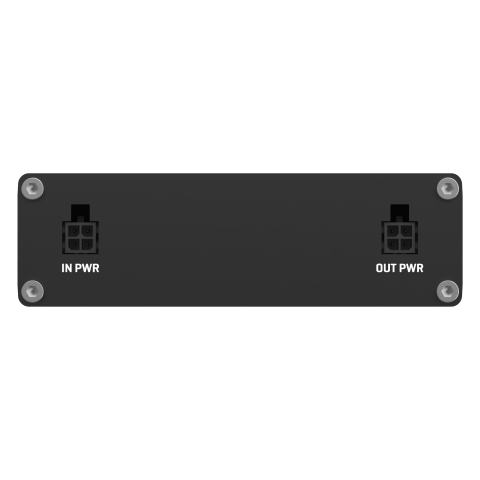

BAT120 is the first uninterrupted power supply from Teltonika Networks. BAT120 is equipped with two 4-pin DC ports for power input and output. The input voltage ranges from 9V to 30V and output of 12VDC when operated from the battery. Acting as an uninterrupted power source, BAT120 provides enough power from two 18650 Li-Ion cells to keep a compatible Teltonika Networks device working for up to 6 hours. BAT120 has reverse and overvoltage protection for input and 3A overcurrent protection for output as safety features. This rugged and reliable uninterrupted power source is perfect for applications that require constant connectivity from the Teltonika Networks devices even when power outages or fluctuations occur.

In case of an electricity outage, the two 18650 Li-ion cells within the BAT120 store a charge that will power the connected device. This uninterrupted power supply can store up to 6 hours’ worth of electricity, enough time to restore the primary grid. This backup battery lets connected gateway continuously transmit data from temperature and humidity sensors in the cooling equipment to the surveillance center and, at the same time, inform about the power outage. When BAT120 detects the absence of electricity, it powers the gateway with stored energy and sends a signal through the digital output, allowing to send out an alert. The connected Teltonika Networks device has custom alerts set up that inform about an outage via SMS, HTTP POST/GET requests or email.
