MikroTik wAP R

MikroTik MTCNA Certificate

MikroTik Value Added Distributor

64.70 €

plug

Expected arrival
?

20 pcs

on 29.03.2024

Volume price

Order amount

price

from 467.68 €

63.67 €

from 935.37 €

62.64 €

from 4676.83 €

62.13 €

from 9353.66 €

61.61 €

Brand

MikroTik

Manufacturer part number

RBwAPR-2nD

Warranty
?

12 months

EAN

4752224004956

MikroTik MTCNA Certificate

MikroTik Value Added Distributor

Available alternatives

Huawei E5577-320 LTE4 Mobile WiFi White

60.51 €53.00 €

-12%

Huawei E5783-330 LTE7 Mobile WiFi Black

59.94 €

Huawei E5783B-230a LTE7 Mobile WiFi Black

47.87 €

Detailed description

The wAP LTE is a small weatherproof wireless access point with a built-in cellular modem that supports 2G, 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.

This device is weatherproof and can be mounted outside the house, in the vehicle, on the porch or anywhere else where you need wireless access from your phone or computer. It also includes a desktop stand, so you can put it inside the building near a window.

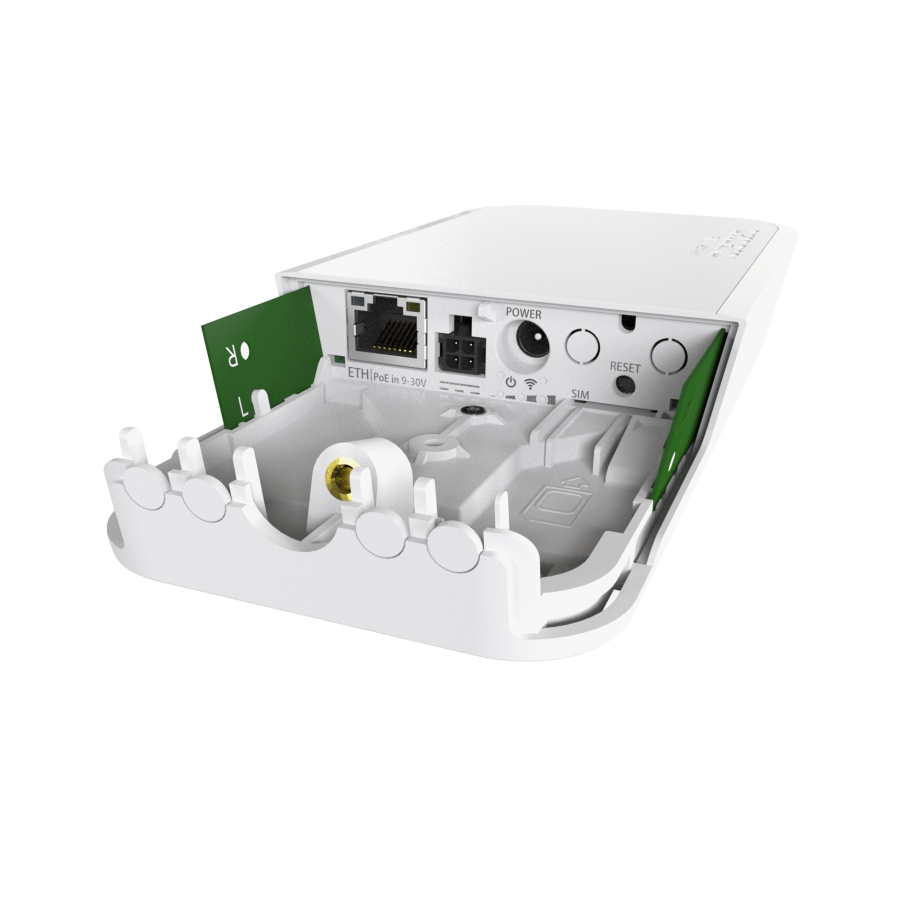

LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options - 9-30 V PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train.

Four versions are available:

RBwAPR-2nD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.
RBwAPR-2nD&R11e-LTE-US includes LTE modem that supports LTE bands 2,4,5 and 12, mostly used by mobile operators in United States, Canada and Latin America.
wAP 4G kit (RBwAPR-2nD&R11e-4G) includes LTE modem that supports LTE FDD bands 3, 7, 20 and 31 as well as LTE TDD bands 41n, 42 and 43.
RBwAPr-2nD is shipped without LTE card installed (empty miniPCI-e slot), so you can use your own LTE card.

Compare with similar products

	MikroTik wAP R	MikroTik wAP LTE kit	MikroTik wAP ac LTE kit
Ethernet Ports

1 x 100 Mbps	1 x 100 Mbps	2 x 1 Gbps	2 x 1 Gbps
LTE Category

	Cat4 – 150Mbps/50Mbps	Cat4 – 150Mbps/50Mbps	Cat6 – 300Mbps/50Mbps
Wireless Antenna Frequency Range & Gain

2.412 - 2.484 (GHz) 2 (dBi)	2.412 - 2.484 (GHz) 2 (dBi)	2.412 - 2.484 (GHz) 2.5 (dBi), 5.150 - 5.875 (GHz) 2.5 (dBi)	2.412 - 2.484 (GHz) 2.5 (dBi), 5.150 - 5.875 (GHz) 2.5 (dBi)
Mobile Antenna Frequency Range & Gain

	0.8 - 2.6 (GHz) 2 (dBi)	0.45 - 3.7 (GHz) 4 (dBi)	0.7 - 2.6 (GHz) 4 (dBi)
Chipset

QCA9531, 1 core, 650 MHz	QCA9531, 1 core, 650 MHz	IPQ-4018, 4 core, 716 MHz	IPQ-4018, 4 core, 716 MHz
RAM

64 MB	64 MB	128 MB	128 MB
Storage Memory

16 MB	16 MB	16 MB	16 MB
Max Power Consumption

8 W	8 W	14 W	16 W

	MikroTik wAP R	MikroTik wAP LTE kit	MikroTik wAP ac LTE kit	MikroTik wAP ac LTE6 kit
Ethernet Ports	1 x 100 Mbps	1 x 100 Mbps	2 x 1 Gbps	2 x 1 Gbps
LTE Category		Cat4 – 150Mbps/50Mbps	Cat4 – 150Mbps/50Mbps	Cat6 – 300Mbps/50Mbps
Wireless Antenna Frequency Range & Gain	2.412 - 2.484 (GHz) 2 (dBi)	2.412 - 2.484 (GHz) 2 (dBi)	2.412 - 2.484 (GHz) 2.5 (dBi), 5.150 - 5.875 (GHz) 2.5 (dBi)	2.412 - 2.484 (GHz) 2.5 (dBi), 5.150 - 5.875 (GHz) 2.5 (dBi)
Mobile Antenna Frequency Range & Gain		0.8 - 2.6 (GHz) 2 (dBi)	0.45 - 3.7 (GHz) 4 (dBi)	0.7 - 2.6 (GHz) 4 (dBi)
Chipset	QCA9531, 1 core, 650 MHz	QCA9531, 1 core, 650 MHz	IPQ-4018, 4 core, 716 MHz	IPQ-4018, 4 core, 716 MHz
RAM	64 MB	64 MB	128 MB	128 MB
Storage Memory	16 MB	16 MB	16 MB	16 MB
Max Power Consumption	8 W	8 W	14 W	16 W
