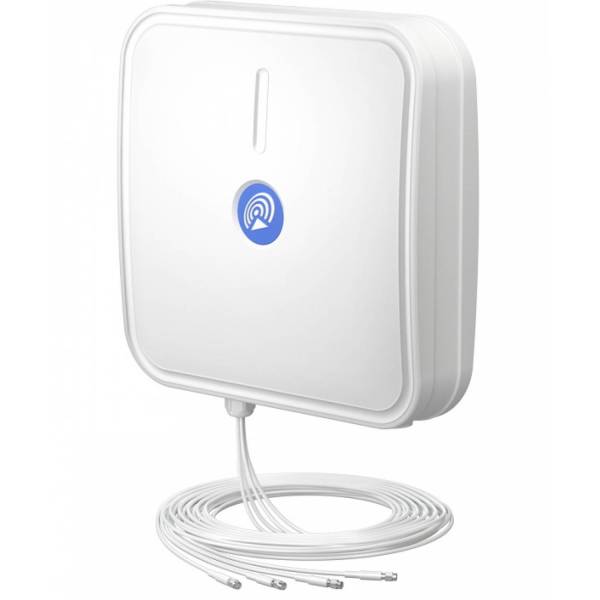

QuPanel 5G LTE Global MIMO 4x4, 10m
out of stock
?
188.28 €
188.28 €
Available alternatives
Detailed description
Wide Frequency Coverage
The QuPanel AP5G4‑G1 is a high-performance MIMO 4x4 antenna designed for global LTE and 5G applications. Covering an extensive frequency range from 617 MHz to 6 GHz, it supports a wide array of bands, including LTE/4G bands (7, 38, 41, 53, 69, n90), LTE/4G GSM bands (5, 6, 8, 12, 13, 14, 17, 18, 19, 20, 26, 27, 28, 29, 44, 67, 68, 71, 85, n81, n82, n83, n89), UMTS bands (1, 2, 3, 4, 9, 10, 25, 33, 34, 35, 36, 37, 39, 59, 62, n80, n84, n86, n95), WCS DARS bands (30, 40), and 5G bands (n78, n81, n82, n83, n89). The gain reaches 6 dBi at lower frequencies and up to 7 dBi in mid-bands, ensuring high signal quality and extended coverage range. The antenna operates with a VSWR of <3.0 and 50 Ω impedance, guaranteeing efficient power transfer and minimal loss. Its compact dimensions and low weight make it ideal for both fixed and mobile deployments.
Weatherproof Design
Engineered for long-term reliability, the QuPanel AP5G4‑G1 is built from high-quality materials such as ABS, aluminum, PTFE, and fiberglass, ensuring excellent durability and resistance to environmental stress. Its IP67 ingress protection rating provides complete shielding against dust and heavy rain, making it ideal for outdoor and industrial installations. The antenna performs reliably in a wide operating temperature range from –40 °C to +80 °C, supporting deployments in extreme cold or heat. With SMA connectors, it seamlessly integrates with a variety of LTE/5G routers and modems, offering global network compatibility. Designed for IoT, M2M, and enterprise-grade applications, the AP5G4‑G1 enhances connectivity for smart infrastructure, transportation systems, and remote monitoring solutions. Compact and lightweight, it supports flexible installation while delivering robust performance even in harsh and challenging environments.
Technical Specs / Datasheet
Specifications
Antenna
Antenna Design
Panel
Mobile Antenna Frequency Range & Gain
0.617 - 0.96 (GHz) 6 (dBi), 1.7 - 2.7 (GHz) 7 (dBi), 3.3 - 4.6 (GHz) 7 (dBi), 4.7 - 6.0 (GHz) 5.5 (dBi)
Mobile Antenna Gain
6 dBi, 7 dBi, 7 dBi, 5.5 dBi
Beamwidth
80 °
Cable Length
10 m
VSWR
< 3
Impedance
50 Ω
Connectors
RF Connectors
(4) SMA Male
Physical Parameters
Material
Aluminium, ABS Plastic, Fiberglass, Polytetrafluoroethylene
Ingress Protection Code
IP67
Dimensions
486 x 292 x 106 mm
Weight
2.8 kg
Operating Temperature
-40 °C to 80 °C
Environment
Outdoor
Mounting Method
Wall Mount, Pole Mount
