Reyee RG-RAP1200(P) Wall Mount Bracket | Ruijie RG-RAP1200(P)-MNT

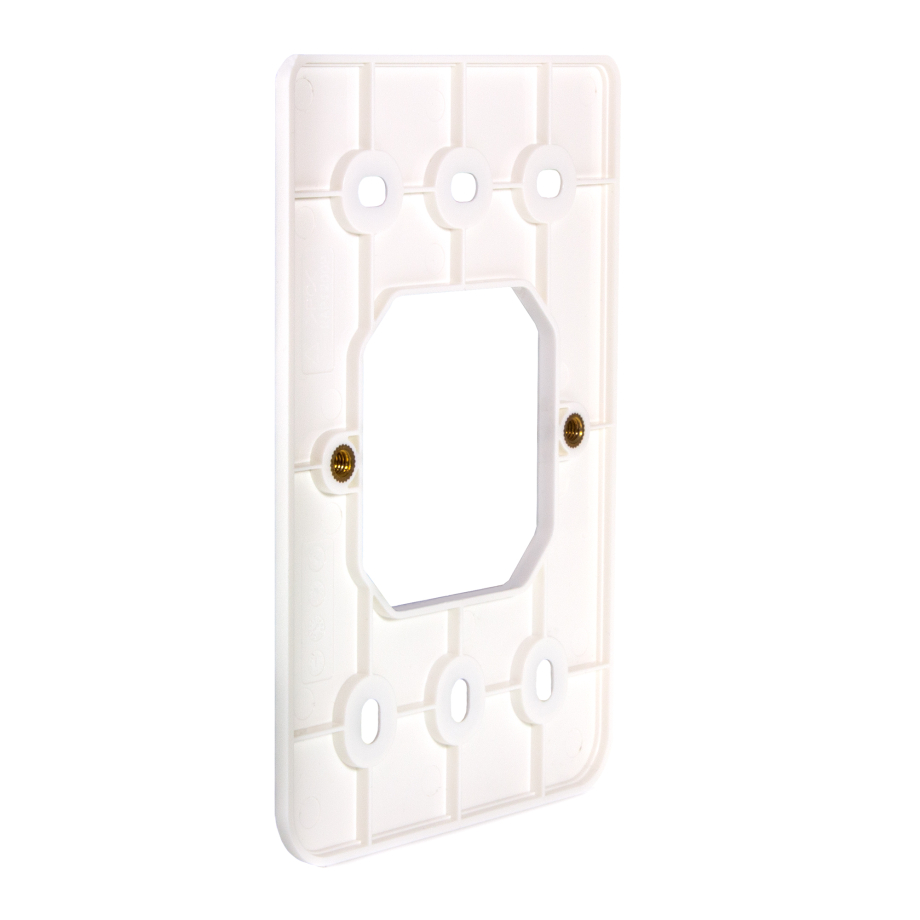

The Ruijie Reyee RG-RAP1200(P)-MNT is a dedicated mounting bracket for installing a compatible RG-RAP1200(P) wall-mounted access point on a US-style wall outlet box. It provides a structured mounting interface between the outlet box and the access point, helping create a neat wall installation where the network cable can be routed directly to the PoE port of the AP. This design is intended for installations where the access point must sit securely on the wall while maintaining a clean, integrated appearance after the top cover is fitted.

The bracket measures 86 mm in width and 126 mm in height, with a slim 4 mm side profile. Its mounting layout includes a 60.3 mm lower spacing, 63 mm side spacing, and internal mounting dimensions of 46 mm, 50 mm, 83.5 mm, and 7 mm, supporting precise alignment during installation. The bracket also includes two M4 × 5 retaining nuts, which provide fixed attachment points for securing the access point to the bracket. With its purpose-built shape and defined screw positions, the RG-RAP1200(P)-MNT is a practical accessory for professional wall-mounted Reyee AP deployments that require a tidy finish and reliable mechanical fit.
