Manufacturer part number
ANT0627Y8-NF
Warranty
?
12 months
EAN
0708747435061

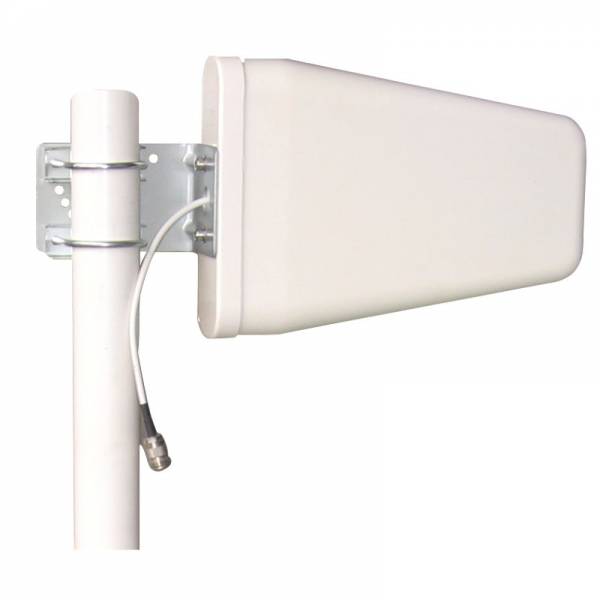

LTE Wideband Directional Antenna 8dBi
This item has been discontinued
We recommend to use the product presented below
Available alternatives
Specifications
Antenna
Antenna Design
Yagi
Mobile Antenna Frequency Range & Gain
0.698 - 0.960 (GHz) 8 (dBi), 1.710 - 2.700 (GHz) 8 (dBi)
Mobile Antenna Gain
8 dBi
Beamwidth
110 ° Vertical, 90 ° Horizontal
Polarization
Vertical
Cable Length
0.2 m
VSWR
< 1.5
Impedance
50 Ω
F/B ratio
> 20 dB
Maximum Input Power
100 W
Connectors
RF Connectors
(1) N Female
Physical Parameters
Color
Grey
Material
ABS Plastic
Dimensions
290 x 210 x 65 mm
Weight
1.5 kg
Operating Temperature
-40 °C to 70 °C
Environment
Outdoor
Mounting Method
Pole Mount
