Product name
Alfa 2.4/5GHz Outdoor Panel Antenna 8dBi N-Female
Warranty
?
12 months
Manufacturer part number
APA-L2458-08A
EAN
4718050306800
Alfa 2.4/5GHz Outdoor Panel Antenna 8dBi N-Female
in stock
?
21.57 €
21.57 €
Detailed description

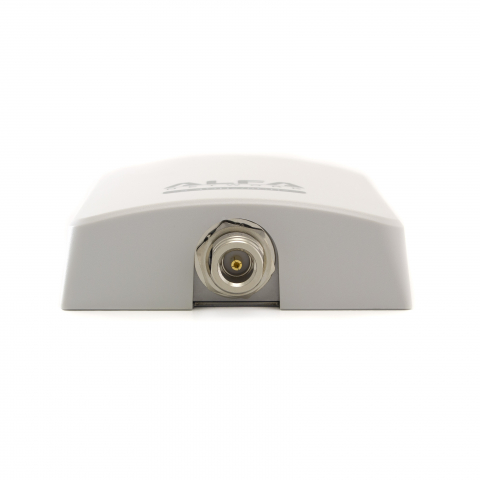

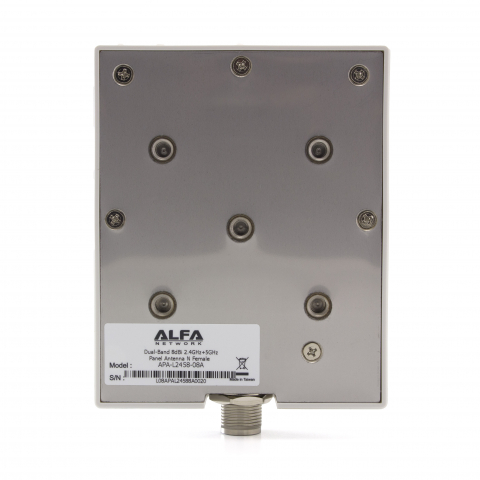

If you're in the market for a low profile dual-band outdoor directional antenna, consider this 8 dBi gain panel antenna with N-female connector manufactured by Alfa Network. This panel antenna is suitable for use with Alfa Tube-UAC2.
This antenna can be fastened to nearly any surface, and can be connected to many different Wi-Fi adapters.

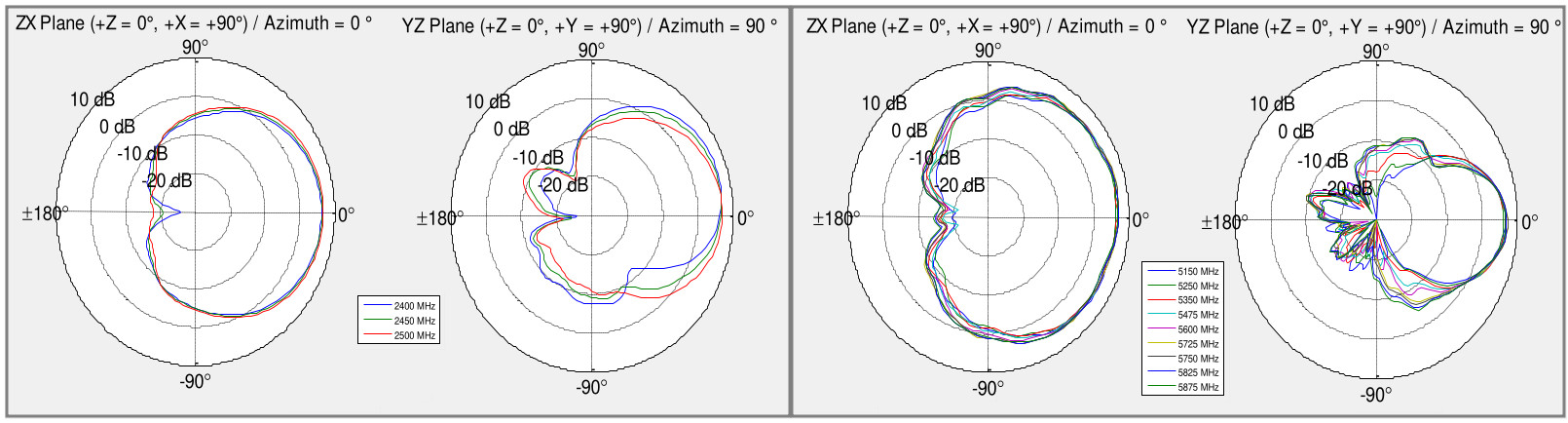

Frequency Diagram
Technical Specs / Datasheet
Compatible products
Specifications
Antenna
Antenna Design
Panel
Wireless Antenna Frequency Range & Gain
2.4 - 2.483 (GHz) 8 (dBi), 5.1 - 5.9 (GHz) 8 (dBi)
Beamwidth
40 ° Vertical, 90 ° Horizontal
VSWR
< 1.7
Connectors
RF Connectors
(1) N Female
Physical Parameters
Dimensions
117 x 95 x 31 mm
Weight
0.22 kg
