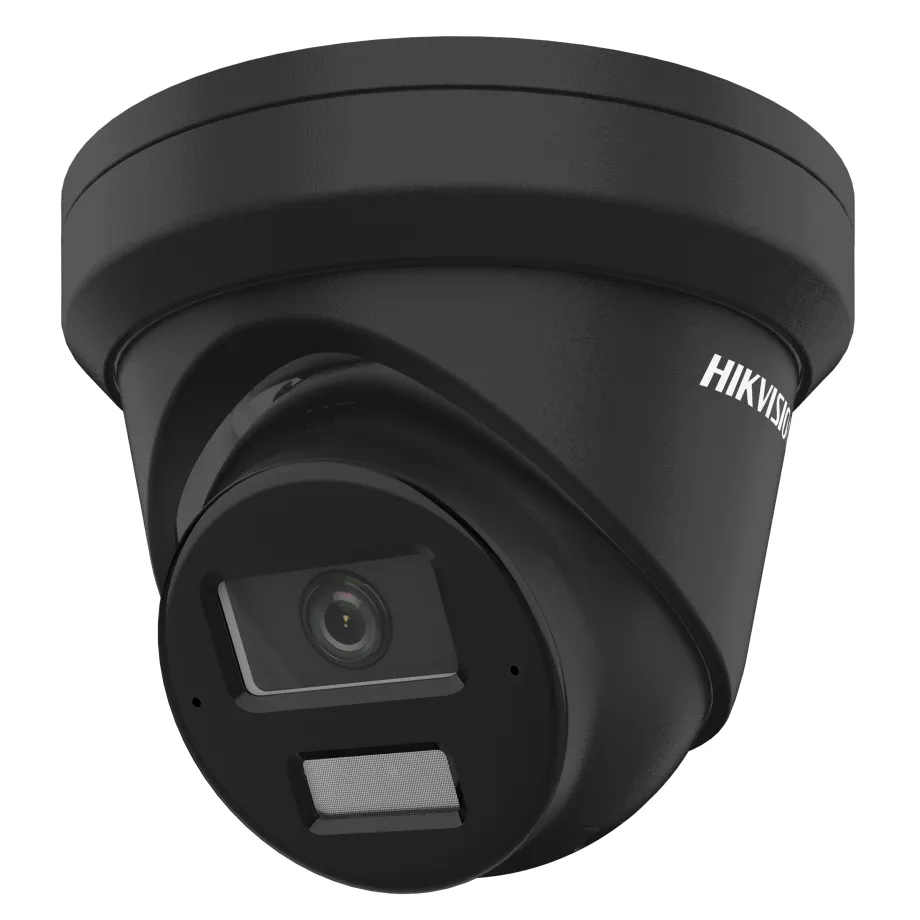

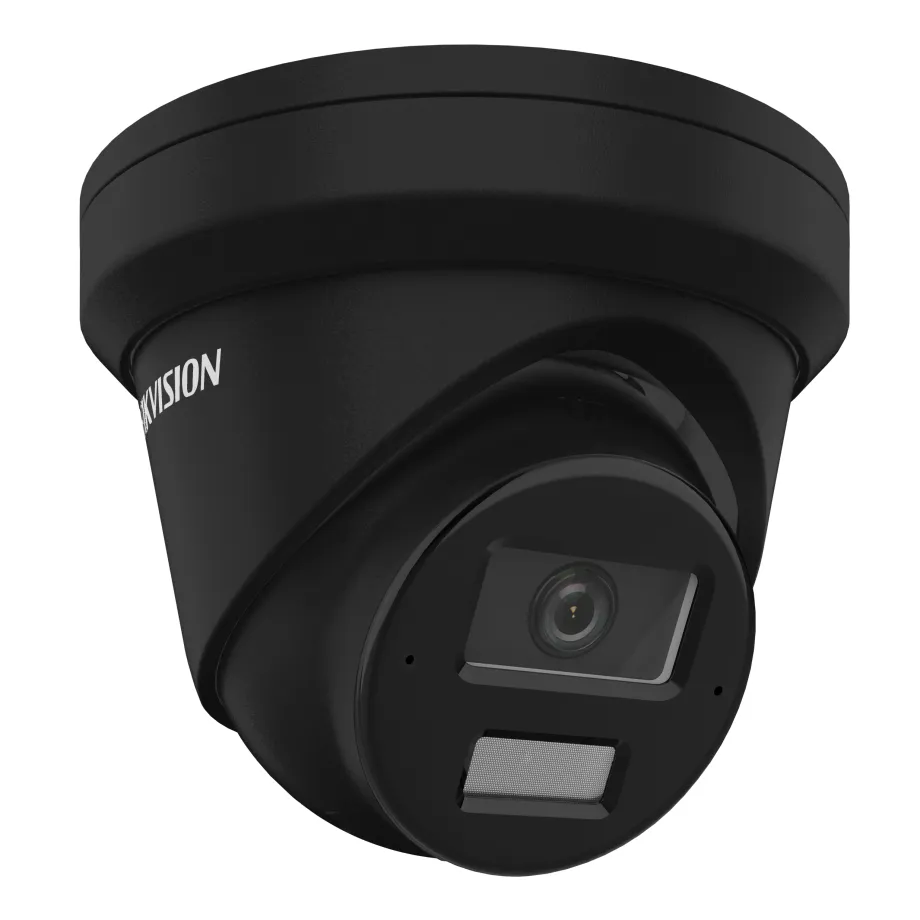

HikVision 4 MP Turret Camera DS-2CD2343G2-LI2U F2.8 Black

in stock
?
83.06
in stock
?
83.06

Manufacturer part number

DS-2CD2343G2-LI2U-F2.8(Black)

Warranty

?
12 months

EAN

6942160463186

Category

Detailed description

High-Definition Video

The DS-2CD2343G2-LI2U-F2.8 is equipped with a 1/3″ Progressive Scan CMOS sensor that captures high-quality 4 MP video at a maximum resolution of 2688 × 1520 pixels, ensuring sharp reproduction of fine details across a variety of monitoring environments. This level of clarity makes the camera suitable for identifying people, objects, and movements both in indoor and outdoor scenarios. The fixed 2.8 mm lens offers a generous viewing angle (104° horizontally, 57° vertically, and 122° diagonally), allowing the camera to oversee wider areas with fewer blind spots. This wide field of view is especially effective for entrances, open spaces, parking areas, and corridors that require reliable coverage. With a minimum illumination of 0.005 Lux at F1.6 and AGC on, the device delivers solid low-light visibility even before supplemental lighting activates. Combined with support for multiple image settings such as brightness, contrast, saturation, and wide dynamic adjustments, the camera ensures a balanced and accurate image in varied lighting. These capabilities make it a strong choice for professional-grade video surveillance.

Smart Light Support

The DS-2CD2343G2-LI2U-F2.8 incorporates Smart Hybrid Light technology that combines IR LEDs with white-light illumination to provide flexible nighttime imaging. At night, the camera can operate in IR-only mode for discreet surveillance or switch to white-light mode to capture full-color images, improving identification of people, vehicles, and objects. The illumination distance reaches up to 30 meters, offering extensive coverage even in completely dark environments. An IR-cut filter enables true day/night switching, ensuring consistent color accuracy during daylight and seamless transition into nighttime modes. The device supports advanced compression formats including H.265+, H.265, H.264+, and H.264, reducing storage needs while maintaining image quality, that is important for large surveillance systems or long-term retention. With power supplied via PoE (IEEE 802.3af) or 12 V DC, installation becomes straightforward and does not require separate power lines. Additional image enhancements such as 3D DNR, BLC, and smart exposure control help maintain clarity in difficult lighting. These features combine to ensure highly dependable night-time surveillance.

Robust Design

The DS-2CD2343G2-LI2U-F2.8 is built with an IP67-rated housing that protects the camera from dust and heavy water exposure, making it suitable for both indoor and outdoor installations when mounted appropriately. Its durable turret design provides flexible adjustment, including pan ranges of 0° to 360°, tilt ranges of 0° to 75°, and rotation from 0° to 360°, allowing precise alignment regardless of mounting position. The camera supports standard 10/100 Mbps Ethernet connectivity and is compatible with ONVIF profiles, enabling seamless integration with a wide range of NVRs and third-party systems. A built-in microSD card slot supports storage capacities up to 512 GB, offering an effective solution for edge recording or backup storage if the network connection is interrupted. Power consumption remains efficient, and thermal management is optimized for stable operation. The durable build, reliable networking options, and flexible installation design make this camera highly suitable for residential buildings, retail spaces, warehouses, and industrial sites where stable long-term monitoring is required.

Specifications

Video

Megapixels

Resolution

2688 x 1520
Maximum Frame Rate

30 FPS
Video Compression

H.264, H.264+, H.265, H.265+

Audio

Microphone

Build-in
Audio Compression Standard

G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC

Video Camera

Sensor

1/2.9" Progressive Scan CMOS
Lens

Fixed focal 2.8 mm
Night Mode

IR Range up to 30 m
Viewing Angle

104 ° (H) 57 ° (V)
Digital Noise Reduction

3D DNR

Interfaces

RJ45 Ports

Memory card slots

1 microSD

System Specification

Supports microSD card up to

512 GB

Power

Power Method

AC/DC Adapter, 802.3af PoE
Max Power Consumption

9 W
PSU / POE adapter

12 V DC 0.58 A

Physical Parameters

Color

Black
Material

Metal
Ingress Protection Code

IP67
Dimensions

Ø127.3 mm × 96.3 mm
Weight

0.515 kg
Operating Temperature

-30 °C to 60 °C
Environment

Outdoor
Mounting Method

Package Contains

External Power Supply

Not Included
