Alfa WiFi Camp Pro 3 Mini – Dual-Band WiFi Extender Kit for RV, Boat & Home

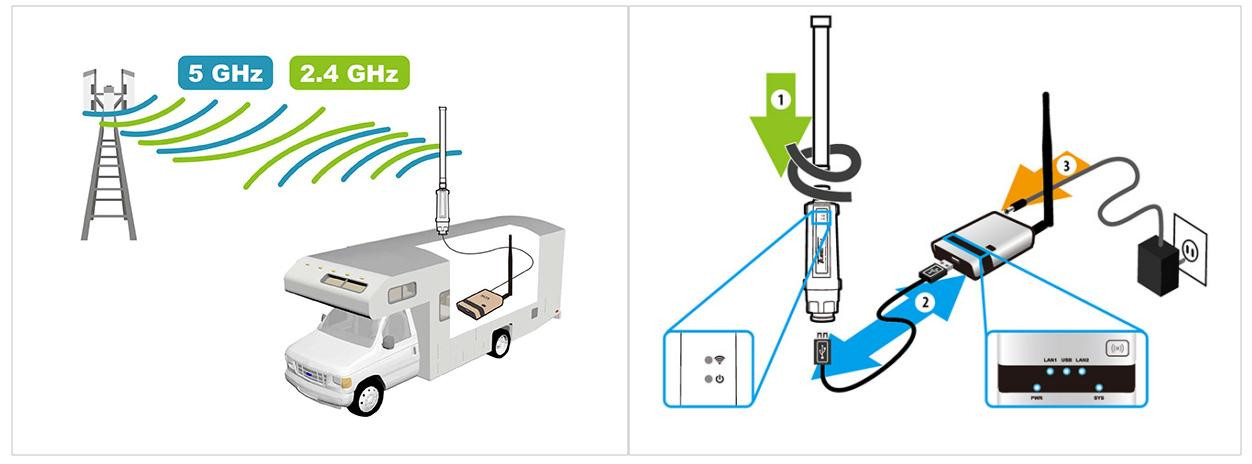

WiFi CampPro 3 mini is a range extender kit designed to retrieve and extend Internet access from remote WiFi hotspots for use in an RV, boat, or home. The system can connect to dual-band WiFi 5 hotspots on either the 2.4 GHz or 5 GHz band, supporting IEEE 802.11 a/b/g/n/ac standards. This gives users a way to reach an available hotspot and redistribute that connection within the local environment, rather than relying on each device to establish its own direct link to the distant source. The dual-band capability also allows the kit to work with hotspots operating on either supported frequency range.

Once connected to a remote hotspot, WiFi CampPro 3 mini can extend the WiFi signal to multiple devices at the same time within an RV, boat, or home. This makes the kit suitable for situations where several local devices need access through one extended hotspot connection. Installation and configuration are designed to be straightforward, reducing the amount of setup required before the system can be used. Vehicle surge protection is also included, adding protection for deployments in mobile environments where the kit may be powered and operated in a vehicle. Together, these functions focus the product on practical hotspot extension in fixed or mobile locations where the original WiFi source is too remote for convenient direct use.

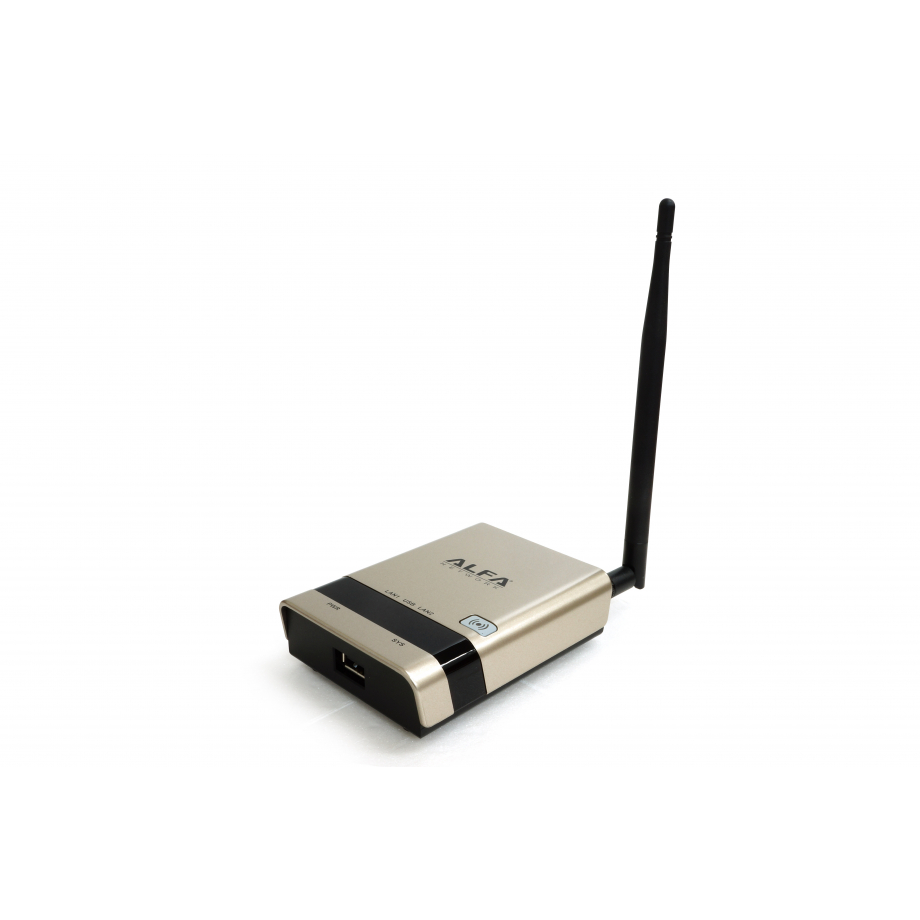

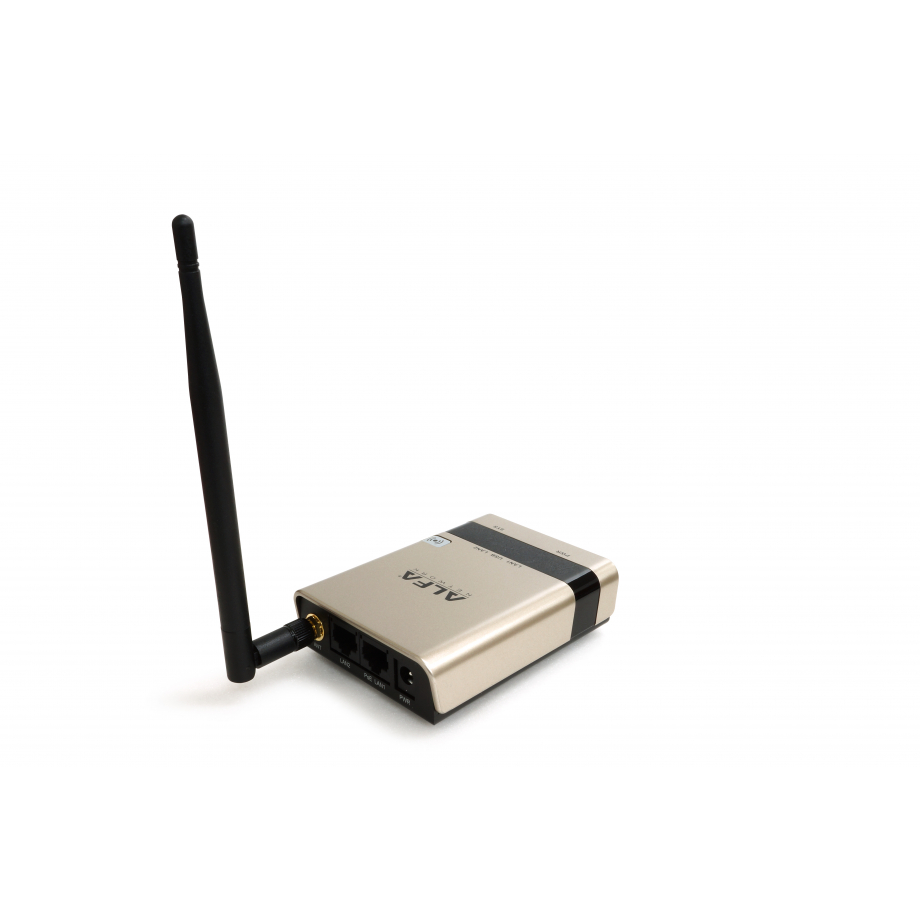

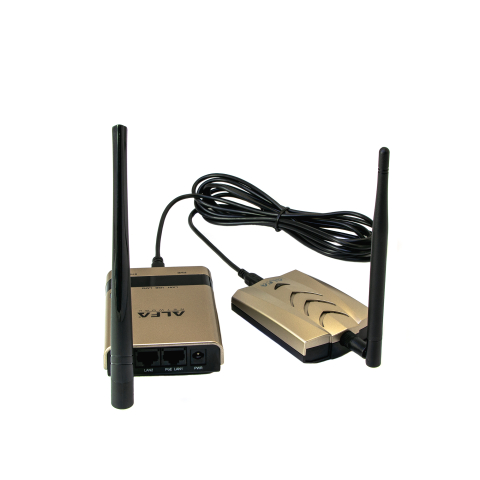

The kit combines an R36AH unit with an AWUS036ACHM WiFi adapter. The R36AH uses a Qualcomm QCA9531 chipset with 128 MB of DDR2 memory and 16 MB of SPI NOR flash, and provides a data rate of up to 300 Mbps. Its wired connectivity consists of two Fast Ethernet ports with ESD protection, while a USB 2.0 Type-A port provides the USB connection used by the system. Physical controls include a WiFi on/off button and a reset button, while six LEDs provide device status indications. These interfaces give the R36AH dedicated options for wired network connections, USB attachment, basic local control, and visible operating feedback.

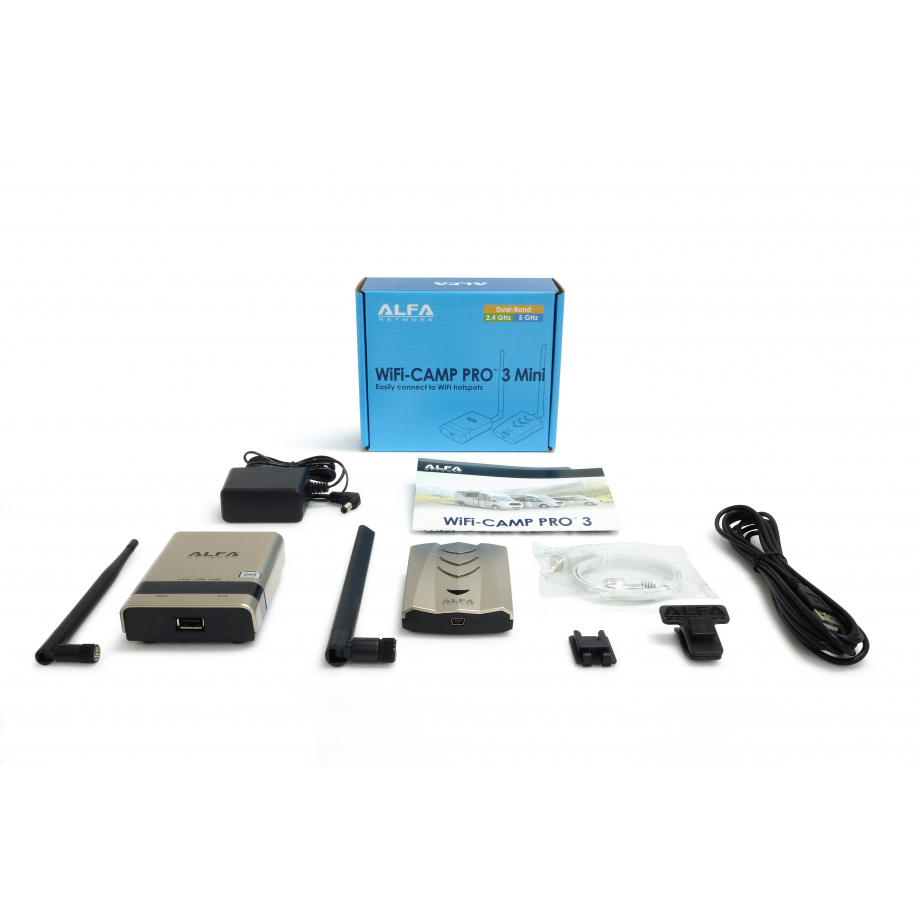

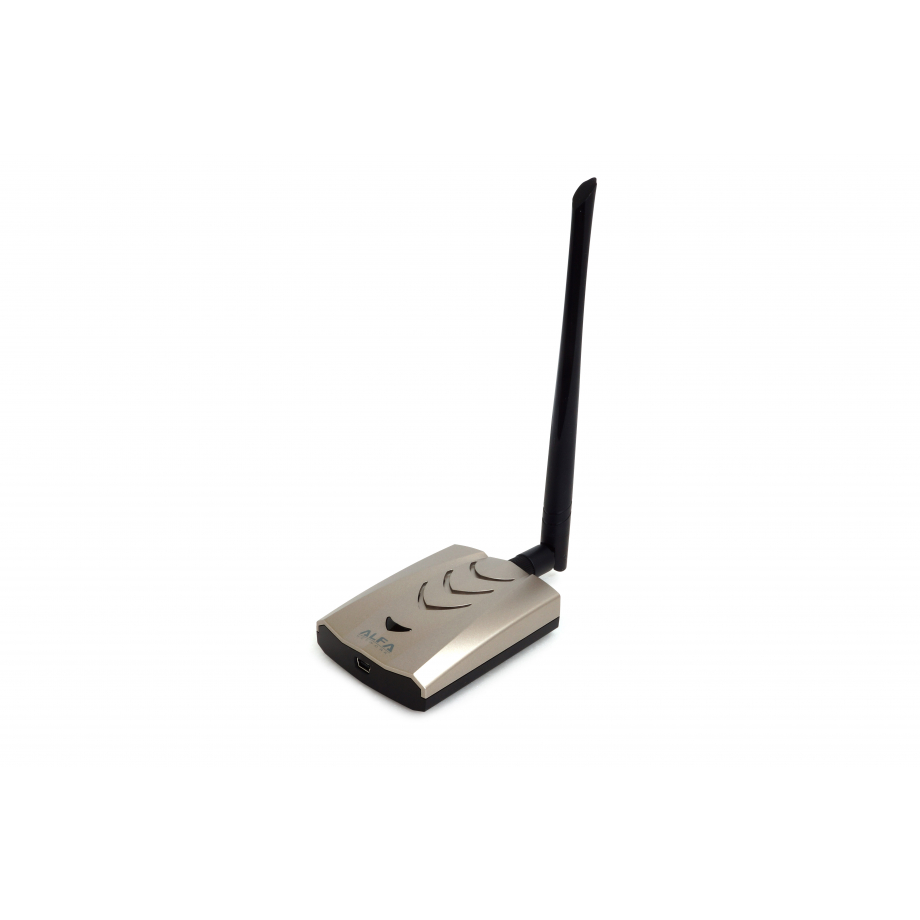

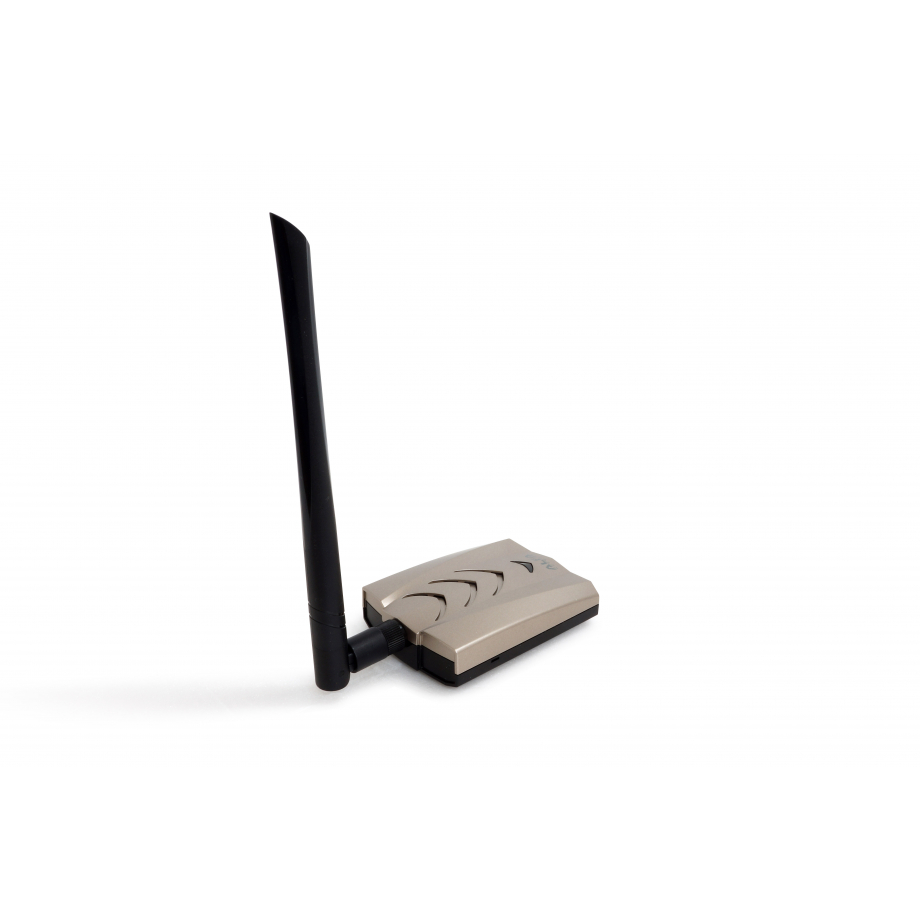

The AWUS036ACHM is based on a MediaTek MT7610U chipset and provides a data rate of up to 433 Mbps through its USB 2.0 interface. An RP-SMA female antenna connector allows the supplied AWUS036ACHM antenna to be attached directly to the adapter. The package also includes the R36A antenna, a three-meter USB cable, a DC 12 V power adapter, a USB clip, and a quick install guide. These included components provide the core hardware, antennas, cabling, power supply, mounting aid, and setup documentation needed to assemble the kit as supplied. The three-meter USB cable is particularly useful for positioning the connected WiFi adapter separately from the R36AH when the installation layout requires some distance between components.
