Ubiquiti UniFi Dream Machine

Ubiquiti Elite Distributor

in stock

261.60 €

in stock

261.60 €

plug

Manufacturer part number

UDM

Warranty

12 months

EAN

0817882025966

Detailed description

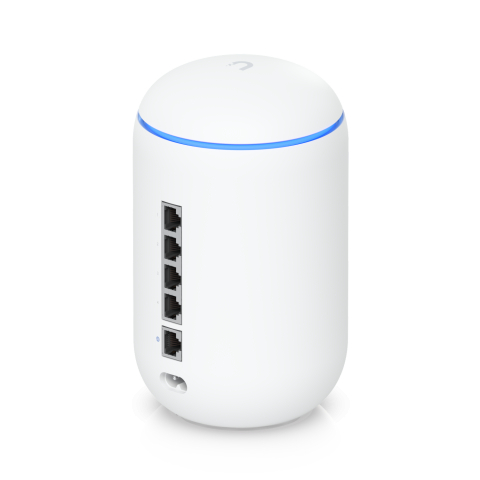

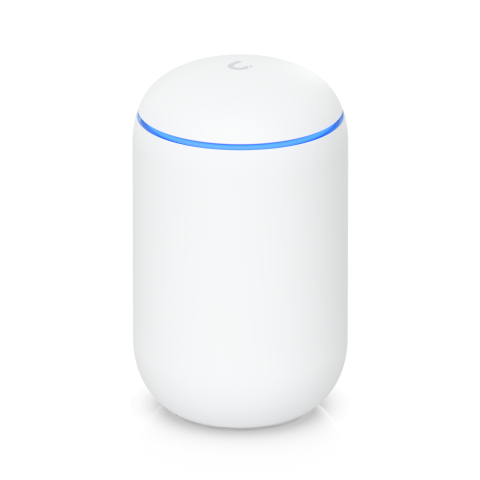

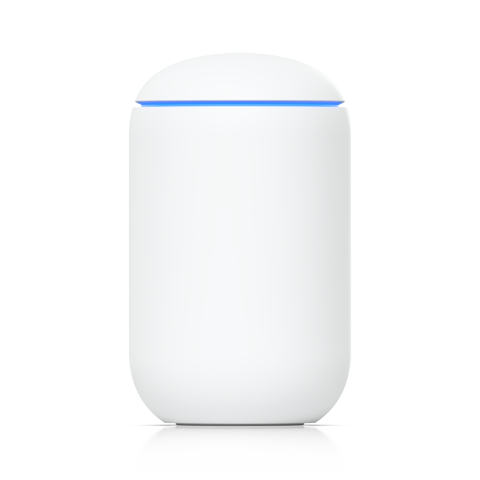

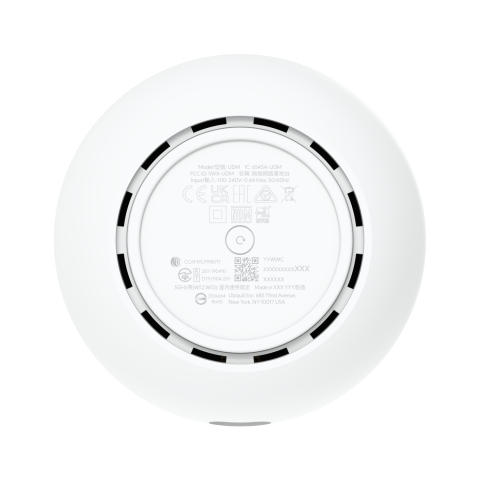

UniFi Dream Machine

Powered by a fast 1.7 GHz quad‑core processor, the UDM combines multiple functions into a single elegant device. The Dream Machine is an easy-to-use UniFi OS console with a built-in, high-performance Wi-Fi access point.

UniFi Dream Machine (UDM) is the easiest way to introduce UniFi to homes and businesses. The UDM includes everything you need for a small-scale wired or Wi-Fi network. It's easy to use and still offers all the benefits of UniFi for homes and businesses.

Features:

High‐Performance Dual Band 802.11ac 4x4 Wave 2 AP
Managed 4-Port Gigabit Switchy
Advanced Security Gateway with IDS/IPS and DPI
Pre-installed UniFi Network application
Scalable Through Additional UniFi Devices Connected to LAN
Powered by Fast 1.7 GHz Quad-Core Processor

/images/catalogue/description/464/dreammachine-654dfef17464a-1400x1040.jpg

The Easiest Way to UniFi

The UDM is the ideal first UniFi device. It’s easy to use and still offers all the benefits of UniFi for homes and businesses. Easily expand the UDM by adding more UniFi Switches or APs while managing the network with the integrated controller. The UniFi Network application and UniFi Cloud provide remote access to the device from anywhere. The entire network can be kept updated and safe with automated software updates, which are free of charge.

/images/catalogue/description/464/screenshot_20210310unifidreammachine-6048c4432a674-1569x877.jpg

UniFi Network Application with Intuitive User Interface

Centralized management software featuring a graphical user interface offers easy setup and convenient control. The UniFi Network Application can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.

Compare with similar products

	Dream Machine	Dream Router	Dream Machine Professional	Dream Machine Special Edition
Wireless Standard

802.11a/b/g/n/ac, 802.11ac Wave2	802.11a/b/g/n/ac/ax, Wi-Fi 6			802.11a/b/g/n/ac/ax, Wi-Fi 6
MIMO

2.4GHz 2x2, 5GHz 4x4	2.4GHz 4x4, 5GHz 4x4			2.4GHz 2x2, 5GHz 4x4,
2.4GHz Radio Rate

300 Mbps	600 Mbps			300 Mbps
5GHz Radio Rate

1.7 Gbps	2.4 Gbps			2.4 Gbps
Wireless Antenna Frequency Range & Gain

2.4 - 2.4 (GHz) 3 (dBi), 5 - 5 (GHz) 4.5 (dBi)	2.4 - 2.4 (GHz) 3.4 (dBi), 5 - 5 (GHz) 4.3 (dBi)			2.4 - 2.4 (GHz) 5.9 (dBi), 5 - 5 (GHz) 6 (dBi)
Ethernet Ports

5 x 1 Gbps	5 x 1 Gbps	9 x 1 Gbps	8 x 1 Gbps, 1 x 2.5 Gbps	17 x 1 Gbps, 1 x 2.5 Gbps
SFP Ports

		2 x 10G SFP+	2 x 10G SFP+	2 x 10G SFP+
PoE Out Ports

	2 x 802.3af (PoE)		8 x 802.3af (PoE), 802.3at (PoE+)	12 x 802.3af (PoE), 802.3at (PoE+), 802.3bt
Chipset

Arm Cortex-A57 Quad-Core at 1.7 GHz	Dual-Core® Cortex® A53 at 1.35 GHz	Quad ARM Cortex-A57 Core at 1.7 GHz	Quad-Core ARM® Cortex ® - A57 at 1.7 GHz	Quad-Core ARM® Cortex ® -A57 at 1.7 GHz
RAM

2 GB	2 GB	4 GB	4 GB	4 GB
Storage Memory

16 GB		16 GB	16 GB	16 GB
Max Power Consumption

26 W	19.37 W	33 W	50 W	532 W
Mounting Method

Tabletop	Tabletop	RackMount	RackMount	Wall Mount

	Dream Machine	Dream Router	Dream Machine Professional	Dream Machine Special Edition	Dream Wall
Wireless Standard	802.11a/b/g/n/ac, 802.11ac Wave2	802.11a/b/g/n/ac/ax, Wi-Fi 6			802.11a/b/g/n/ac/ax, Wi-Fi 6
MIMO	2.4GHz 2x2, 5GHz 4x4	2.4GHz 4x4, 5GHz 4x4			2.4GHz 2x2, 5GHz 4x4,
2.4GHz Radio Rate	300 Mbps	600 Mbps			300 Mbps
5GHz Radio Rate	1.7 Gbps	2.4 Gbps			2.4 Gbps
Wireless Antenna Frequency Range & Gain	2.4 - 2.4 (GHz) 3 (dBi), 5 - 5 (GHz) 4.5 (dBi)	2.4 - 2.4 (GHz) 3.4 (dBi), 5 - 5 (GHz) 4.3 (dBi)			2.4 - 2.4 (GHz) 5.9 (dBi), 5 - 5 (GHz) 6 (dBi)
Ethernet Ports	5 x 1 Gbps	5 x 1 Gbps	9 x 1 Gbps	8 x 1 Gbps, 1 x 2.5 Gbps	17 x 1 Gbps, 1 x 2.5 Gbps
SFP Ports			2 x 10G SFP+	2 x 10G SFP+	2 x 10G SFP+
PoE Out Ports		2 x 802.3af (PoE)		8 x 802.3af (PoE), 802.3at (PoE+)	12 x 802.3af (PoE), 802.3at (PoE+), 802.3bt
Chipset	Arm Cortex-A57 Quad-Core at 1.7 GHz	Dual-Core® Cortex® A53 at 1.35 GHz	Quad ARM Cortex-A57 Core at 1.7 GHz	Quad-Core ARM® Cortex ® - A57 at 1.7 GHz	Quad-Core ARM® Cortex ® -A57 at 1.7 GHz
RAM	2 GB	2 GB	4 GB	4 GB	4 GB
Storage Memory	16 GB		16 GB	16 GB	16 GB
Max Power Consumption	26 W	19.37 W	33 W	50 W	532 W
Mounting Method	Tabletop	Tabletop	RackMount	RackMount	Wall Mount

Technical Specs / Datasheet

Technical Specs / Datasheet - Ubiquiti UniFi Dream Machine

Quick Start Guide - Ubiquiti UniFi Dream Machine

Compatible products

Specifications

Wireless Network

Standards

802.11a/b/g/n/ac, 802.11ac Wave2

MIMO

2.4GHz 2x2, 5GHz 4x4

2.4GHz Radio Rate

300 Mbps

5GHz Radio Rate

1.7 Gbps

Antenna

Antenna Design

Omni

Wireless Antenna Frequency Range & Gain

2.4 - 2.4 (GHz) 3 (dBi), 5 - 5 (GHz) 4.5 (dBi)

Interfaces

RJ45 Ports

(5) 1 Gbps

System Specification

Chipset

Arm Cortex-A57 Quad-Core at 1.7 GHz

RAM

2 GB

Storage Memory

16 GB

Power

Power Method

AC/DC Adapter

Power Supply

Internal PSU

Supported Input Voltage

100 - 240 V AC

Max Power Consumption

26 W

Physical Parameters

Color

White

Dimensions

Ø110 x 184.2 mm

Weight

1.05 kg

Operating Temperature

-10 °C to 45 °C

Environment

Indoor

Mounting Method

Tabletop

Form Factor

Desktop
