Ubiquiti UniFi Magnetic Lock 540 kg – Secure Access Control for Doors

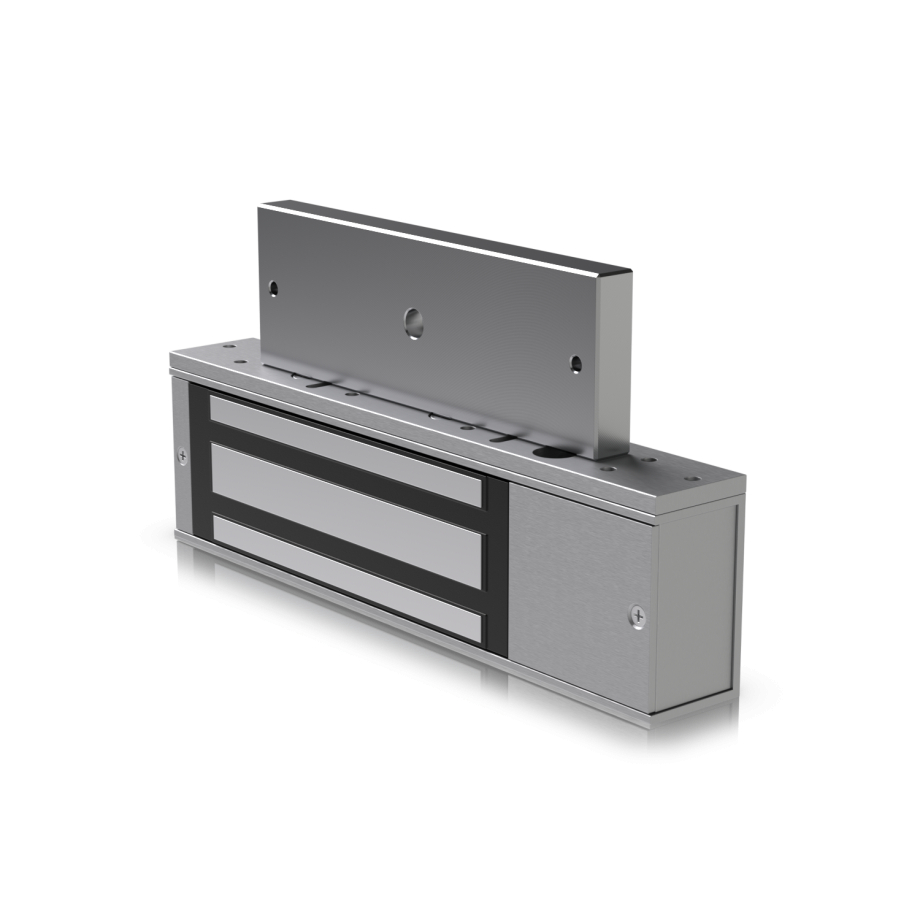

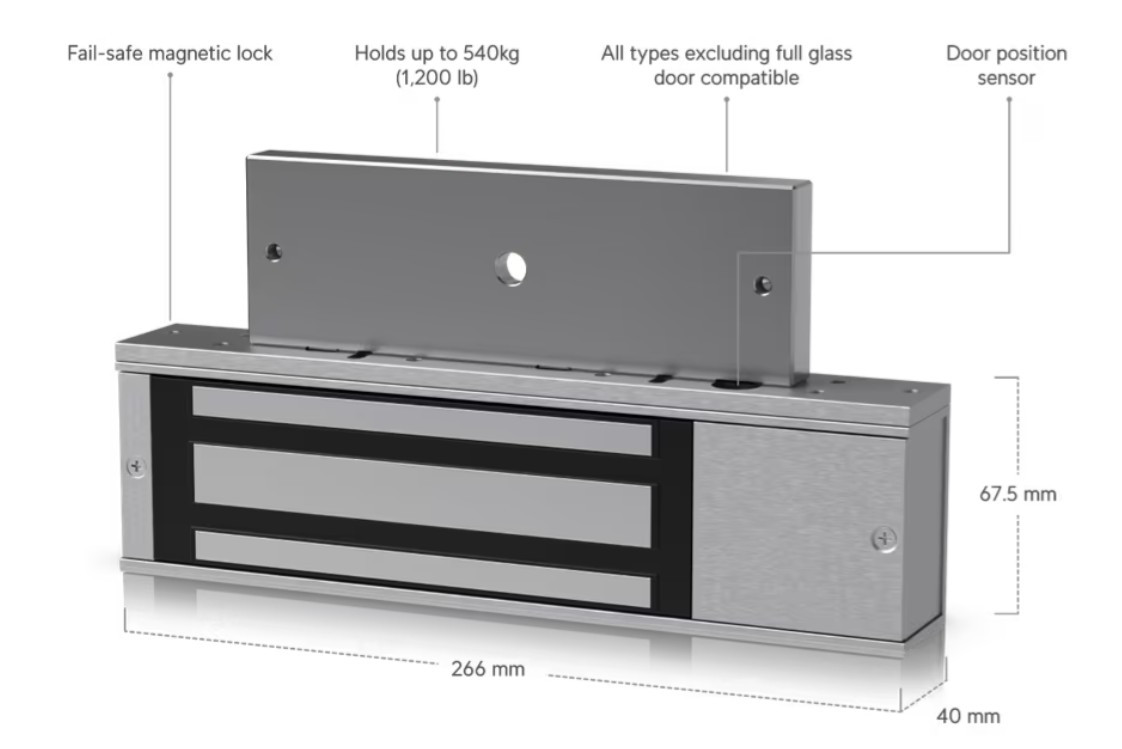

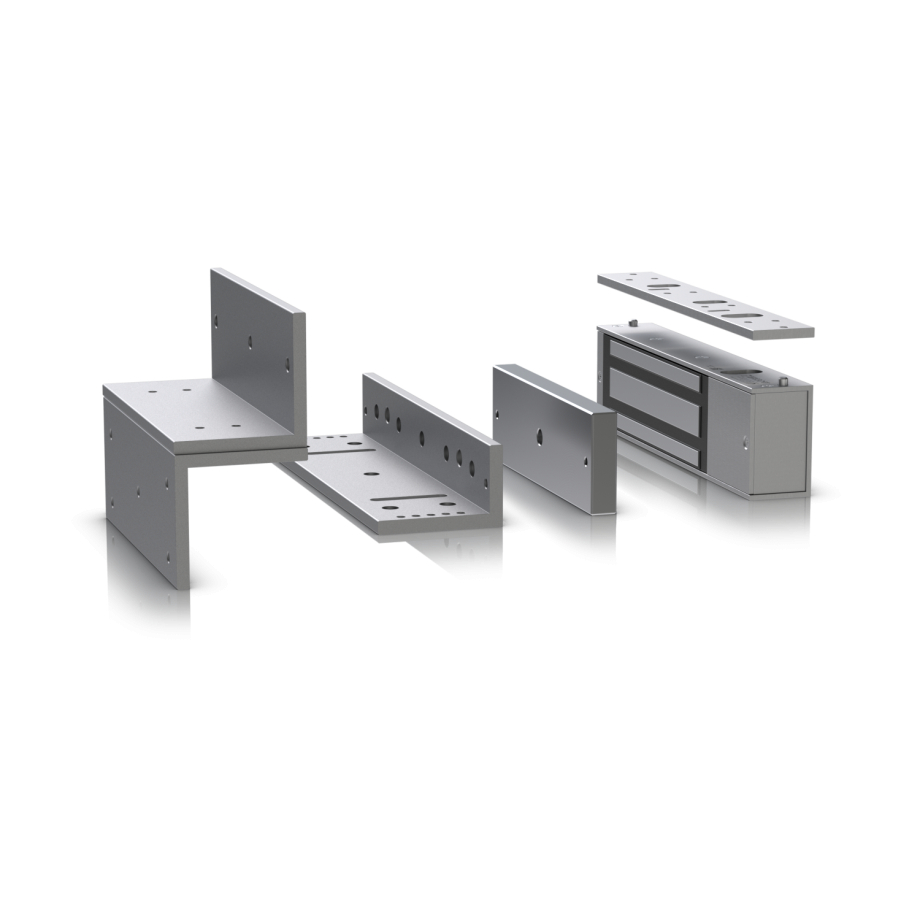

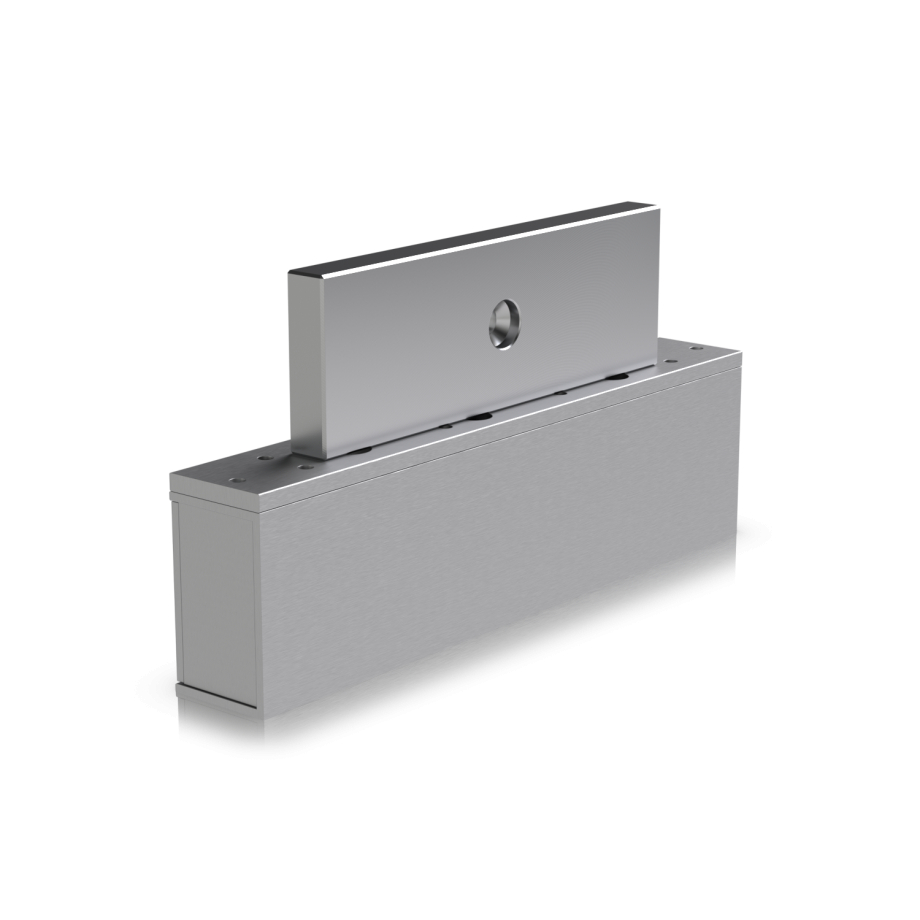

The Ubiquiti UniFi Magnetic Lock is designed to deliver strong, reliable door security with a holding force of up to 540 kg. This makes it suitable for offices, commercial spaces, and secure facilities where dependable access control is essential. Built as a fail-safe lock, it automatically unlocks if power is cut, allowing safe exit during emergencies such as power outages or fire alarms. The lock is compatible with various types of doors, including wooden and metal doors (not suitable for full glass doors). For easy installation, the kit includes several brackets: an L-shaped bracket for outward-opening doors with thicknesses up to 42 mm, and a Z-shaped bracket for inward-opening doors. A durable aluminum housing and steel armature plate ensure long-term stability, while integrated LED indicators (red and green) provide clear visual confirmation of lock status at a glance.

The UniFi Magnetic Lock is engineered for smooth integration into the UniFi Access ecosystem. It operates on 12 V DC power and requires about 500 mA (±10%), keeping power consumption efficient for continuous daily operation. Installation is straightforward thanks to its four clear connection terminals: Lock 12 V/NC, Lock 12 V/COM, DPS+, and DPS–, which connect directly to the UniFi Door Hub without the need for complex wiring. Compact yet durable, it can operate reliably in temperatures from –10 °C to 50 °C and withstand humidity levels up to 90% (non-condensing). The lock is NDAA-compliant and certified under CE, FCC, and IC standards, guaranteeing safe use in global projects. With robust construction, flexible mounting options, clear LED status feedback, and international compliance, the UniFi Magnetic Lock provides a secure and professional solution for enterprise, retail, and residential access control needs.
