Ubiquiti Device Bridge IoT

The Ubiquiti Device Bridge IoT is an ultra compact wireless solution designed to connect IoT devices to a network without the need for direct cabling. Engineered for flexibility and simplicity, it enables reliable wireless bridging for devices that require stable connectivity in environments where traditional wiring is not practical. Built with support for WiFi 4 technology and two spatial streams, the device provides efficient data transmission over the 2.4 GHz band. It delivers a maximum data rate of up to 300 Mbps, ensuring sufficient bandwidth for a wide range of IoT applications such as sensors, controllers, and monitoring devices.

The integrated UniFi WiFi Auto Link functionality simplifies setup by automatically connecting the bridge to compatible UniFi access points, reducing configuration time and improving deployment efficiency. This makes it particularly suitable for enterprise environments where large numbers of devices need to be connected quickly and reliably. Its compact dimensions allow installation in tight spaces, making it easy to integrate into existing infrastructure. The device is designed to operate as a bridge between wired and wireless networks, providing a practical solution for extending connectivity to devices that lack built in wireless capabilities.

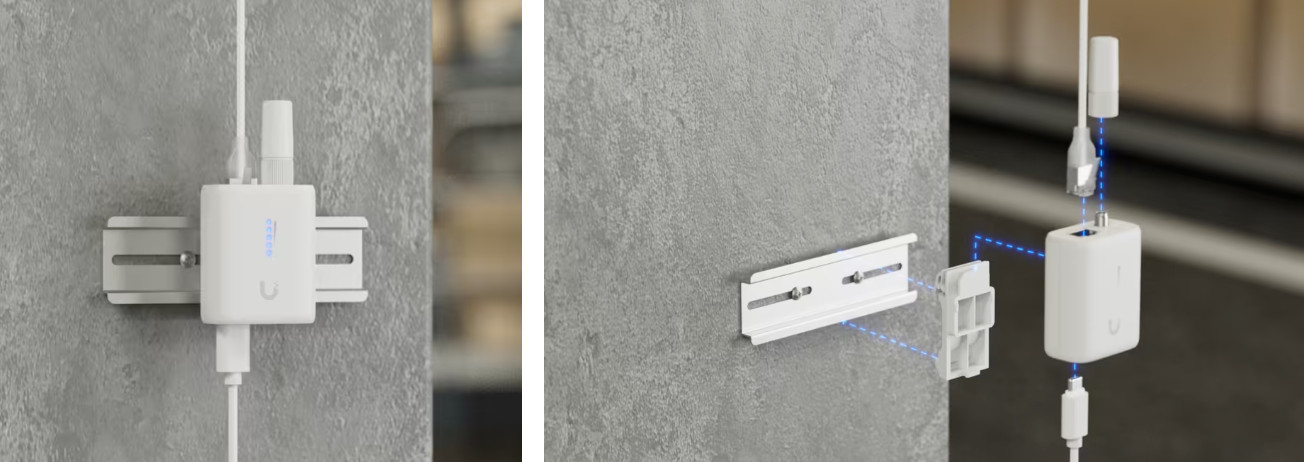

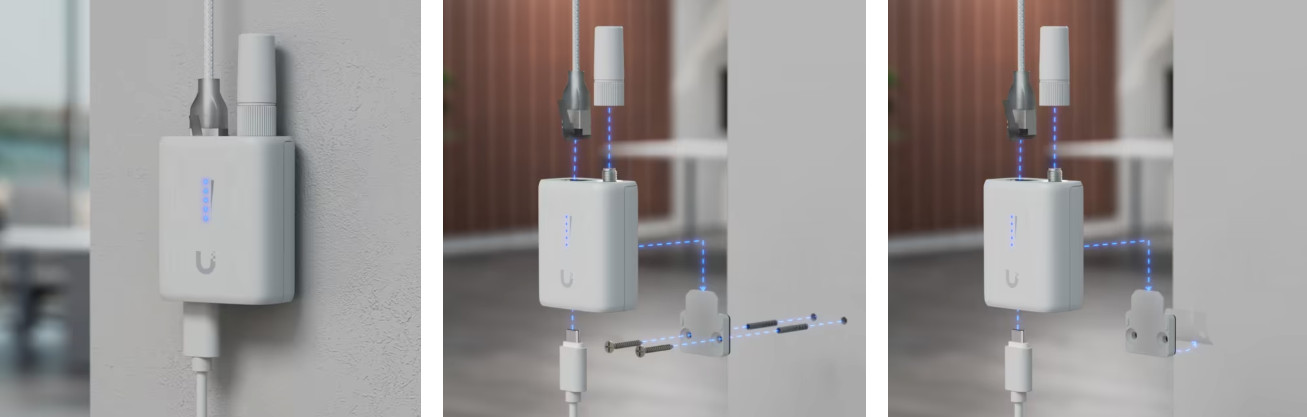

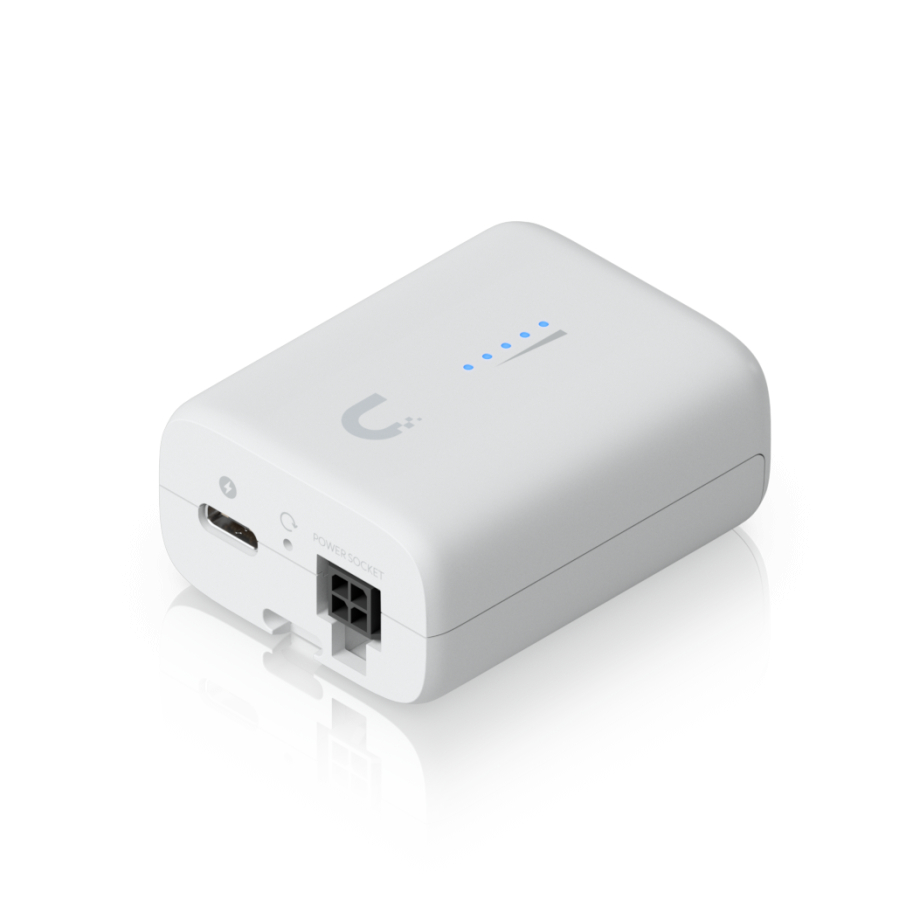

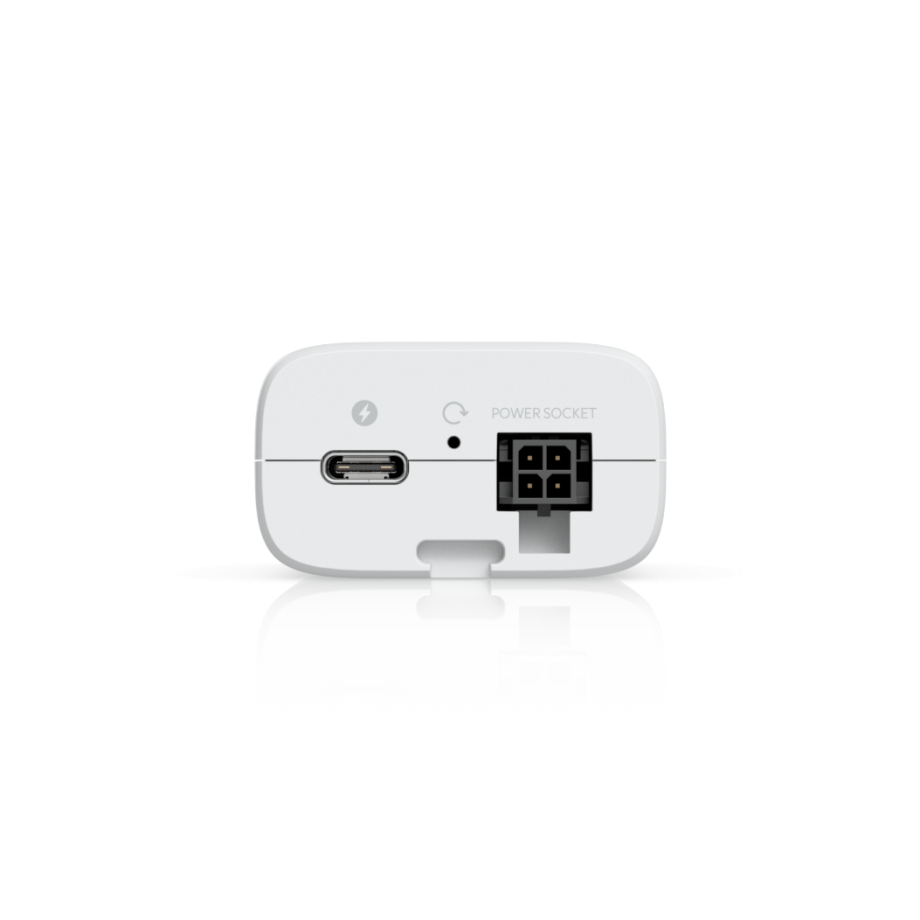

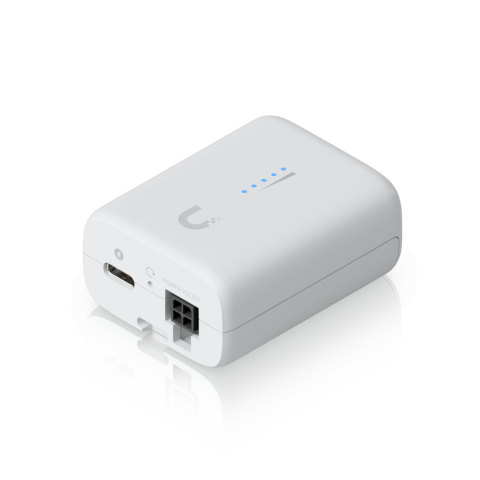

The Device Bridge IoT is designed for flexible deployment across a wide range of environments. It supports multiple mounting options, including wall mounting and DIN rail installation, allowing it to be integrated into industrial systems, control cabinets, or standard indoor setups. An included mounting kit simplifies installation and ensures stable positioning. Powering the device is equally flexible, with support for USB Type C input at 5V DC and a 4 pin DC socket supporting 9 to 30V DC. This allows the bridge to be used in various power configurations, including integration with existing power systems or direct connection to USB power sources.

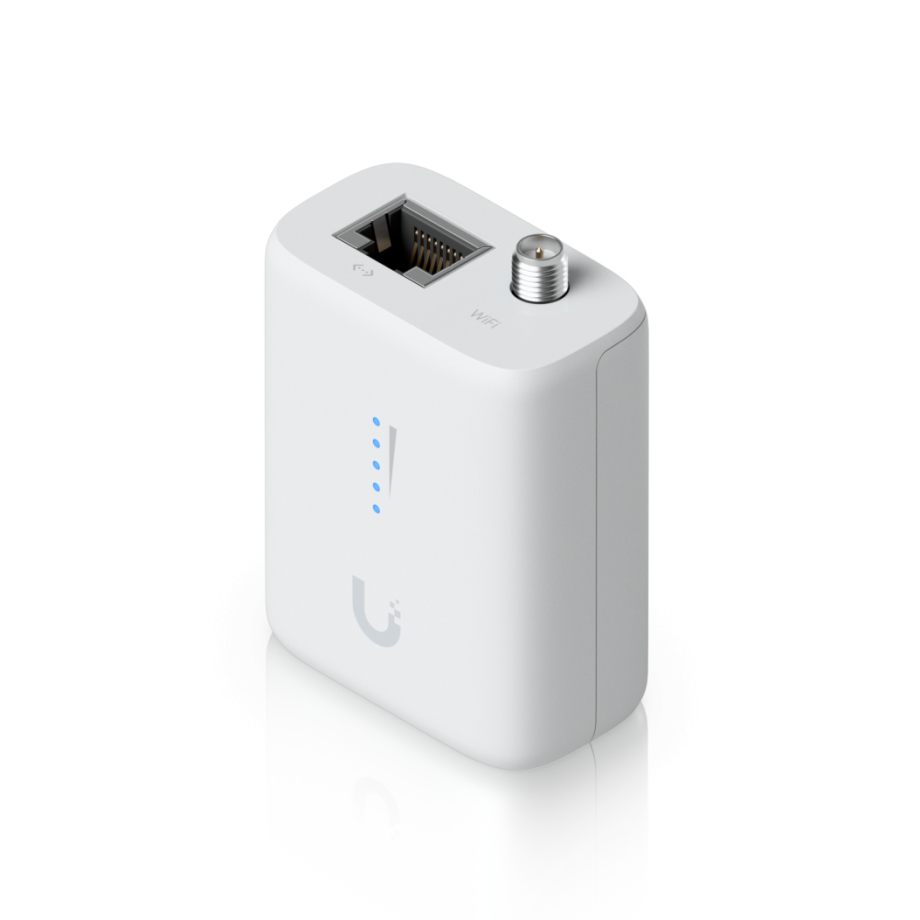

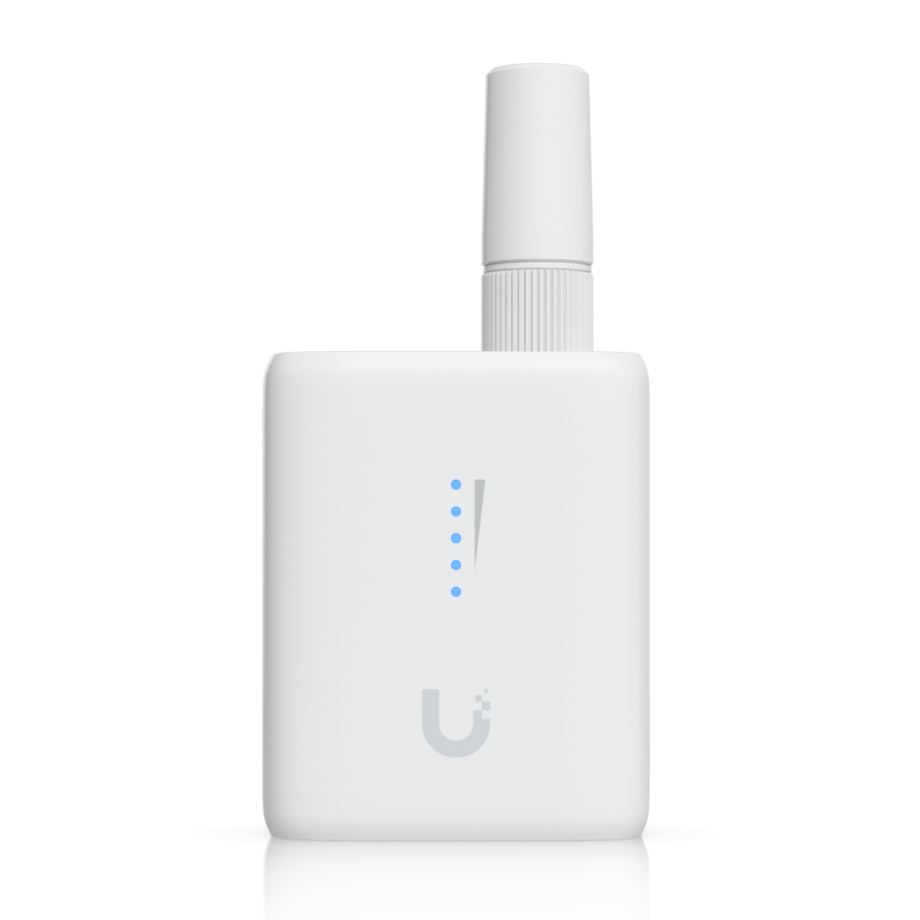

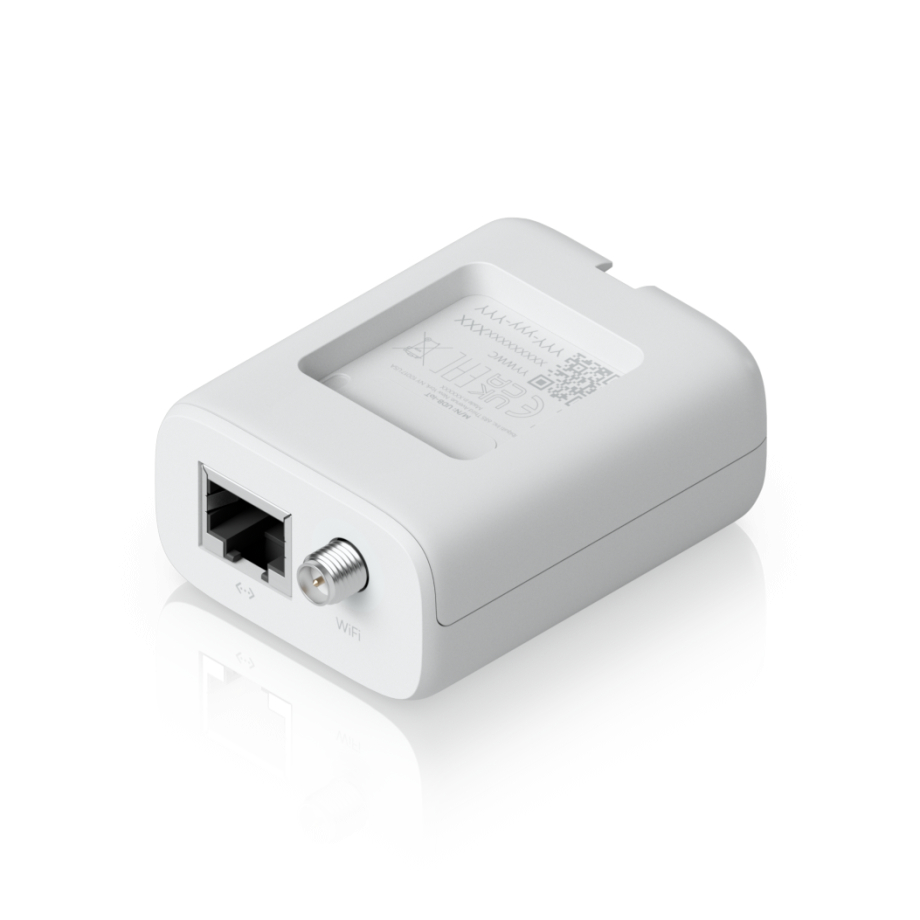

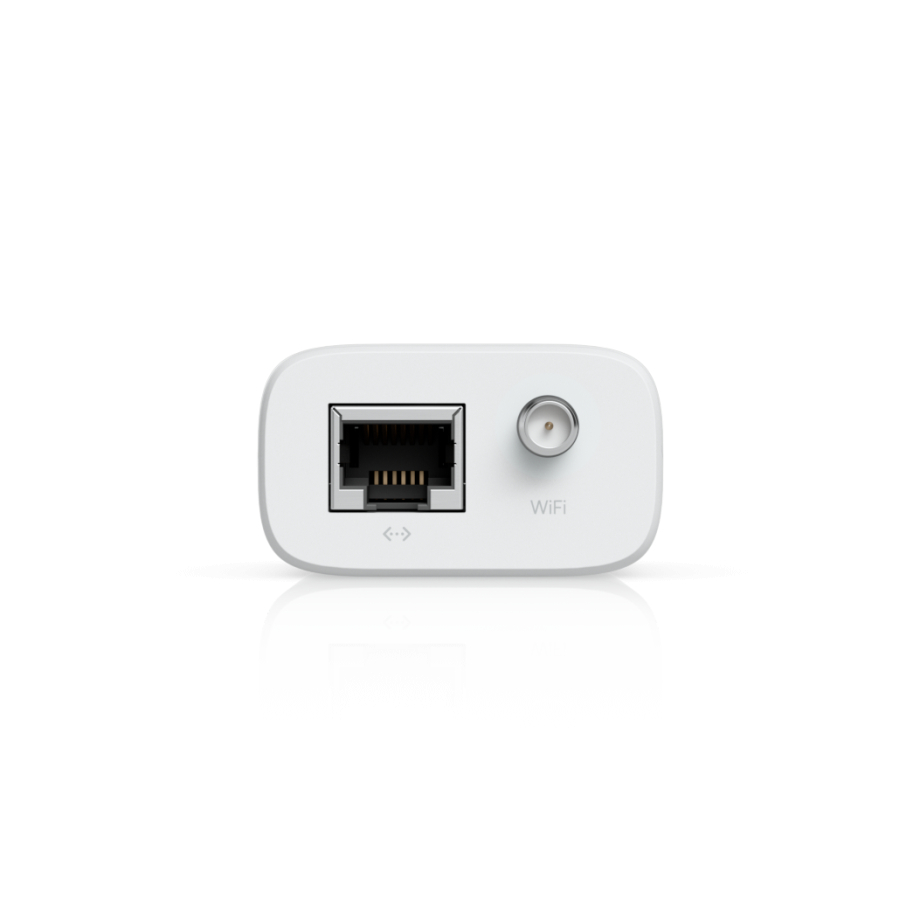

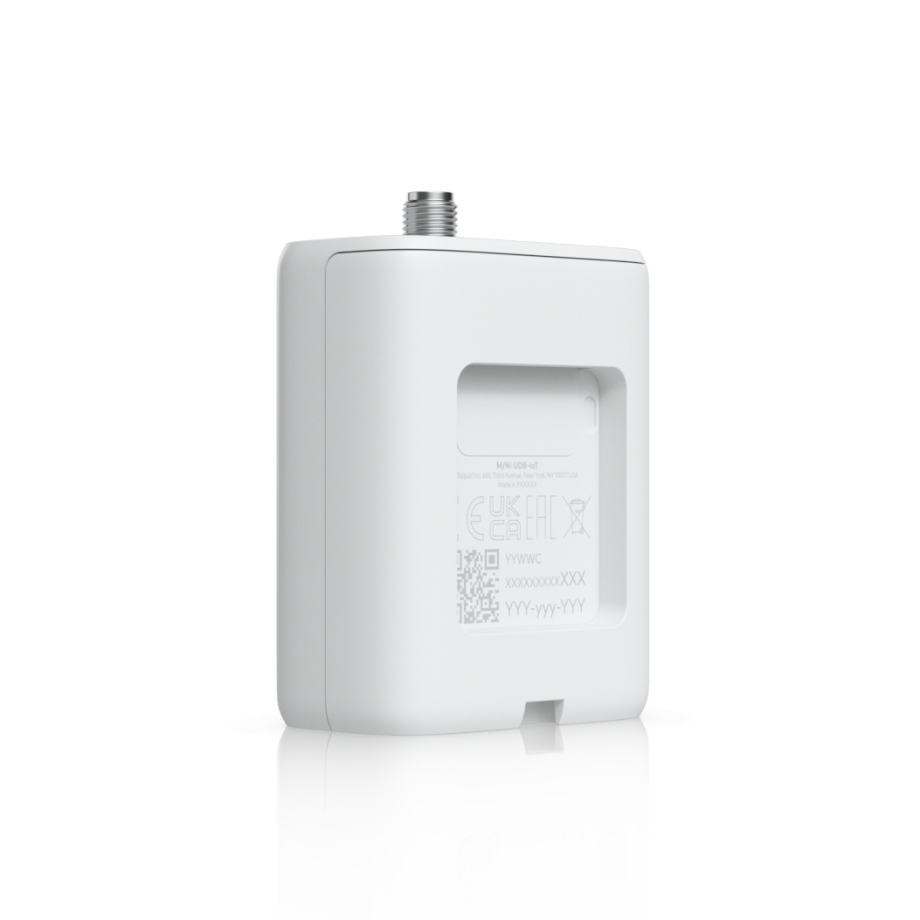

The device features both an internal antenna and an RP SMA connector for an external omni antenna, providing options to optimize signal coverage depending on the environment. With antenna gains of up to 4 dBi for the internal antenna, it ensures stable wireless performance across typical deployment scenarios. A standard 10 or 100 Mbps Ethernet port allows wired devices to connect seamlessly to the wireless network, bridging the gap between legacy equipment and modern infrastructure. This versatility makes the Device Bridge IoT suitable for a wide range of IoT and industrial applications.

The Ubiquiti Device Bridge IoT is built with efficiency and reliability in mind, making it suitable for continuous operation in professional environments. It features low power consumption of up to 2.3 W, allowing energy efficient deployment without adding significant load to power systems. The device supports secure wireless communication using WPA2 AES encryption, ensuring that data transmitted between devices remains protected. Its wireless performance is enhanced by 2 x 2 MIMO technology and adjustable channel bandwidths of 20 or 40 MHz, providing stable and consistent connectivity.

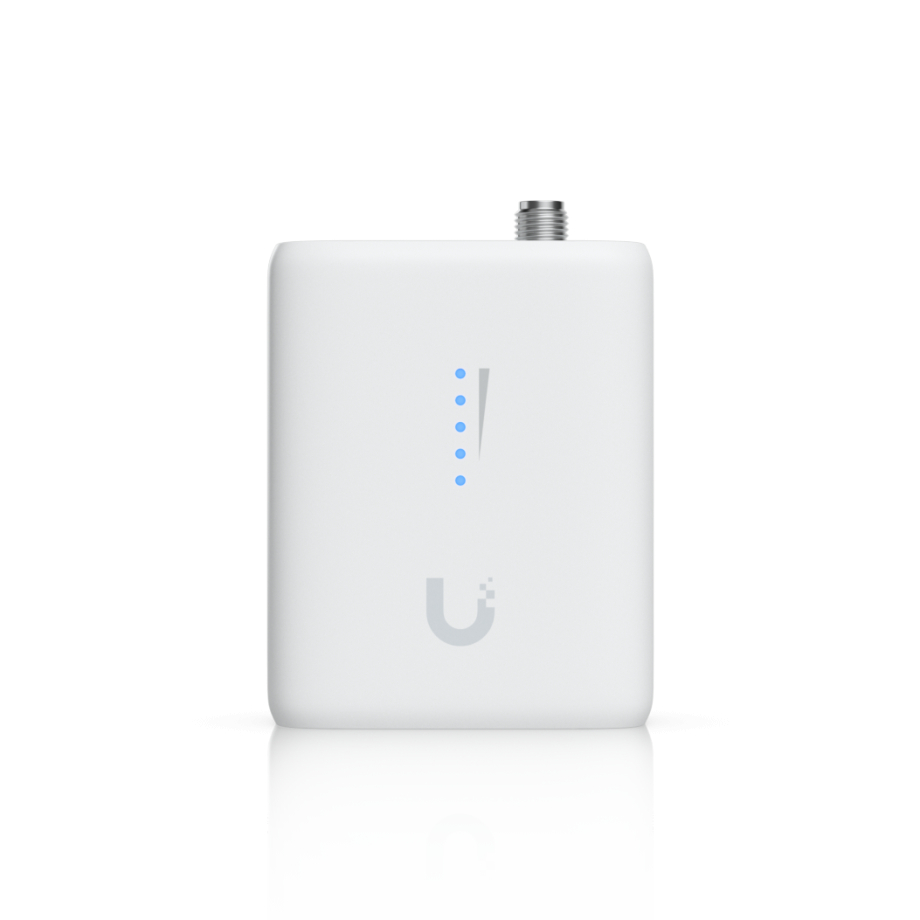

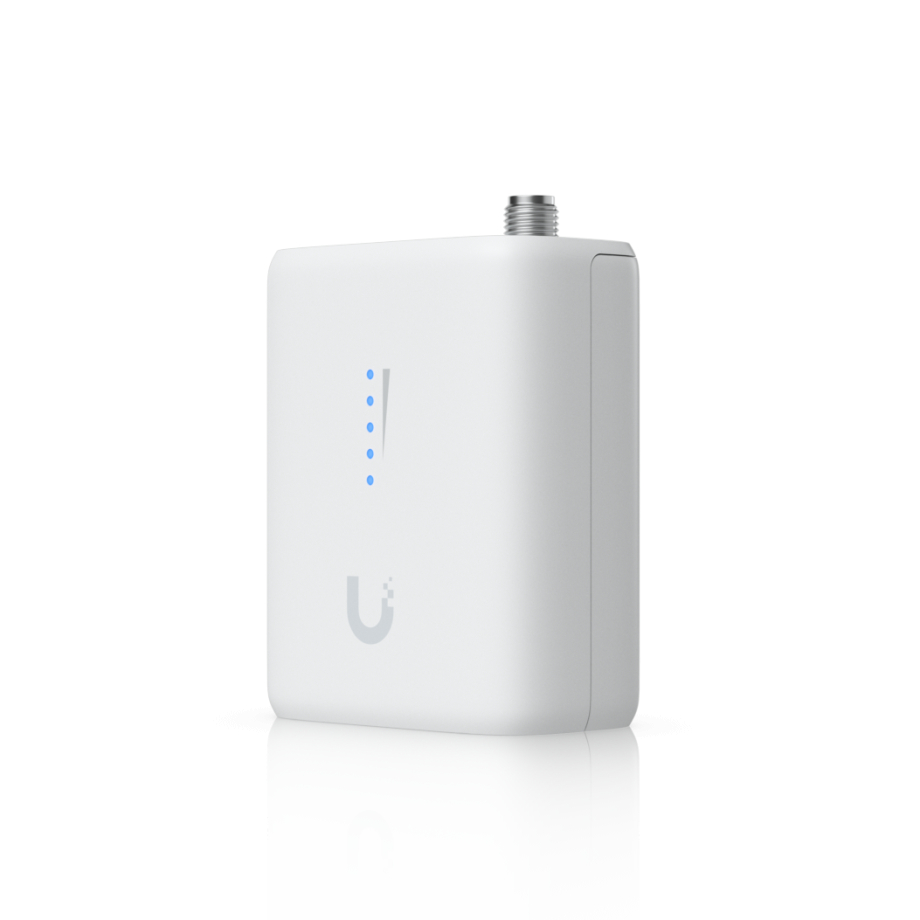

For monitoring and control, the unit includes LED indicators that display system status and signal strength, allowing users to quickly assess connectivity conditions. A factory reset button is also included for easy system recovery or reconfiguration. Constructed from durable polycarbonate materials, the enclosure provides a balance between strength and lightweight design. The device operates reliably within a temperature range of -10 to 50° C and supports humidity levels from 5 to 95% noncondensing, making it suitable for various indoor and semi industrial environments. With its combination of compact design, efficient performance, and robust construction, the Device Bridge IoT offers a dependable solution for modern IoT connectivity needs.
