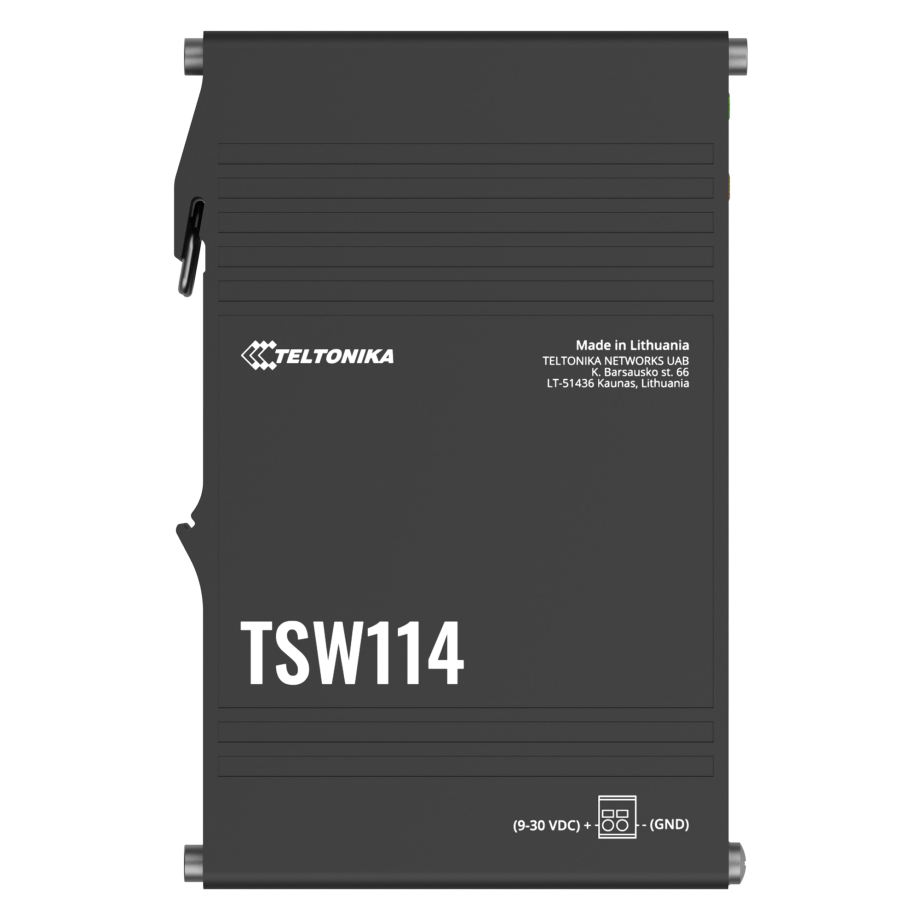

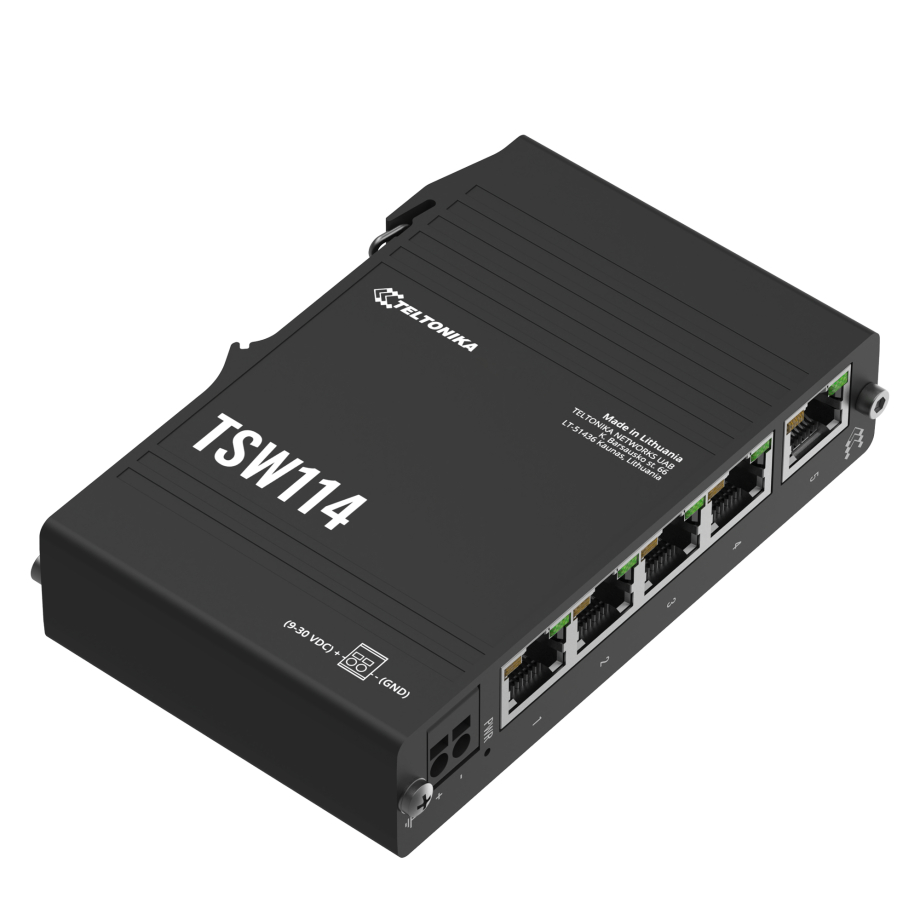

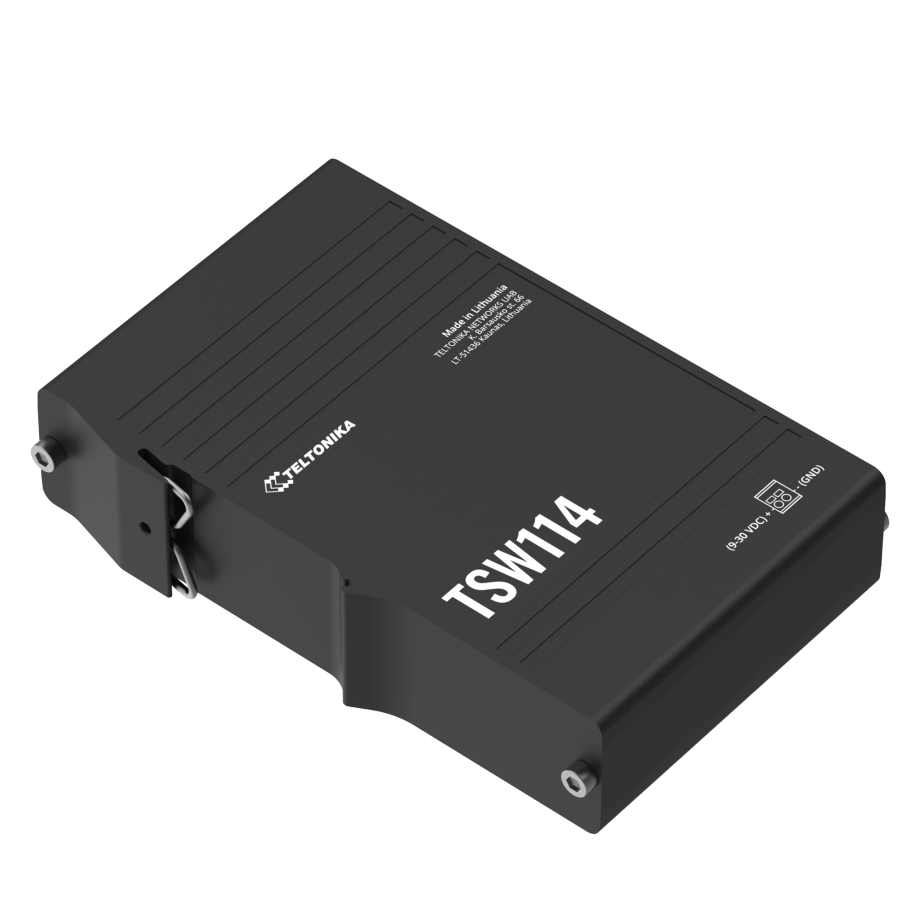

Teltonika TSW114 Gigabit Ethernet Switch

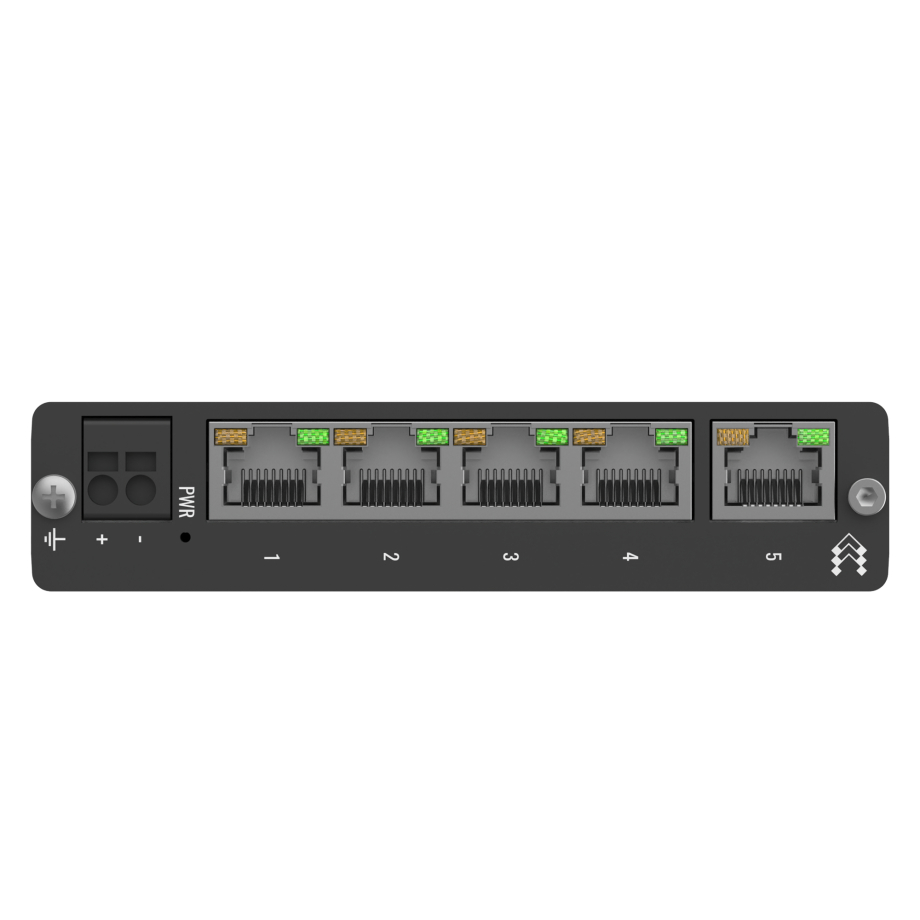

The Teltonika TSW114 is a compact unmanaged Gigabit Ethernet switch designed to deliver fast and reliable data transfer in demanding environments. It is equipped with five RJ45 Gigabit Ethernet ports, each supporting speeds of 10/100/1000 Mbps and featuring auto MDI/MDIX, which eliminates the need for crossover cables and simplifies deployment. The device provides a non-blocking switching capacity of 10 Gbps, ensuring smooth communication even when all ports are fully loaded. To enhance performance, it includes a 128 KB packet buffer and a MAC address table capable of storing up to 2000 entries, enabling efficient management of connected devices. Jumbo frame support up to 9216 bytes makes the switch particularly effective for handling heavy data flows, such as HD video surveillance, telemetry, or IoT system traffic. With this performance profile, the TSW114 ensures minimal latency, stable throughput, and reliable connectivity in industrial networks.

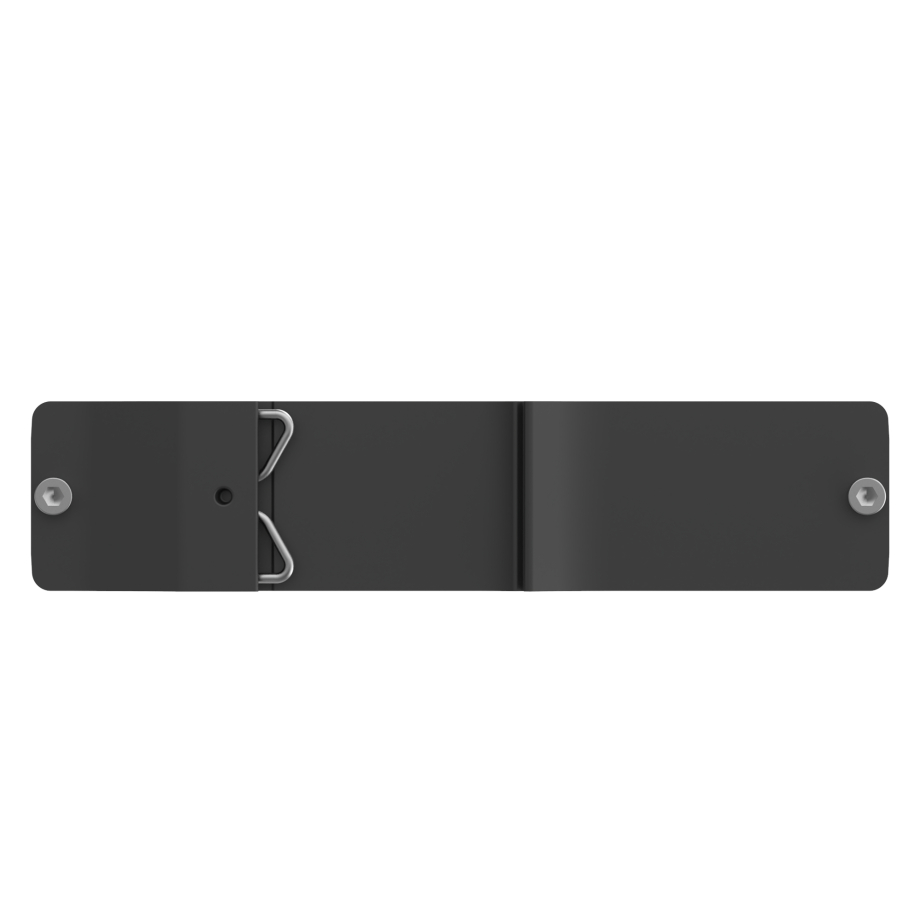

The TSW114 offers versatile and practical power options, making it easy to adapt to different industrial setups. The switch can be powered via a 2-pin industrial DC socket with a wide input voltage range of 9–30 VDC, ensuring compatibility with common power systems. Alternatively, passive PoE Mode B (9–30 VDC) is supported through its LAN port, simplifying installation by combining data and power in a single cable when required. This flexibility makes the device suitable for both new and existing infrastructures. Power consumption is highly efficient, with around 0.3 W in idle mode and up to 2.3 W at maximum load, which helps keep operating costs low. The unit is equipped with an integrated DIN-rail bracket, allowing quick and secure installation in control cabinets, server racks, or industrial enclosures. Additional wall or flat surface mounting options are sold separately, providing freedom to adapt the switch to almost any workspace.

The Teltonika TSW114 combines industrial durability with a space-saving form factor, making it easy to integrate into modern networks. Its anodized aluminum housing provides reliable physical protection, while the device itself is compact, measuring only 113.1 × 27.4 × 80.5 mm and weighing 174 g. The switch features IP30-rated casing, offering protection against dust and accidental contact, which is suitable for indoor industrial environments. Reliability is further enhanced by its ability to operate in wide environmental conditions, withstanding temperatures from –40 °C to +75 °C and humidity levels up to 90% (non-condensing). Monitoring and diagnostics are straightforward thanks to a clear system of indicators, including one LED for power status and two LEDs per Ethernet port for connection and activity. With multiple international certifications (CE, FCC, UKCA, RCM, CB, IC), the TSW114 guarantees compliance, safety, and suitability for global deployments.
