QuPS4 Outdoor 4-Pin Power Socket & Plug for QuWireless Antennas and QuRouter

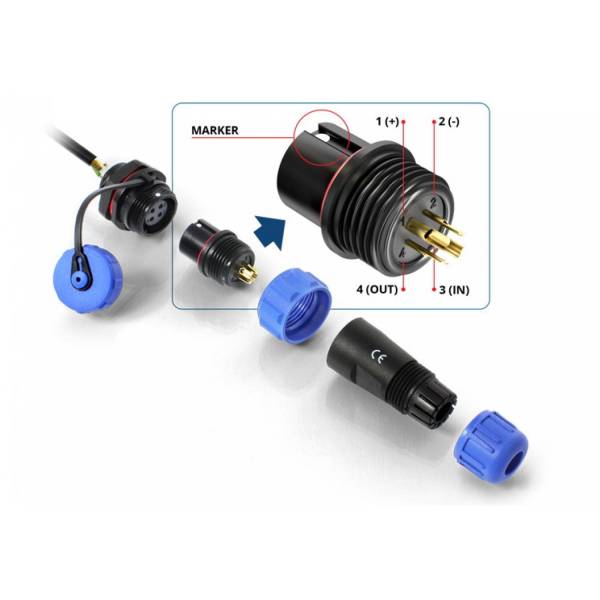

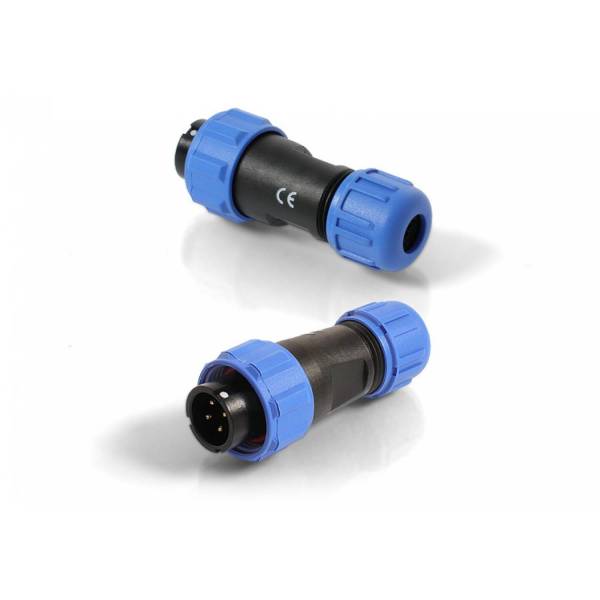

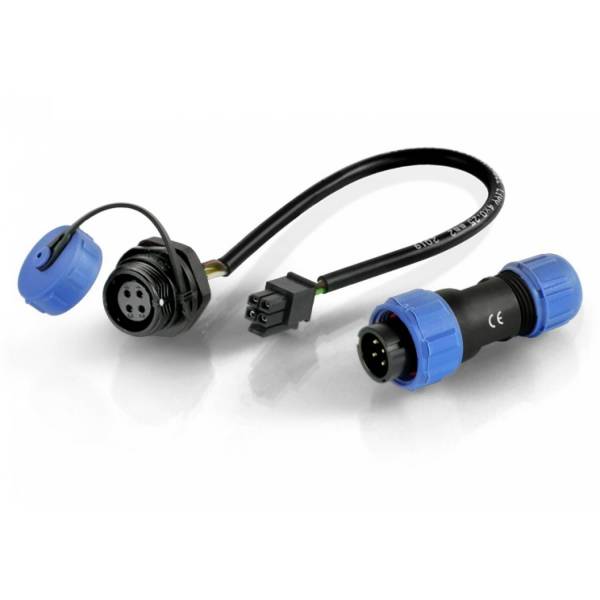

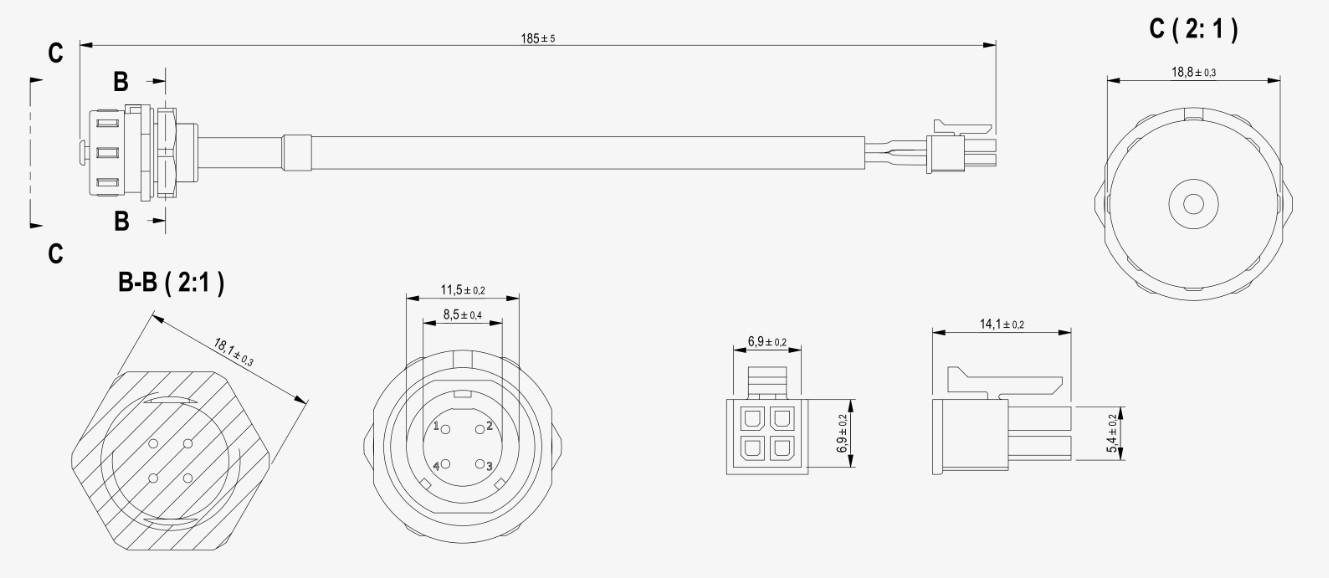

QuWireless QuPS4 is a waterproof four-pin outdoor power socket and plug set for QuWireless antennas when Passive PoE powering is not used. Instead, the set enables a direct connection to a DC power source while carrying both power and data through the same four-pin interface. The pinout assigns separate connections for power, ground, data input, and data output, giving the assembly a clearly defined role within the antenna installation. QuPS4 combines an SP1310/P4I-N four-pin connector with a Micro-Fit 3.0 four-pin connector in a 2x2 arrangement, linked by a 150 mm four-core stranded cable. This configuration provides the required connection path between the external power interface and the internal connector without relying on the antenna’s Passive PoE powering feature.

The outdoor connector is protected to IP68 and operates across a temperature range of −25 °C to +70 °C, supporting installations exposed to varying environmental conditions. Its electrical limits are specified at up to 5 A and 200 V, while the main connector is rated for a minimum of 500 mating cycles and the Molex connector for at least 250. The cable uses 0.5 mm² stranded conductors, and the connector housing carries a UL94V-0 flammability classification. Together, these characteristics define QuPS4 as a dedicated outdoor connection set for direct DC power and four-pin power/data integration with QuWireless antennas.
