Product name

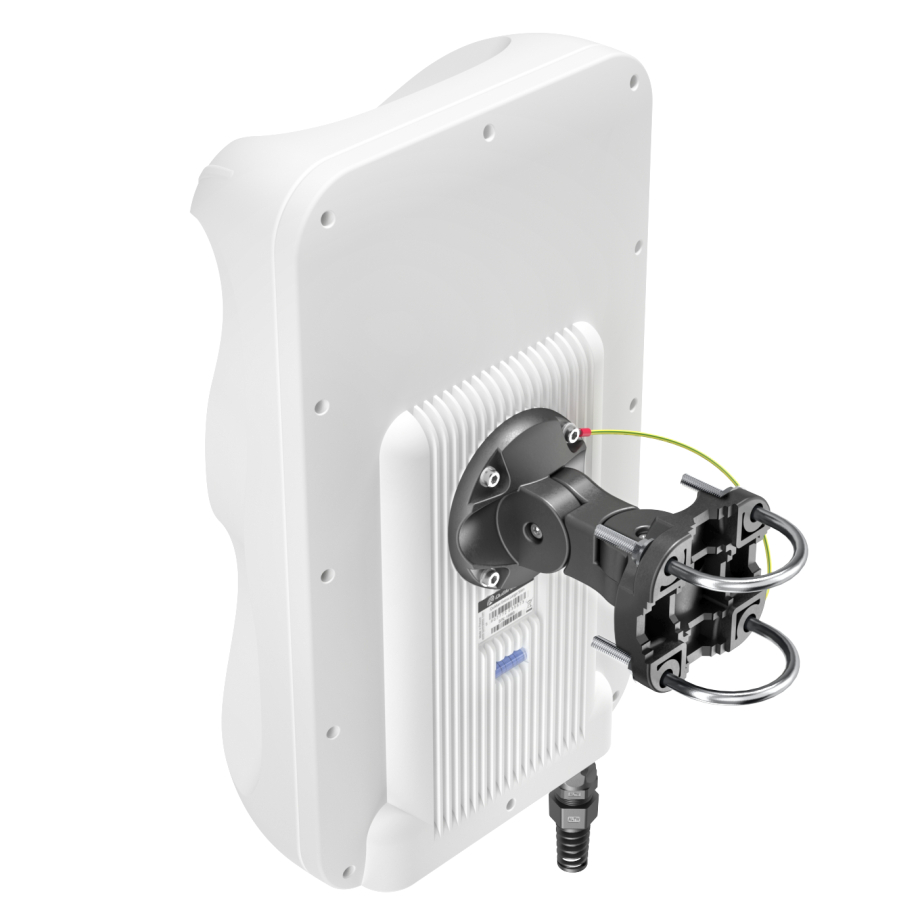

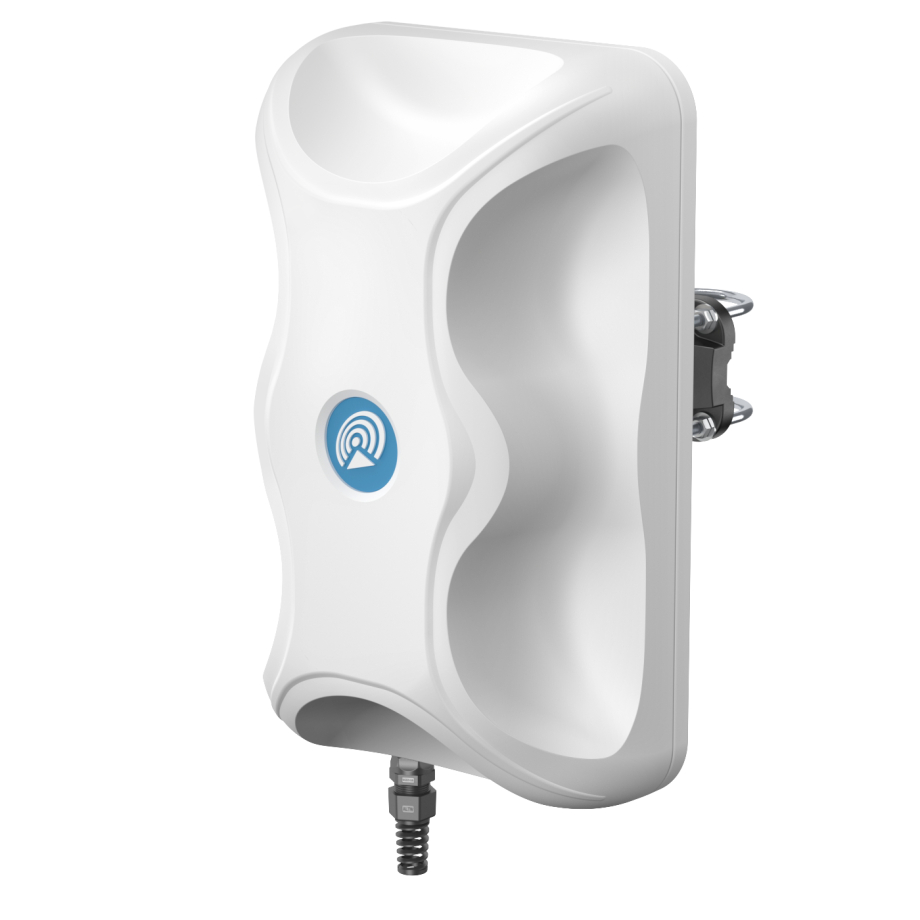

QuMax Antenna for TRB501
Warranty
?
12 months
Manufacturer part number
A501M
QuMax Antenna for TRB501
out of stock
?
160.84 €
160.84 €
Expected arrival?
?
arrival date unknown
%20-%20https://sketch.com%20--%3e%3ctitle%3eprofile_ico%3c/title%3e%3cdesc%3eCreated%20with%20Sketch.%3c/desc%3e%3cg%20id='elements'%20stroke='none'%20stroke-width='1'%20fill='none'%20fill-rule='evenodd'%3e%3cg%20id='svg_elements'%20transform='translate(-449.000000,%20-152.000000)'%20fill='%23131515'%3e%3cpath%20d='M459.293251,164.029275%20C464.901425,164.029275%20469.293251,166.657751%20469.293251,170.012711%20L469.293251,170.012711%20L469.293251,171.011748%20C469.293251,171.556855%20468.849156,172%20468.302879,172%20C467.756603,172%20467.312508,171.556855%20467.312508,171.011748%20L467.312508,171.011748%20L467.312508,170.012711%20C467.312508,167.841105%20463.640863,166.00676%20459.293251,166.00676%20C454.946621,166.00676%20451.273993,167.841105%20451.273993,170.012711%20L451.273993,170.012711%20L451.273993,171.011748%20C451.273993,171.556855%20450.829898,172%20450.283622,172%20C449.738328,172%20449.293251,171.556855%20449.293251,171.011748%20L449.293251,171.011748%20L449.293251,170.012711%20C449.293251,166.657751%20453.686059,164.029275%20459.293251,164.029275%20Z%20M458.603921,152.053677%20C459.091246,151.982108%20459.584467,151.982108%20460.068845,152.053677%20C461.136835,152.211523%20462.104609,152.697806%20462.869002,153.459584%20C463.631431,154.220381%20464.118757,155.187064%20464.276941,156.252769%20C464.680753,158.970463%20462.793349,161.510702%20460.068845,161.91365%20C459.822235,161.949926%20459.572677,161.968553%20459.327049,161.968553%20C458.255129,161.968553%20457.229387,161.629332%20456.360847,160.986184%20C455.28991,160.194013%20454.592327,159.032228%20454.395825,157.714559%20C453.992013,154.995885%20455.879417,152.456625%20458.603921,152.053677%20Z%20M459.336874,153.976259%20C459.189498,153.976259%20459.041138,153.987044%20458.894744,154.008613%20C458.099892,154.126262%20457.397397,154.546857%20456.916949,155.192947%20C456.437483,155.839036%20456.238034,156.631207%20456.355935,157.425338%20C456.473836,158.219469%20456.894351,158.920462%20457.541826,159.398901%20C458.187336,159.877341%20458.978258,160.074403%20459.779004,159.958715%20C461.422746,159.715574%20462.562459,158.183194%20462.317814,156.54297%20C462.122294,155.222359%20461.101465,154.204695%20459.779004,154.008613%20C459.633593,153.987044%20459.484251,153.976259%20459.336874,153.976259%20Z'%20id='profile_ico'%3e%3c/path%3e%3c/g%3e%3c/g%3e%3c/svg%3e){kind=small}
Get special price
Available alternatives
Detailed description
Technical Specs / Datasheet
Specifications
Antenna
Antenna Design
Panel
Mobile Antenna Frequency Range & Gain
0.617 - 0.96 (GHz) 6 (dBi), 1.7 - 2.7 (GHz) 7 (dBi), 3.3 - 4.6 (GHz) 7 (dBi), 4.7 - 6.0 (GHz) 5.5 (dBi)
Mobile Antenna Gain
6 dBi, 7 dBi, 7 dBi, 5.5 dBi
VSWR
< 4
Impedance
50 Ω
Physical Parameters
Material
Aluminium, ABS Plastic, Fiberglass, Polytetrafluoroethylene
Ingress Protection Code
IP68
Dimensions
486.0 x 292.2 x 175.4 mm
Weight
2.8 kg
Operating Temperature
-40 °C to 80 °C
Environment
Outdoor
Mounting Method
